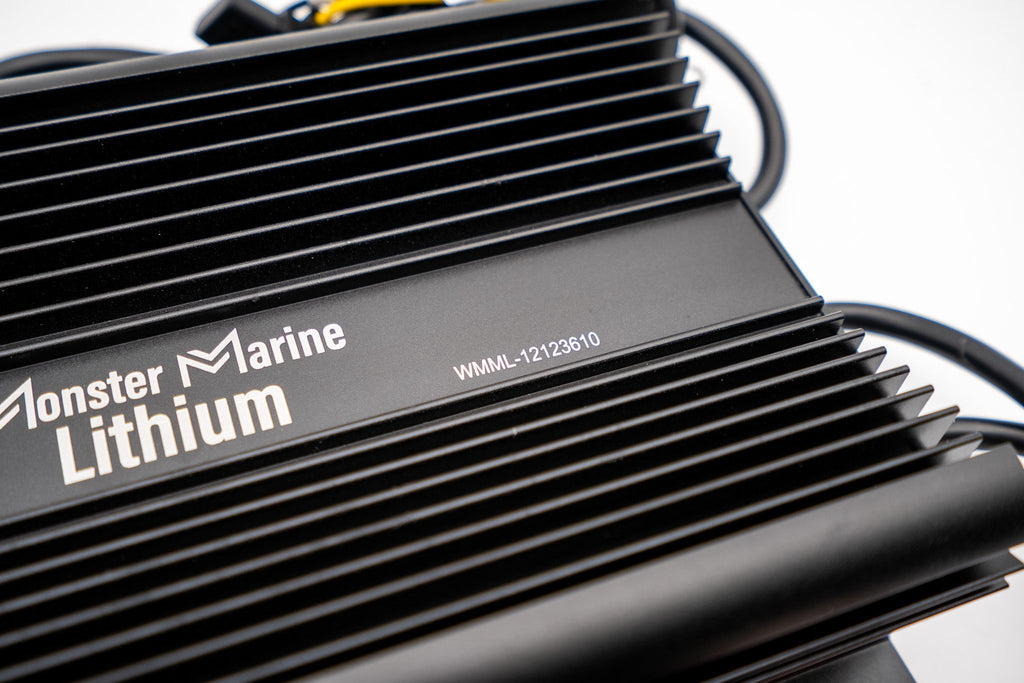

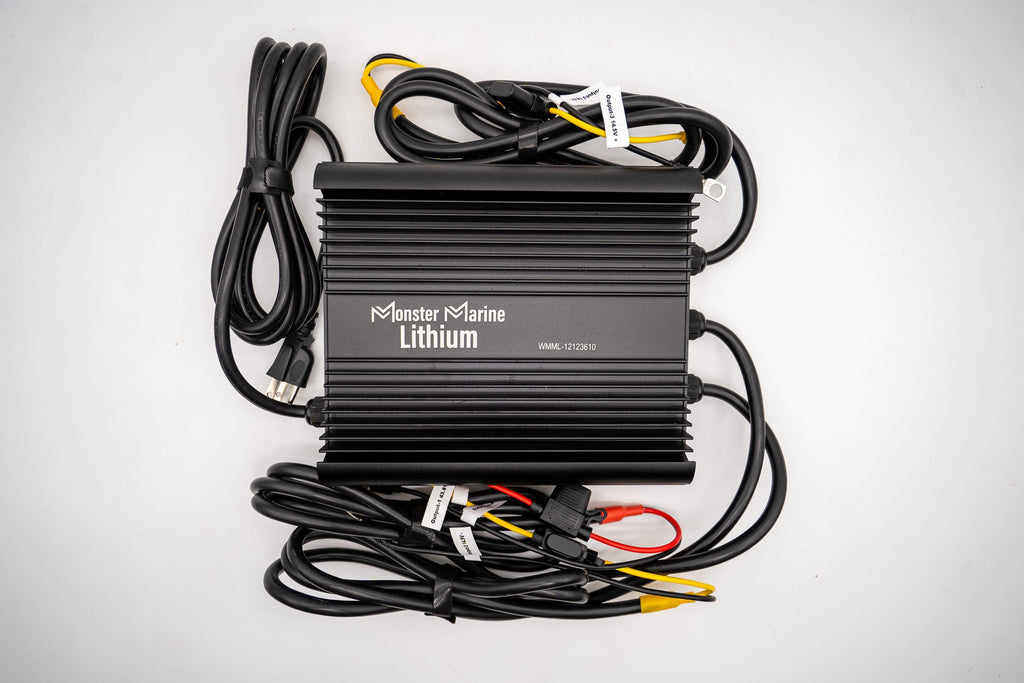

This is our custom made Triple bank lithium marine waterproof charger. It has Bank 1 for 36v lithium batteries and Bank 2 & 3 are for 12v batteries! Our new ACD (automatic charging detection) system allows our charger to work with whatever 12v batteries you have Lead/AGM or Lithium batteries. Even when running 2 of our 36v batteries in parallel, this one charger will charge both at the same time! This charger is 100% waterproof and can be mounted onboard your boat as you normally would with marine battery chargers!
This charger has automatic built in low voltage cut off charging activation so there is no pushing of a button or anything just plug it in. This means when you run your lithium batteries all the way down they will reach what is called low voltage cut off, when this is reached the BMS (battery management system) basically turns the battery off at this point showing zero to little voltage on the post.
Specifications:
Size:
L 8.75 x W 8.75 x H 2.25 inches
Weight:
16lbs

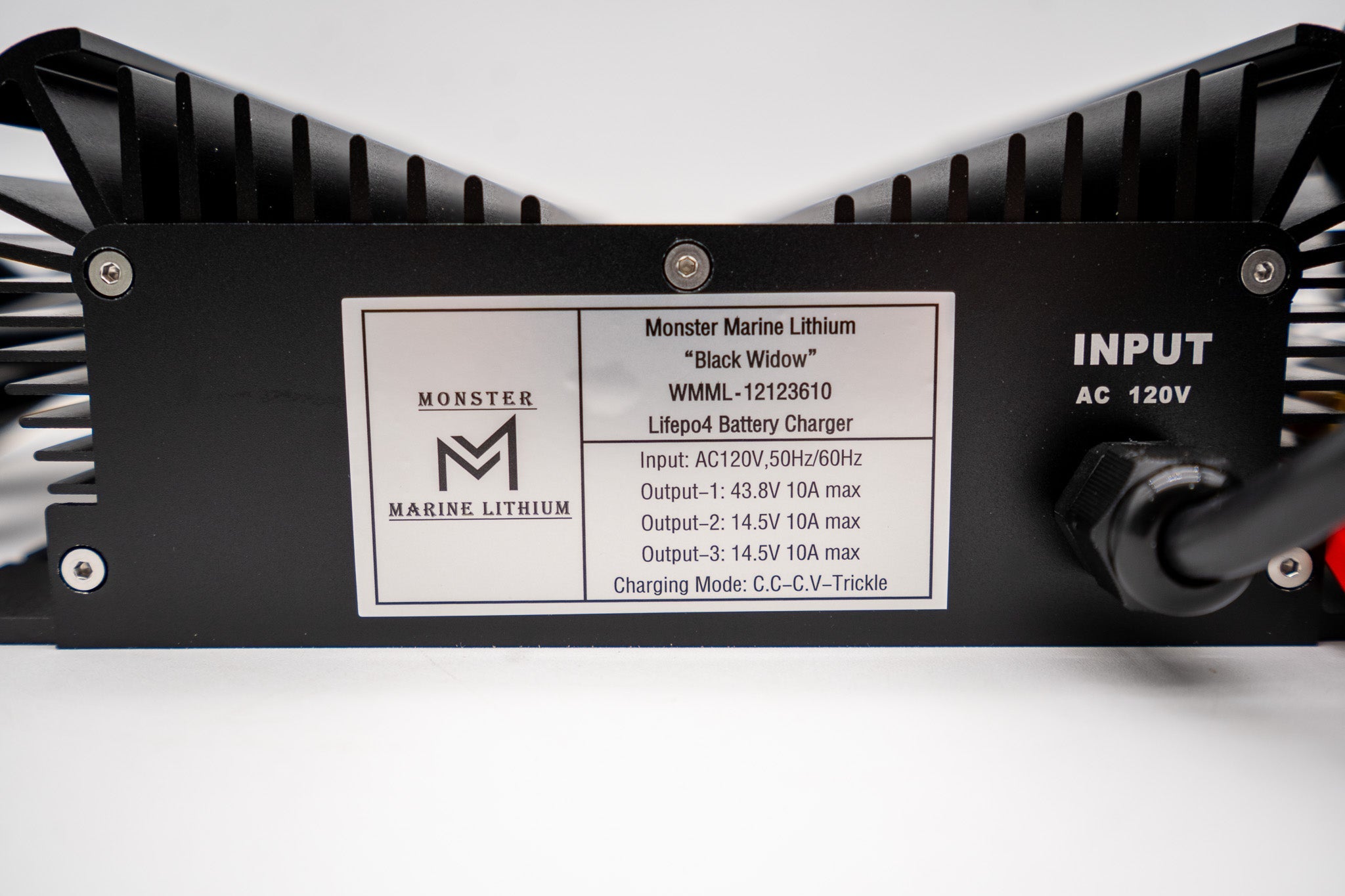

Power specs:
AC power input 100-120v

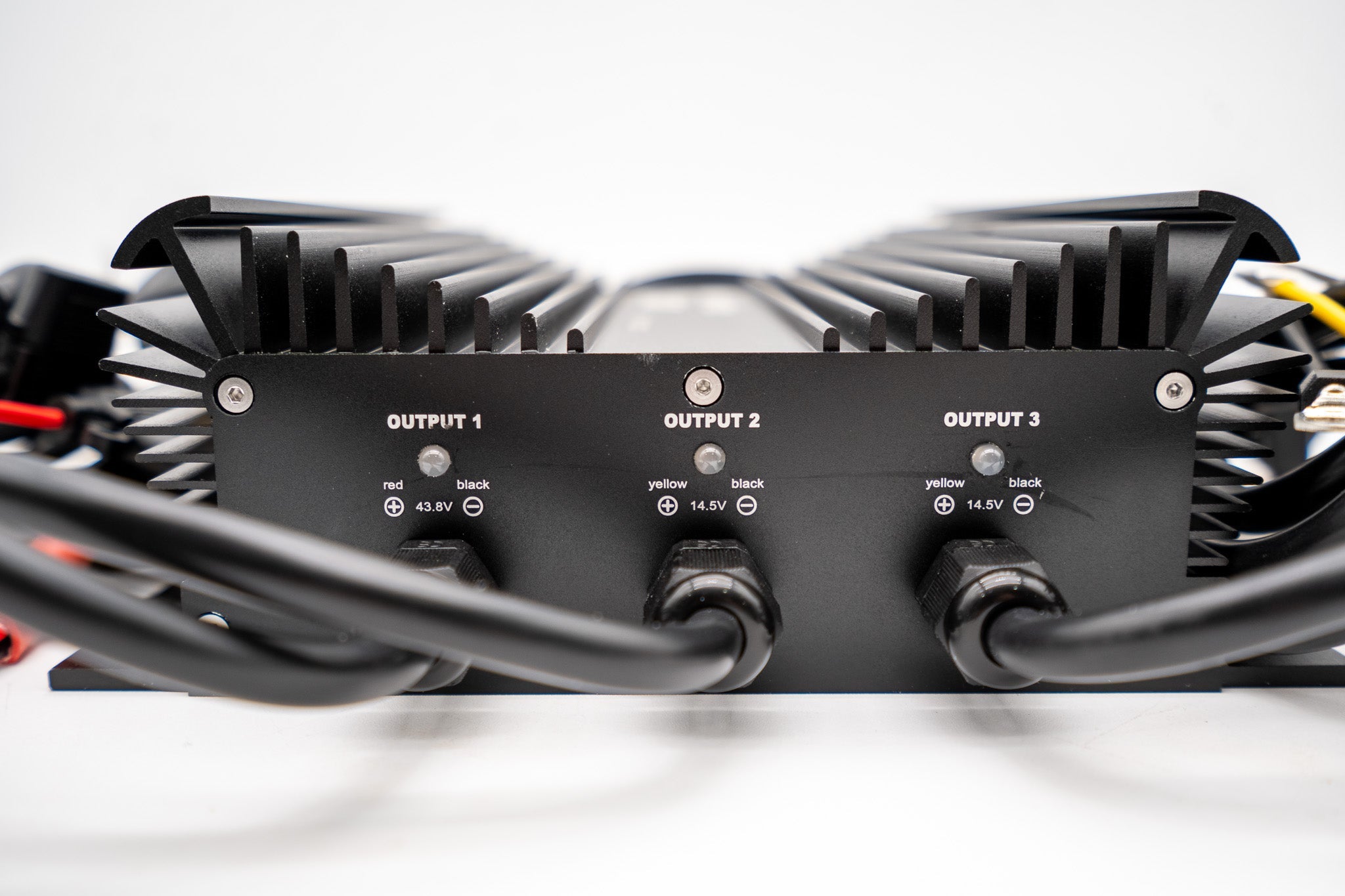

Output 1: 36v DC @ 10A
Output 2: 12v DC @ 10A
Output 3: 12v DC @ 10A
Maintenance mode for both lithium and AGM/Lead batteries.
