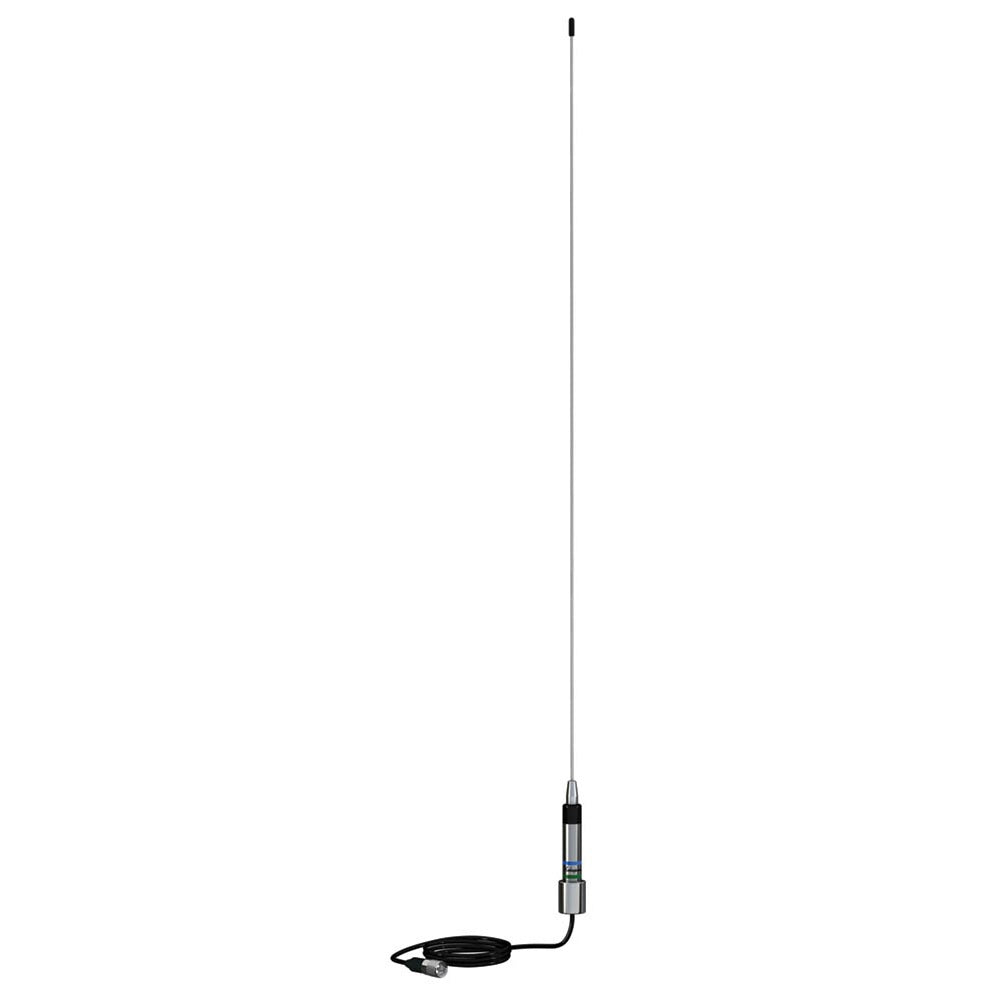

Shakespeare 5250 36" S/S Whip VHF Skinny Mini
Shakespeare Style 5250 Skinny Mini
3 ft. (0.91 M) VHF Marine Band 3dB
End-fed -wave stainless steel whip
This compact, lightweight antenna is ideal for vessels where space is limited - bass boats and center console fishing vessels, for example. Its chrome plated brass canister minimizes the de-tuning associated with antennas having plastic canisters.
Stainless steel whip (36")
Sealed, tin-plated copper wire coil
Requires mount with center hole for passage of the supplied 15' RG-58 cable.
Cable and PL-259 connector included
Suggested mount: Style 4187, 5187, 4188-S or 4190 Ratchet Mount (each sold separately)
PL-259 connector included
One section
Suggested mount(s): 4187 4188-S
Shakespeare 5250 Skinny Mini Specifications Band: VHF Marine Band
Antenna Gain: 3dB
Max. Input Power: 50 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 7 MHz within 2.0:1 VSWR
Coax Supplied: 15 ft of RG-58
Connector Supplied: PL-259
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground - The antenna will read
open on continuity test.
Shakespeare
Limited Warranty: 2 years
