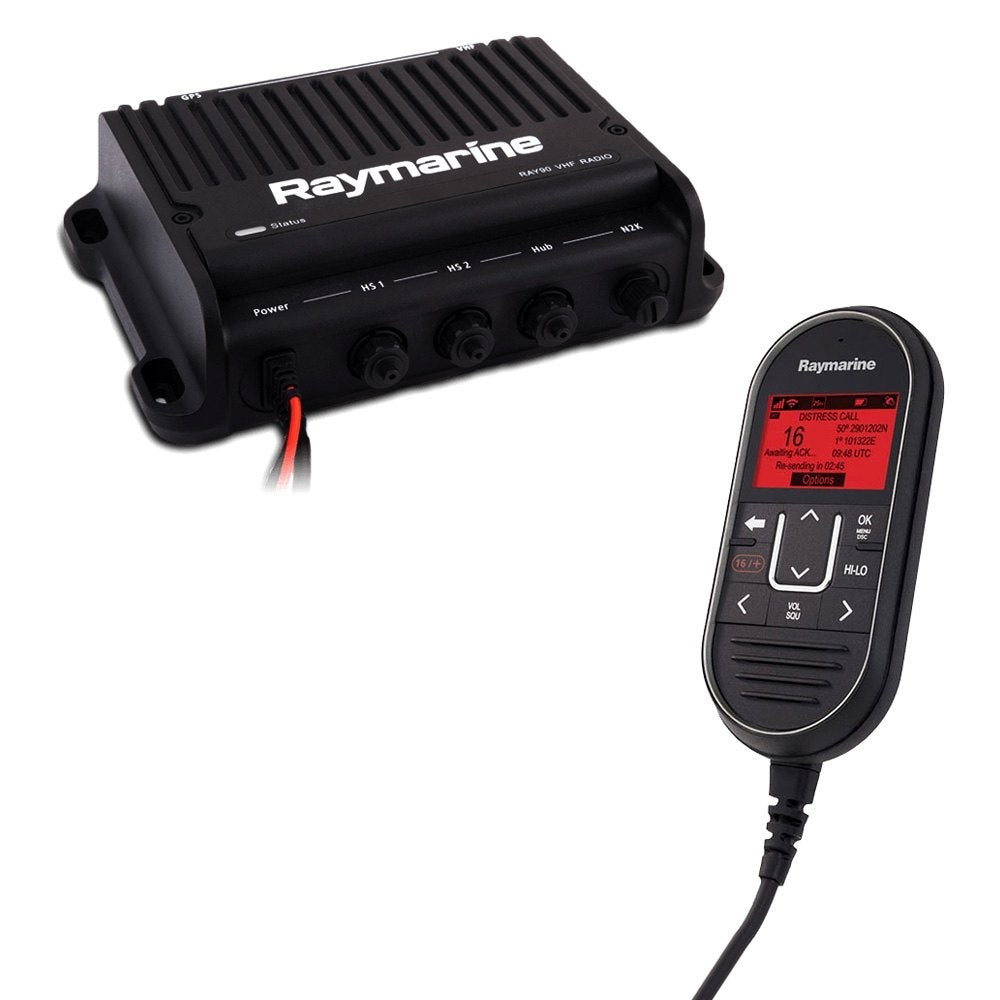

Raymarine RAY90 Modular VHF Radio

Model: E70492

• Black box, multi-station capable VHF radio


• NEW - Optional Wireless handset and active speaker available


• Wired handset and passive speaker included


• Expandable to 2 handsets


• Built-in loudhailer and fog signal generator


• Optional external GPS


• Simple NMEA2000 and NMEA0183 Networking

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.

Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.

The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.

Specifications
ENVIRONMENTALWater IntegrityComplies with IPX6 & IPX7 Complies with EN60945Operating Temperature Range-25°C to 55°CStorage Temperature Range-25°C to 70°CHumidityup to 95%ElectricalCommunications PortNMEA 0183 (version 4.01); NMEA2000 (version 3.101)Nominal Supply Voltage12V DC. Reverse polarity and over voltage protectedOperating Voltage Range9V DC to 16V DCCurrent ConsumptionLess than 6A at High Power (13.6V)
Standby: 600 mA
Receive: 2 AmpsTransmitterChannelsAll available US, International and Canadian VHF marine bandsFrequency Range156.000 — 157.425 MHz 155.500 to 161.425 MHz Private channelsFrequency Stability+ / - 1.5 ppmChannel Spacing12.5 kHzPower OutputHigh Power = 25 Watt, Low Power = 1 WattSpurious emmissionBetter than -36 dBm at 25W (Less than 0.25 µW)Maximum Deviation+/- 5kHzAntenna port impedance50 ohms typicalReceiverReceiver TypeDouble Conversion Super HeterodyneChannelsAll available US, International and Canadian VHF marine bandsFrequency Range156.000 — 157.425 MHz 155.500 to 161.425 MHz Private channelsSensitivity:Better than 1 microvolt EMF @ 20dB SINADHum & NoiseBetter than -40 dBAudio DistortionLess than 10%Receiver SensitivityDistance -119 dBm (0.25uV)@12 dB SINAD Typical Local -110 dBm (0.7uV)@12 dB SINAD TypicalAdjacent Channel SelectivityMore than 70 dBSpurious Response RejectionMore than 70 dBInter Modulation RejectionMore than 70 dBGPSNumber of channels72Cold Start29sReceiver IC Sensitivity-167 dBm (Tracking) / -148 dBM (Acquisition)GNSS CompatibilityGPS GLONASS *BeiDouSBAS CompatibilityWAAS EGNOS MSASSpecial FeaturesActive jamming and interference reductionOperating frequenciesGPS L1 C/A GLONASS L10F Beidou B1Signal AcquisitionAutomaticAlmanac UpdateAutomaticGeodetic DatumWGS-84 (alternatives available through Raymarine MFD)Refresh Rate20 Hz (20 times per second concurrent GNSS)Positional AccuracyWithout SBAS: <2.5 metres 95% of the time With SBAS: <2 metres 95% of the timeDimensions2.48" H x 9.25" W x 6.3" W
What's in the Box:

• Ray90 VHF DSC Radio (including fitted power and data cable)


• Raymic handset cradle


• Raymic handset


• Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio)


• Passive speaker


• Passive speaker mounting gasket


• Passive speaker mounting screws x 4


• Documentation


• VHF radio mounting screws x 4


• Handset cradle mounting screws x 4


• DeviceNet to SeaTalkng® adaptor
