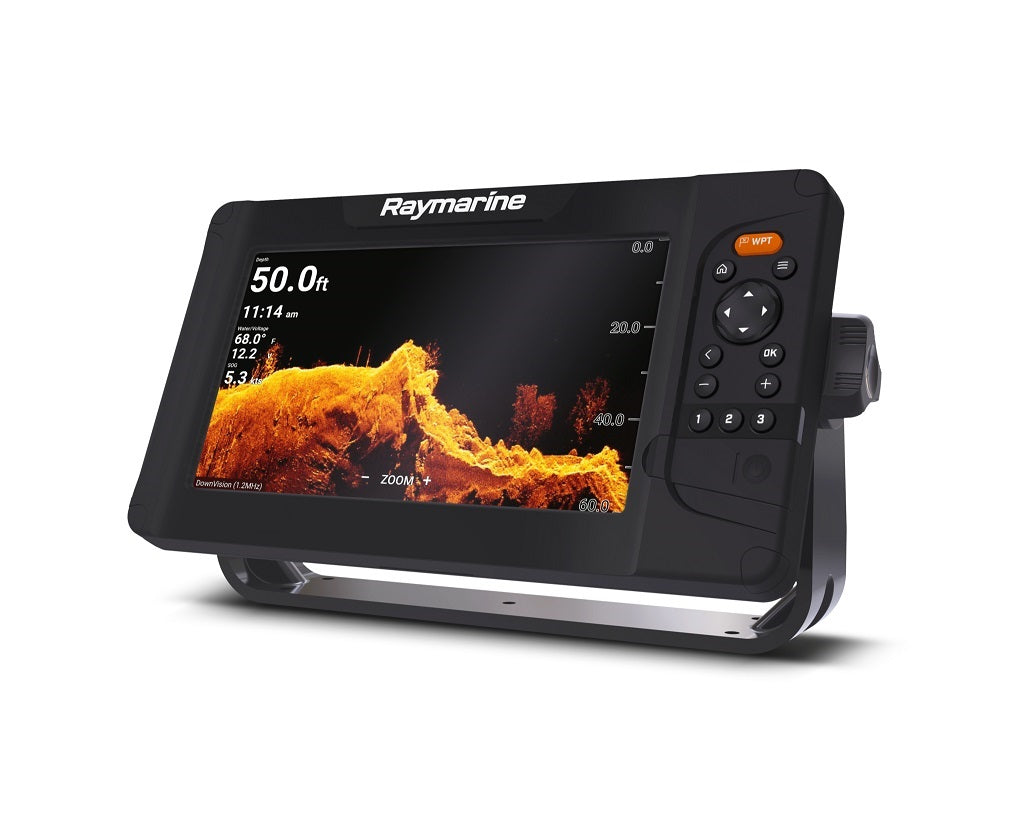

Raymarine Element 9HV No Transducer Navionics Plus USA and Canada

Raymarine Element 9HV No Transducer Navionics Plus USA and Canada

Raymarine Element 9 HV Combo w/Nav+ Canada Chart

Model: E70534-00-NAG

• High-visibility sunlight viewable 9" display


• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars


• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes


• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.


• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’


• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness


• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots


• Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support


• User-programmable keys allow quick access to most-used configurations


• Support for Raymarine LightHouse NC2 with Fishing Hot Spots, Navionics, C-MAP and other regional charting options


• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm. An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Specifications
GENERAL SPECIFICATIONSDisplay Size9.0" Optically Bonded LCDDisplay Resolution800 x 480 WVGADisplay TypeNon-TouchBrightness1,500 nitsViewing AngleTop 50° / Bottom 60° / Left 70° / Right 70°PHYSICALOverall Dimensions287 x 161 x 62mmW x H x D(11.3 x 6.3 x 2.4 inches)Product Weight (lbs)5.0Water Ingress ProtectionIPx6 and IPx7Operating Temperature Range-25°C to + 55°C (-13°F to 131°F)Storage temperature range-30°C to +70°C (-22°F to 158°F)POWERVoltage12V DC (8V to 16V DC)Power Consumption (max 12V DC)20 WattsSENSORSGNSS / GPSBuilt-in GNSS Receiver: GPS/GLONASSSonar Type (Built-in)Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)Sonar Connection15 pin HyperVision™ type connectorNETWORKINGEthernetN/ANMEA0183N/ANMEA20001 x NMEA2000 port (DeviceNet microC)SeaTalkngRequires A06045 DeviceNet female (F) adapter cable - 400mmUSBN/AWi-FiWiFi - 802.11 b / g / nBlueToothBluetooth 4.0 + Low Energy + Power Class 1.5OTHER SPECIFICATIONSCartographyRaymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.Tides & CurrentsRequires LightHouse LNC2, Navionics or C-MAPWaypoint / Routes / Tracks10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk ptsInternal Memory8GB Solid StateExternal Memory1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
What's in the Box:

• Trunnion bracket with mounting hardware


• Flush mount kit with mounting hardware


• Sun cover


• Power / NMEA2000 1.5m cable


• Documentation pack


• Cartography (optional)
