Raymarine Axiom2 XL 16 Kit with RCR-SD, Alarm and Cable

Raymarine Axiom2 XL 16 Kit with RCR-SD, Alarm and Cable

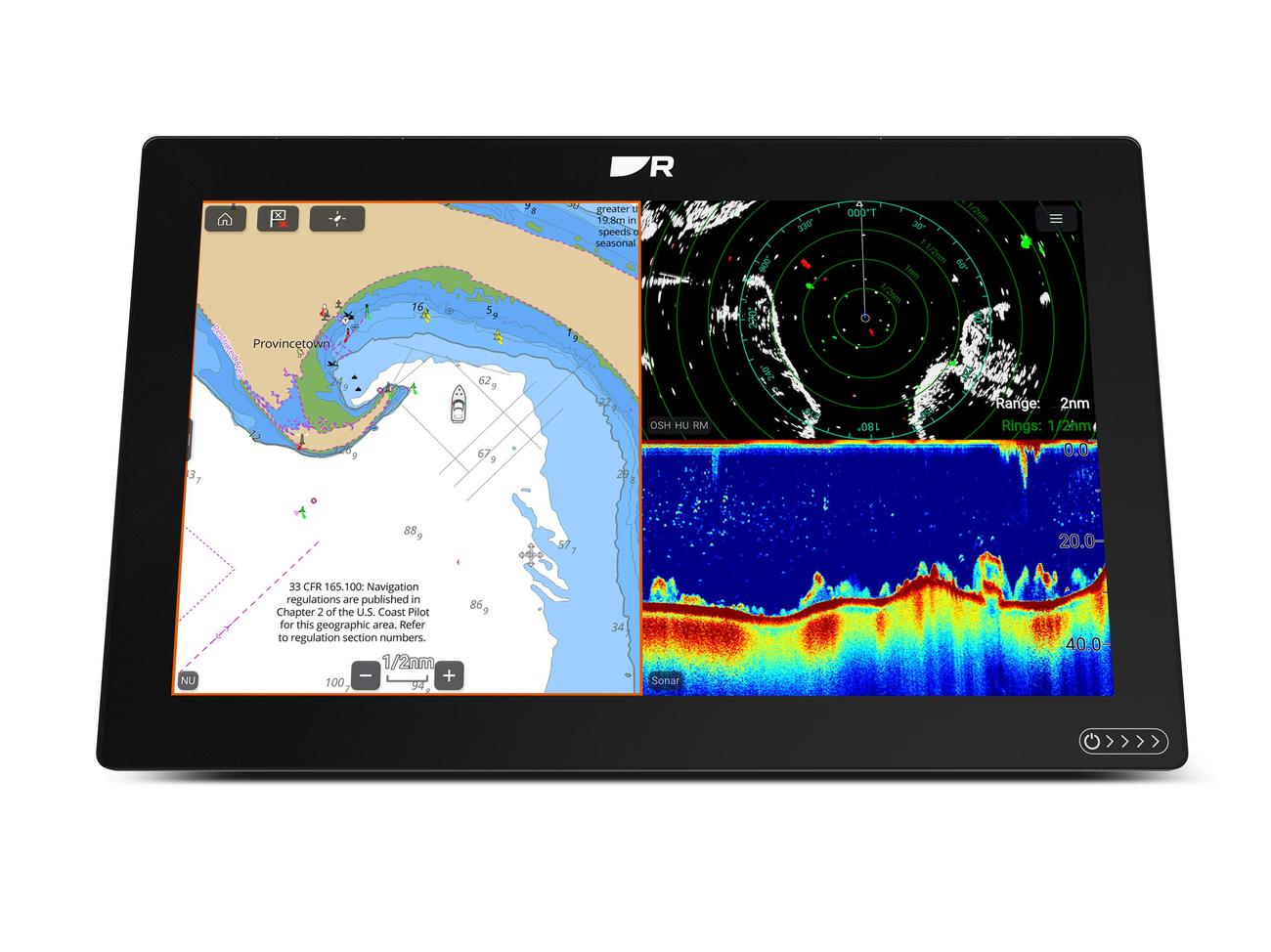

Raymarine AXIOM2 XL 16 - 15.6" Multifunction Display Kit (includes RCR-SD, Alarm and Cable)

Model: T70545

• Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.


• Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.


• FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.


• Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.


• Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.


• Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display


• Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.


• Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.


• Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.


• Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App.

The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.

Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.

Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.

Specifications
Power consumption @ 12 V dc76.56 WPower consumption @ 24 V dc71.53 WOff current @ 12 V dcPoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)Off current @ 24 V dcPoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)PoE operating voltage range9.5 V dc to 32 V dcCurrent8.56 AOperating voltage range8 V dc to 32 V dcFuse rating15 ANominal supply voltage12 V dc / 24 V dcOperating temperature-25°C to +55°C (-13°F to 131°F)Storage temperature-30°C to +70°C (-22°F to 158°F)Relative humidityup to 93% @ 40°C (104°F)Waterproof ratingIPx6, IPx7Dimensions Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in)
What's in the Box:

• Raymarine Axiom2 XL 16 MFD


• Mounting gasket tape


• Rear mounting bars x 2


• Mounting bar fixings (M5x20 pozi countersunk) x 4


• Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4


• Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))


• Documentation


• DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)


• RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)


• Power/Video/Audio cable 1.5 m (4.92 ft) right-angled
