Raymarine Axiom2 Pro 16S MFD No Transducer No Chart

Raymarine Axiom2 Pro 16S MFD No Transducer No Chart

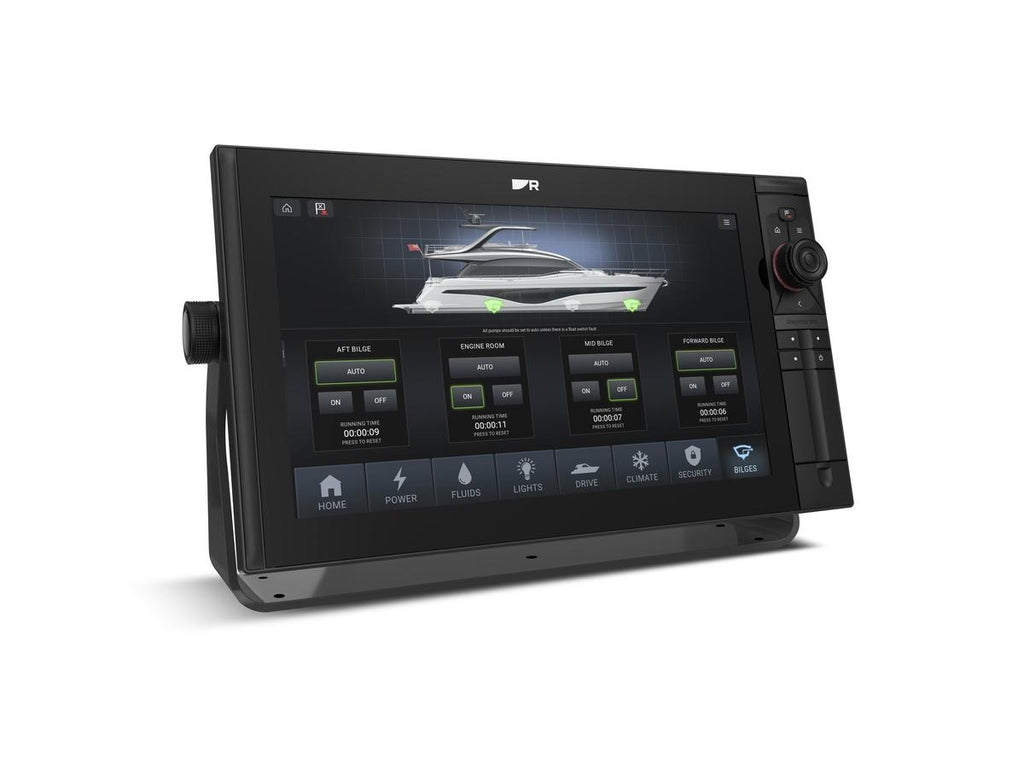

Raymarine Axiom2 Pro 16S HybridTouch chartplotter with single channel CHIRP sonar

Model: E70657

Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.

Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.

Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.

Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.

Specifications
PhysicalDimensions (Trunnion mounted)Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)Dimensions (Surface/Flush mounted)Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)ConnectionsEthernet connection2 RayNet (10/100/1,000 Mbits/s) portsNMEA 2000 connectionDeviceNet connectorWi-FiMultiband - 2.4GHz, and 5Ghz 802.11b/g/nBluetoothv4.0Accessory connectionUSB Micro BInternal storage64GB Solid StateExternal storage2 front mounted MicroSDXC card slotsDigital Video and AudioHDMI Out Micro connector type DAnalog video connectionsBNC Analog video input (on power cable)Analog audio connectionsRCA connectors via power cableExternal GPS anternnaTNC connectorPowerPower consumption @ 12 V dc42.36 WPower consumption @ 24 V dc40.8 WOperating voltage range8 V dc to 32 V dcNominal supply voltage12 V dc / 24 V dcOff current @ 12 V dc11 mA (0.13 W)Off current @ 24 V dc18 mA (0.43 W)LEN (NMEA 2000 Load Equivalency Number)1Current5AFuse rating15AGPS (GNSS)Position AccuracyWithout SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the timeGeodetic DatumWGS-84 (alternatives can be selected on the MFD)Satellite Differential Type (SBAS)WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)ChannelsTrack up to 28 satellites simultaneouslyGNSS compatibilityGPS, Galileo, GLONASS, BeidouRefresh rate10 Hz (10 times per second)ENVIRONMENTALOperating temperature-25°C to +55°C (-13°F to 131°F)Waterproof ratingIPx6, IPx7DisplaySize (diagonal)15.6"Resolution1920 x 1080 FHDViewing angleTop 88° / Bottom 88° / Left 88° / Right 88°TypeIPS (In-Plane Switching)Viewing angleTop 88° / Bottom 88° / Left 88° / Right 88°Illumination1200 nits / 1200 cd/m2
What's in the Box:

• Axiom2 Pro 16S


• Suncover


• Gasket


• Trunnion knobs (x 2)


• Trunnion bracket (Axiom 2 Pro 9 and 12 Only)


• Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))


• DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)


• RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)


• Mounting fixings x4


• Documentation


• Power/Video/Audio cable 1.5 m (4.92 ft)
