Raymarine Axiom Pro 16S MFD No Transducer Lighthouse NC3 North America

Raymarine Axiom Pro 16S MFD No Transducer Lighthouse NC3 North America

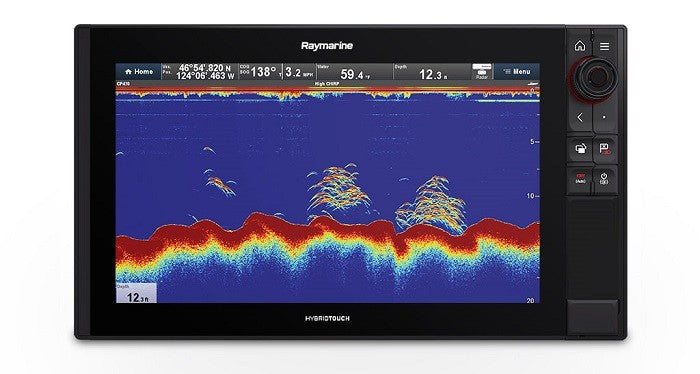

Raymarine Axiom Pro 16S 15.6" MFD With Single Channel CHIRP and Lighthouse NC3 North America Lakes and Coastal Tide Stations

Model: E70483-00-102

• High CHIRP


• NMEA2000 & NMEA0183


• Sonar Scroll Back


• HybridTouch™


• Quad Core Processor


• Optical Bonding Technology & IPS Displays


• IP & Analog Video


• Clear Cruise™


• Quantum CHIRP, HD & SHD


• NMEA2000 & NMEA0183

Specifications
Display Size15.6" IPS Optically Bonded LCDDisplay Resolution1920 x 1080 FHDDisplay TypeMultitouchBrightness1,200 nitsViewing AngleDegrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)MountingTop, Front, and optional RAM ball mount adapterWaterproof RatingIPX6 / IPX7Operating Tempminus 13deg F to 131deg F (-25deg C to +55deg C)Storage Tempminus 22deg F to 158deg F (-30deg C to +70deg C)SensorsSonar Type - Built-inHigh CHIRPSonar Connections25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.Sonar DepthCHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m)External SonarYes - CP100, CP200, CP370, CP470, CP570 via RayNetRadarYes - Quantum, Digital, HD Color and Super HD Color RadarsAISYes - N2K compatibleGNSS / GPSBuilt-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)Autopilot ControlYes - Evolution AutopilotThermal Night VisionYes - IP or AnalogueVideo / Camera1 x Analogue input (BNC) Up to 10 IP CamerasWeatherGRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America OnlyAudioN2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]Digital SwitchingYes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]Remote ControlRMK-10 (A80438) & RCU-3 (E62351)NetworkingEthernet2 x 10/100/1000 Mbits/ Network (RayNet)NMEA01831 Transmit / 2 ReceiveNMEA20001 x NMEA2000 port (DeviceNet microC)SeaTalkNGRequires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)USB1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)Wi-FiWiFi - 802.11 a / b / g / nBlueToothBluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]NavigationCartographyLighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update]Waypoint/Routes/Tracks (Wpts/Rts/Trk)10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk ptsMEMORYInternal16GB Solid State16GB Solid State2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)Input Voltage12V and 24V DC (8 V to 32 DC)Input Draw ~45WDimensions17.8" x 10.2" x2.72" (452 x 258 x 69 mm)
What's in the Box:

• Axiom Pro 16S


• Trim Kit


• Suncover


• Trunnion Kit


• PWR/VIDEO/NMEA0183 CBL, STRT 1.5M


• Mounting Hardware


• Mounting Template


• Quick Start Guide


• Warranty Card


• Raymarine window decal


• Lighthouse NC3 North America Lakes and Coastal Tide Stations microUSB
