Description

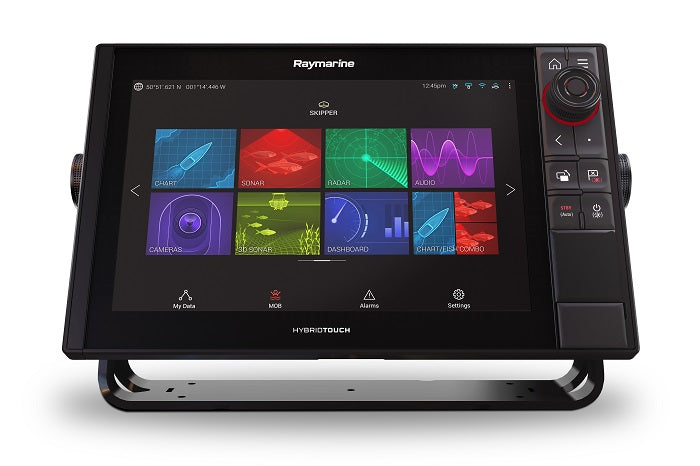

Raymarine Axiom Pro 12S MFD No Transducer Navionics Plus North America
Raymarine Axiom Pro 12S 12" MFD With Single Channel CHIRP and Navionics Plus North America Charts
Model: E70482-00-NAG- High CHIRP
- NMEA2000 & NMEA0183
- Sonar Scroll Back
- HybridTouch™
- Quad Core Processor
- Optical Bonding Technology & IPS Displays
- IP & Analog Video
- Clear Cruise™
- Quantum CHIRP, HD & SHD
- NMEA2000 & NMEA0183
Display Size12.1" IPS Optically Bonded LCDDisplay Resolution1280 x 800 WXGADisplay TypeMultitouchBrightness1,200 nitsViewing AngleDegrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)MountingTop, Front, BracketWaterproof RatingIPX6 / IPX7Operating Tempminus 13deg F to 131deg F (-25deg C to +55deg C)Storage Tempminus 22deg F to 158deg F (-30deg C to +70deg C)SensorsSonar Type - Built-inHigh CHIRPSonar Connections25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.Sonar DepthCHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m)External SonarYes - CP100, CP200, CP370, CP470, CP570 via RayNetRadarYes - Quantum, Digital, HD Color and Super HD Color RadarsAISYes - N2K compatibleGNSS / GPSBuilt-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)Autopilot ControlYes - Evolution AutopilotThermal Night VisionYes - IP or AnalogueVideo / Camera1 x Analogue input (BNC) Up to 10 IP CamerasWeatherGRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America OnlyAudioN2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]Digital SwitchingYes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]Remote ControlRMK-10 (A80438) & RCU-3 (E62351)NetworkingEthernet2 x 10/100/1000 Mbits/ Network (RayNet)NMEA01831 Transmit / 2 ReceiveNMEA20001 x NMEA2000 port (DeviceNet microC)SeaTalkNGRequires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)USB1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)Wi-FiWiFi - 802.11 a / b / g / nBlueToothBluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]NavigationCartographyLighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update]Waypoint/Routes/Tracks (Wpts/Rts/Trk)10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk ptsMEMORYInternal16GB Solid State16GB Solid State2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)Input Voltage12V and 24V DC (8 V to 32 DC)Input Draw ~35WDimensions14.1" x 9.17" x 2.56" (358 x 223 x 65 mm)
What's in the Box:
- Axiom Pro 12S
- RayNet (F) to Raynet (F) Cable — 2M (A62361)
- Trunnion Cover
- Trunnion Knobs
- Trunnion Bracket
- Suncover (A80534)
- Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)
- Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)
- Panel Seal Gasket
- Bezel Pieces and Home / Menu Button
- Navionics Plus North America Charts
- Mounting Fixings
- Quick Start Guide
- Warranty Card
- Raymarine window decal
