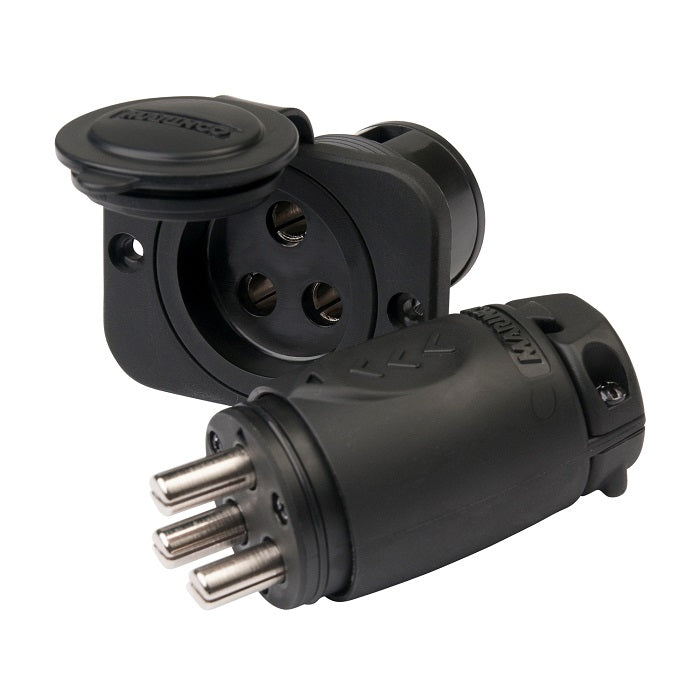

Marinco 70 amp Trolling Motor Plug and Receptacle

Model: 12VCPS3

• 70A continuous rating
• Universal design for 2 or 3-wire configuration 12V, 24V, 12/24V, 24/36V, 36V or 48V systems
• Corrosion resistant, plated brass electrical components
• Receptacle contains watertight sealing cap
• Plug contains Integrated strain relief and keyed design with thumbprint locator
• Accepts up to 6 AWG wire

70A plug and receptacle for modern trolling motors in a compact, waterproof footprint. The plug features an integrated strain relief and thumbprint locator to mate with the keyed receptacle.

Specifications
Plug Maximum Amperage70A (12V and 24V)
60A (36V and 48V Voltage12V, 24V, 12/24V, 36V, 24/36V, & 48V Wire2 or 3 GenderMale TerminalsDouble Set Screw w/ferrule Wire Size8AWG and 6AWG Receptacle Maximum Amperage70A (12V and 24V)
60A (36V and 48V VoltageVoltageVoltageVoltageVoltageVoltageVoltage12V, 24V, 12/24V, 36V, 24/36V, & 48V Wire2 or 3 GenderFemale TerminalsDouble Set Screw w/ferrule Mounting Hole size1.75" Mounting Thickness1" Max Material Specifications BodyNylon ContactsNickle Plated Brass Terminal ScrewsNickle Plated Brass
What's in the Box:

• 12VBPS3 70A Plug
• 12VBRS3 70A Receptacle
