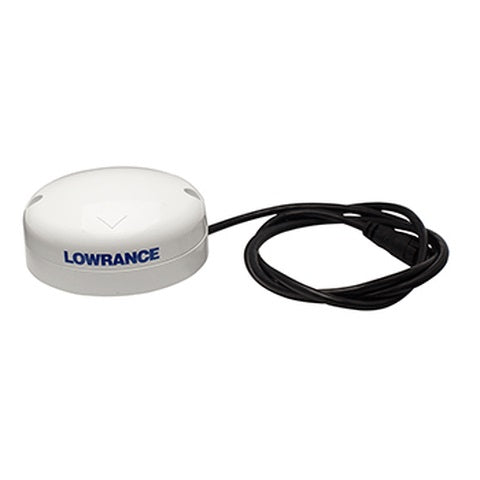

Lowrance Point-1AP GPS and Heading Antenna

Model: 000-12930-002

• NMEA 2000® position and heading sensor


• Supports GPS and GLONASS, Galileo-capable with future software update


• Supports SBAS including WAAS/EGNOS/MSAS


• 10 Hz updates for smooth and accurate location


• Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds


• Compact, rugged design for all marine environments and fully waterproof

Point-1AP GPS and Heading antenna provides extremely accurate and rapid boat position and speed updates to the network. Built in magnetic compass with accuracy and tuning specific for Lowrance Autopilots also provides chart stabilization and radar overlay, plus accurate course over ground even at low speeds.

Specifications
NetworkingNMEA 2000 CertifiedYesConnectorsNMEA 2000 Micro CPowerPower Supply (Supply Voltage)9v-18vGPS NavigationGPS Receiver Channels32Heading Accuracy3 degreesHorizontal Accuracy5 mRate of Turn3 degreesSatellite Reacquisition<5 secondsStart-up Time<3 secondsCold Start<50 secondsPicth/Roll Angle@30 degrees 1 grade errorTechnical/EnvironmentalDiameter90 mm (3.54in)Product Height38 mm ( 1.50in)
What's in the Box:

• Point-1AP Sensor


• N2K-T-RD - Micro-C T-connector for connection of an additional network device


• N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device
