Lowrance Elite FS 7 All Season Pack
Model: 000-15885-001
- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER,APAC)
- NMEA 2000®: Support and control NMEA 2000® devices
- Halo Radar: Drive Lowrance radar domes directly
- Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts
SpecificationsEnvironmentalOperating temperature range-15°C to +55°C (5°F to 131°F)Storage temperature-20°C to +60°C (4°F to 140°F)Waterproof ratingIPX6 and IPX7
ElectricalSupply voltage12 V DC (10 - 17 V DC min - max)Recommended fuse rating3 APower consumption (maximum)28 W (2 A at 13.8 V DC)
DisplayResolution800 x 480 pixelsViewing angles in degrees50° top, 60° bottom, 70° left and rightBrightness> 1200 nitsTouch screenMultitouch
PhysicalWeight (display only)0.9 kg (1.9 lbs.)Compass Safe Distance0.5 m (1.6 ft.)
Interface/ConnectivityNMEA 2000®1 port (Micro-C connector)Data card reader1x slot (microSD, SDXC)Ethernet1 port, (5-pin Ethernet connector, 100Base-T)Sonar1 port (9-pin connector)WiFI Internal802.11b/g/n : No wireless networking between unitsBluetooth®4.0 with support for Bluetooth® ClassicGPS10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

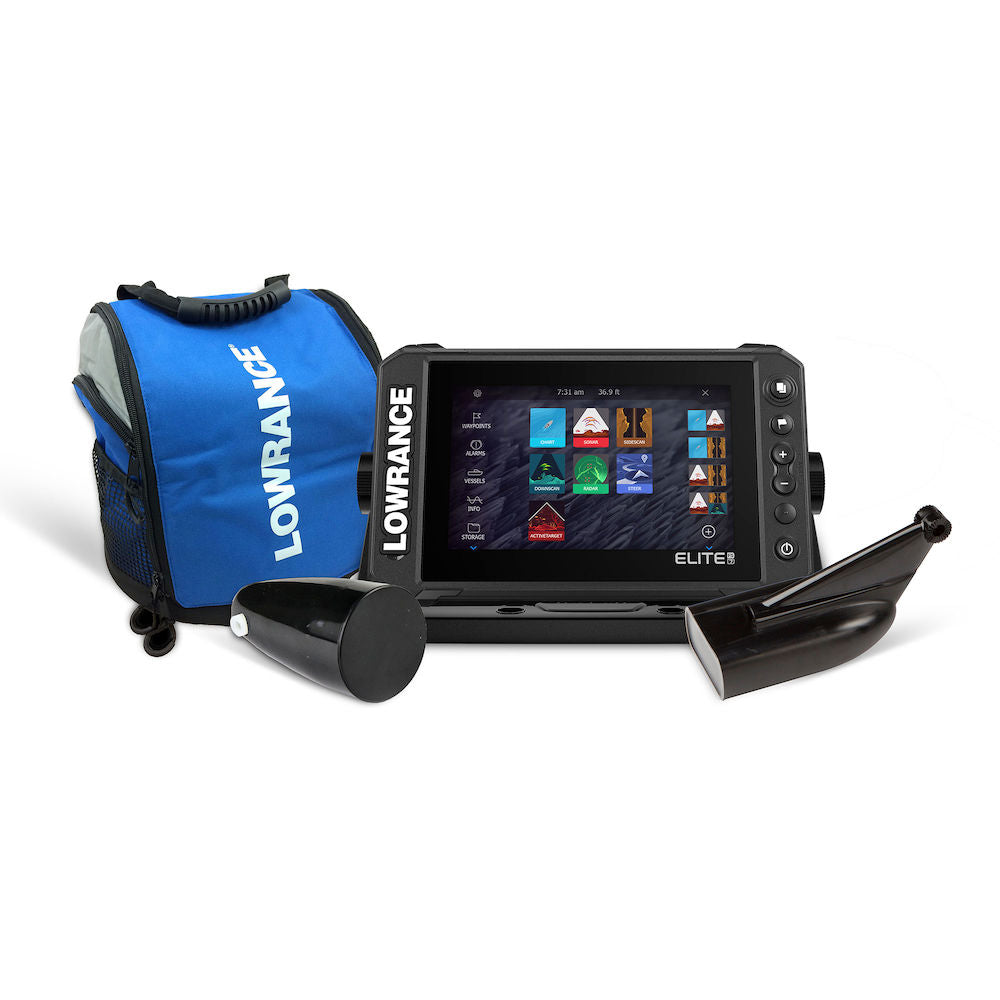

What's in the Box:
- Elite FS 7 No Transducer Display
- Carrying Bag
- HDI Skimmer Transducer
- Suction Cup Mounting Kit
- Ice Transducer
- Battery and Charger
