Lowrance Active Target 2 System

Lowrance Active Target 2 System

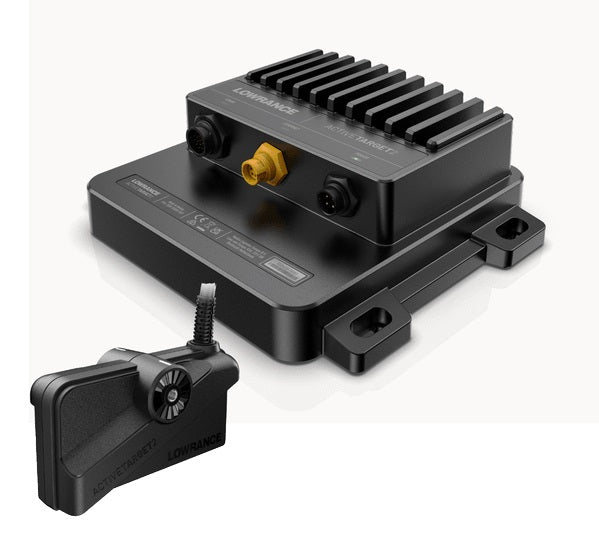

Lowrance ActiveTarget™2 kit Includes Module,Transducer with 7.62 m (25 ft) cable, and Mounts

Model: 000-15959-001

• High-resolution, live action images clearly reveal what’s happening underwater in real time


• Clearest live action views of fish and structure


• Smoothest underwater images for quicker interpretation


• See all around your boat with Forward, Down and Scout views


• See multiple views simultaneously with HDS Pro, and enable 180 and Scout Wide views for more effective bait tracking ahead of boat with second optional ActiveTarget® 2 transducer


• Compatible with HDS PRO, HDS LIVE and Elite FS


• See more with the highest-resolution and clearest live views of fish and structure


• Catch more fish by seeing how they respond to your lure in real-time


• The Clearest Picture : The Smoothest Picture : Live Views : More Views:


• Find more by adding additional simultaneous views with HDS® Pro


• Forward View - See clearer structure and fish that are in front of your boat, so you can perfectly target your next cast.


• Down View - Know the depth and see live in more detail what is directly below your boat so you can drop your lure right on the fish.


• Scout View - See a live overhead wide-view in front of your boat to know what’s around and which direction you should be casting. Perfect for finding bait balls and big schools of fish.

Combine New ActiveTarget® 2 Live Sonar, with your HDS PRO®, Ghost® Trolling Motor, Active Imaging™ HD, Engine Integrations and much more to complete the Ultimate Fishing System

ActiveTarget® 2 gives you the highest-resolution and clearest live views of fish and structure. By watching fish respond to your lure in real time, you can make the quick adjustments needed that make the difference and help you catch more fish. Available on HDS® Pro*, HDS® Live and Elite FS systems. *Compatible with dual ActiveTarget 2 systems for multiple simultaneous views

See the clearest and most-detailed live action images below and around your boat with ActiveTarget® 2. This new high-level clarity allows you to track fish movement, watching how they interact with the structure around them and, more importantly, how they respond to your lure. Get the best picture every time with optimized image and stabilization settings that deliver crisp and clear live-action views of fish and structure, even in rough conditions.

Delivering a smoother, more consistent image across the entire range, ActiveTarget® 2 shows you exactly what’s going on under the surface as a live action feed. Enhancements to the beam broadcast from the ActiveTarget® 2 system make it possible show more detailed images further from the boat than ever before.

Track fish and lure presentation with high-resolution views in front, below and around your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat.

Specifications
EnvironmentalStorage temperature-30°C to 70°C (-22°F to 158°F)Operating temperature-15°C to 55°C (5°F to 131°F)IP classIP67ElectricalPower supply12/24 V DCOperating voltage10.8 V DC - 31.2 V DCCurrent drain (maximum)1.5A at 13.8 VReverse polarity protectionYesFuse rating5 APhysicalWeight1.86 kg (4.12 lbs)TransducerEnvironmentalStorage temperature-30°C to 70°C (-22°F to 158°F)Water temperature for operation0°C to 35°C (32°F to 95°F)PhysicalWeight1.21 kg (2.67 lbs)Cable length7.62 m (25 ft)Mounting optionsTrolling motor shaft, Trolling motor lower unit, Trolling motor shaft scout wide mount (sold separately), Transom mount (sold separately)
What's in the Box:

• ActiveTarget™2 Module Only


• ActiveTarget™2 Transducer Only


• 4-Pin Power Cable


• Ethernet Cable 4.5m (15ft)
