Icom M400BB SW Black Box VHF With HM195 White

Icom M400BB SW Black Box VHF With HM195 White

Black Box Transceiver - Icom Quality. Small Footprint.

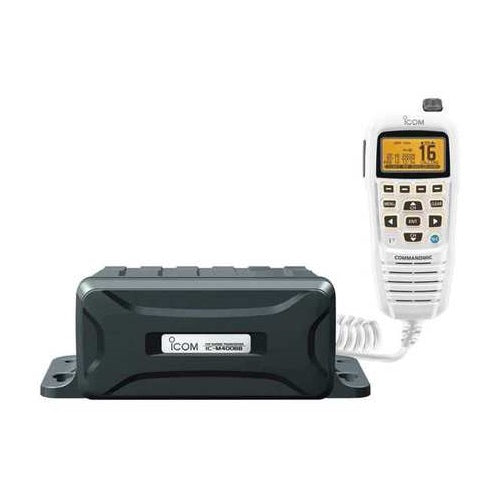

Space-saving, two-piece configuration

The IC-M400BB consists of a two-piece, black box configuration. All function control including DSC operation, can be made from the COMMANDMICIV™, HM-195B/SW, and the RF unit, IC-M400BB, can be installed in an out-of-sight place.

New intuitive user interface

The new menu system is shared with Icom's latest models. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.

Active noise cancelling

The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.

10W Loud Audio, Public Address and Foghorn

The IC-M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.

Built-in Class D DSC

The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Common NMEA Interface

When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC^TM display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.

AIS Target Call with MA-500TR

When connected to the optional MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DSC call from the MA-500TR.

Additional features include

• MarineCommander™ compatible
• AquaQuake™ water draining function
• IPX7 submersible protection both for IC-M400BB and HM-195SW (1m depth for 30 minutes)
• Dual/tri-watch function for monitoring Ch.16 and/or call channel
• Priority and normal scan

Specifications General Frequency Range
Tx
Rx
Ch. 70
156.025-157.425MHz
156.050-163.275MHz
156.525MHz Usable channel groups INT, USA, CAN and WX channels Type of emission 16K0G3E (FM), 16K0G2B (DSC) Power supply requirement 13.8V DC nominal
(11.7-15.9V DC) Current drain (at 7.4V DC)
Tx (at 25W output)
Rx (Max. audio)

5.5A Max.
3.5A Max.
  Operating temperature range -20 C to +60 C; -4 F to +140 F Antenna Impedance 50Ω (SO-239) Dimensions (W H D)
IC-M400BB
HM-195B/SW
216 79 125mm; 8.5 3.11 4.92 in
67.5 144.5 37mm; 2.66 5.69 1.46 in Weight (approx.)
IC-M400BB
HM-195B/SW
830g; 1.83 lb
400g; 14.1 oz NMEA in/out formats RMC, GGA, GNS, GLL, DSC, DSE Transmitter Output power (Hi/Low) 25W, 1W (High, low) Max. frequency deviation 5.0 kHz Frequency tolerance 10ppm Spurious emissions Less than -70dBc (at 25W) Receiver Sensitivity
Main
Ch. 70

0.22μV typical (at 12dB SINAD)
-5dBμ emf typ. (1% BER) Squelch sensitivity
  Less than 0.32μV Adjacent Channel Selectivity
Main
Ch. 70

More than 70dB
More than 73dBμ emf (1% BER) Spurious response
Main
Ch. 70

More than 70dB
More than 73dBμ emf (1% BER) Intermodulation
Main
Ch. 70

More than 70dB
More than 68dBμ emf (1% BER) Hum and noise ratio More than 40dB Audio output power


Internal speaker
External speaker



More than 2W (HM-195SW)
More than 10W (RX Speaker)

Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).

Applicable IP Rating

Ingress Protection Standard (IC-M400BB and HM-195SW) Water IPX7 (Waterproof protection
