Humminbird XM-14-HW-MDI-T Transom Mount with Temp

Humminbird XM-14-HW-MDI-T Transom Mount with Temp

Humminbird XM-14-HW-MDI-T

Model: 710290-1

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2.


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)

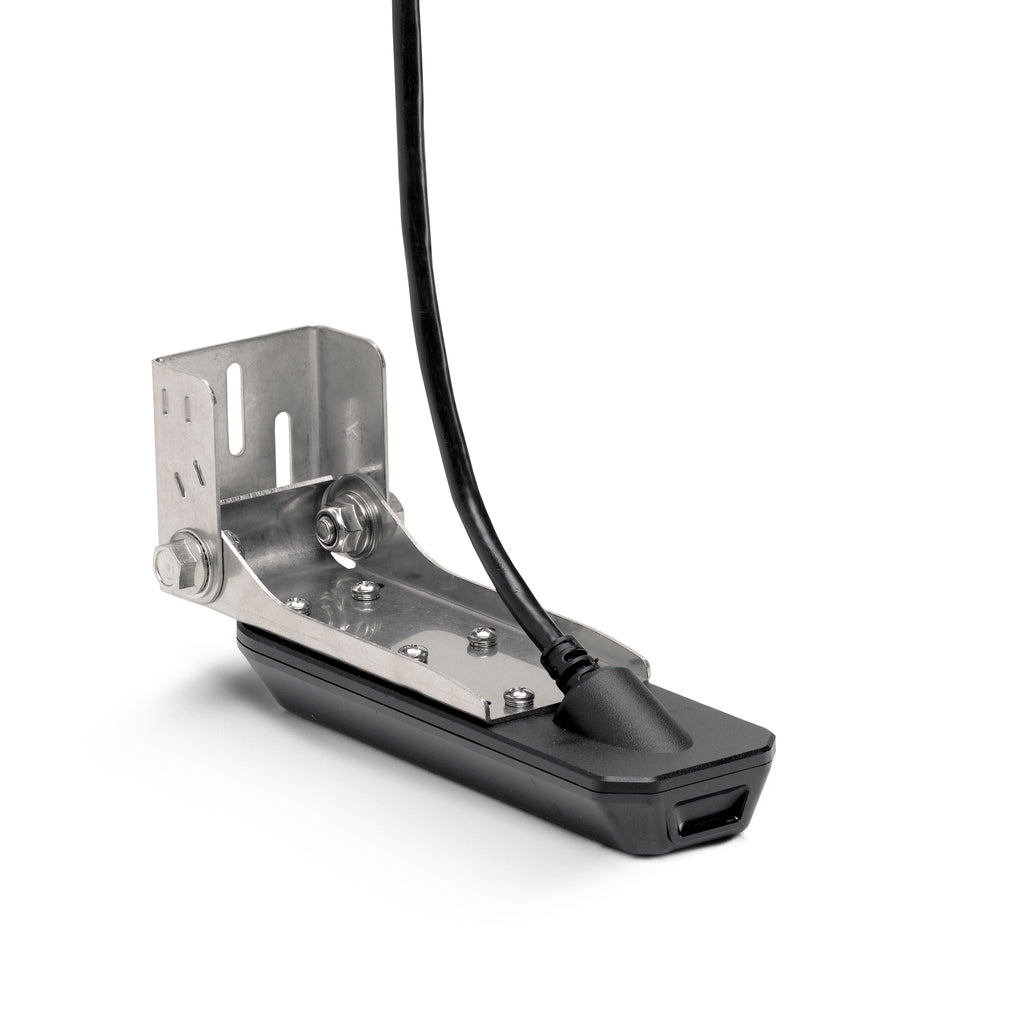

MEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.

Specifications
Mount TypeTransomSonar TypeMEGA Imaging, Dual SpectrumCurrent ModelsSOLIX 10, SOLIX 12, SOLIX 15
