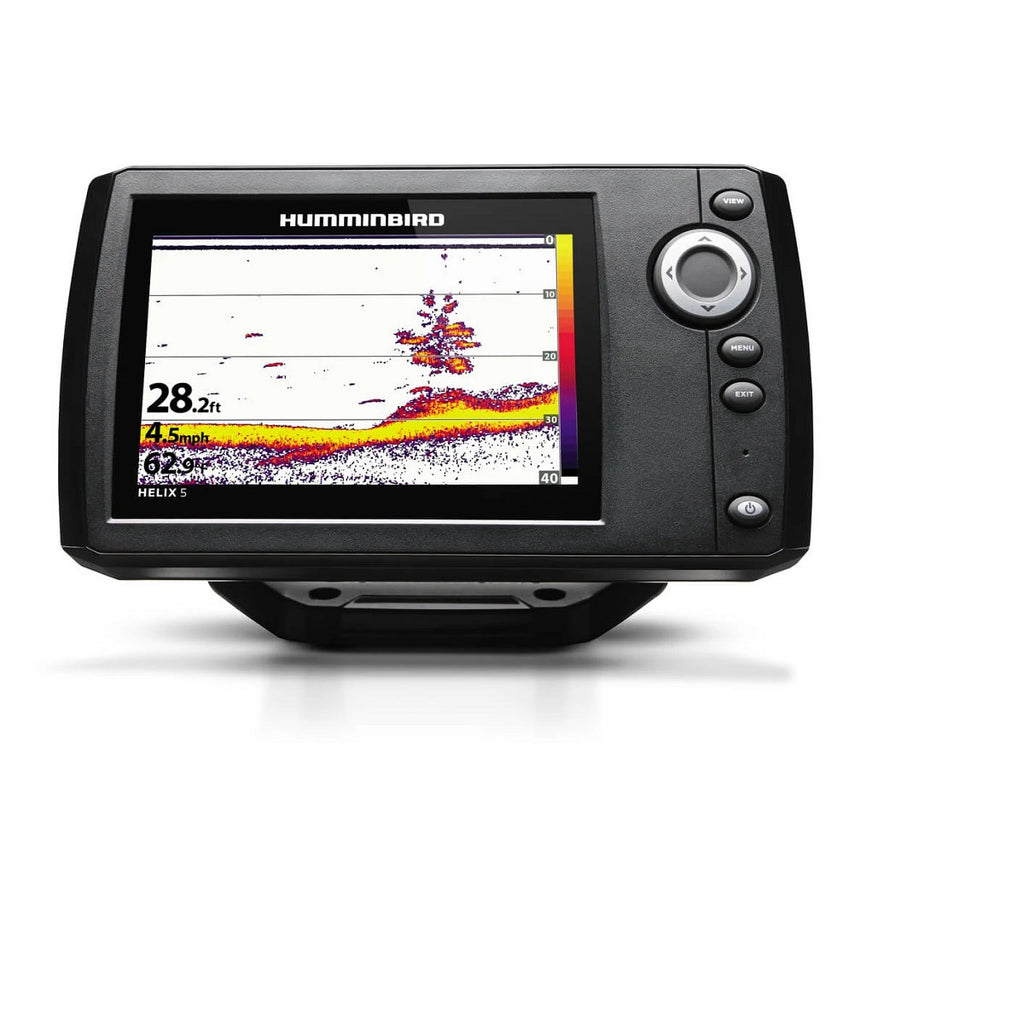

Humminbird HELIX5 Sonar 5" WVGA Color Fishfinder G2

Humminbird HELIX5 Sonar 5" WVGA Color Fishfinder G2

Humminbird Helix 5 Sonar G2

Model: 410190-1
UPC: 082324048999

• SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
• DualBeam Plus Sonar - Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
• Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section

The HELIX 5 Sonar G2 with our new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system.

Specifications
Display size5 in Display resolution800 x 480 Display typeColor TFT Display colors greayscale16-bit Standard sonarDualBeam PLUS Standard sonar coverage20° & 60° @ -10db Standard sonar frequency200/83 kHz Target separation2.5 in Power output RMS500 watts Power output Peak to Peak4000 watts TemperatureBuilt-in transducer SpeedOptional BacklightLED Switchfire sonarYes Split screen zoomYes Split screen bottom lockYes Large digits viewYes Selective FishIDyes Card readerNo Input Voltage10.8-20 VDC Input Draw650 mA DimensionsGimbal Mount:7.55"W x 4.64"H x 3.3"D
Gimbal Mount:7.55"W x 4.64"H x 3.3"D
What's in the Box:

• Helix 5 Sonar G2
• Bracket
• Powercord
• XNT 9 20 T transom mount transducer
• Documentation
