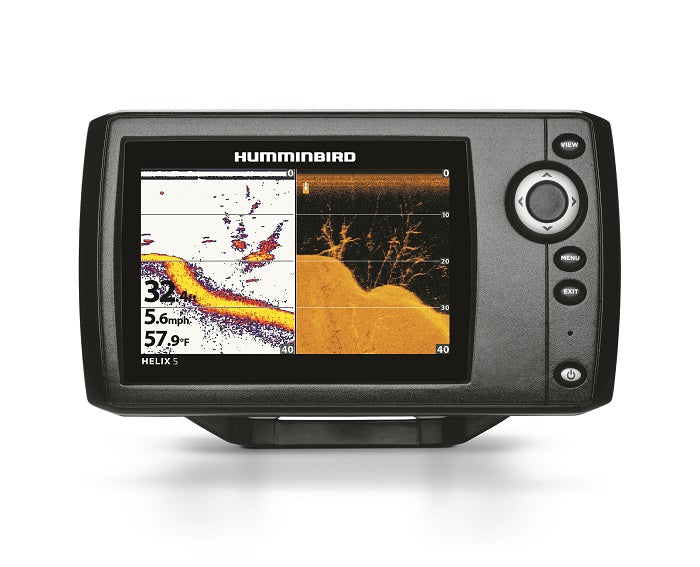

Humminbird HELIX5 DI 5" WVGA Color Fishfinder G2
Humminbird HELIX 5 DI G2 FishfinderModel: 410200-1
- Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
- SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
- Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
- Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.
The HELIX 5 DI G2 with their new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.Specifications
Display size5 in Display resolution800 x 480 Display typeColor TFT Display colors grayscale16-bit Standard sonarDown Imaging/DualBeam PLUS Standard sonar coverage16°, 28°, 45° & 75° @ -10db Standard sonar frequency455/800/200/455 kHz target separation2.5 in Power output RMS500 watts power output peak to Peak4000 watts Depth capability350 ft (DI) & 600 ft (2D) TemperatureBuilt-in transducer SpeedOptional BacklightLED PC ConnectOptional Switchfire sonarYes Split screen zoomYes Split Screen Bottom Lock:Yes Large digit viewYes Card readerNo Input Voltage10.8-20 VDC Input Draw650mA DimensionsGimbal Mount:7.55"W x 4.64"H x 3.3"D
Indash Mount:7.55"W x 4.28"D x 1.13"D
What's in the Box:
- Helix 5 DI G2
- XNT 9 DI T
