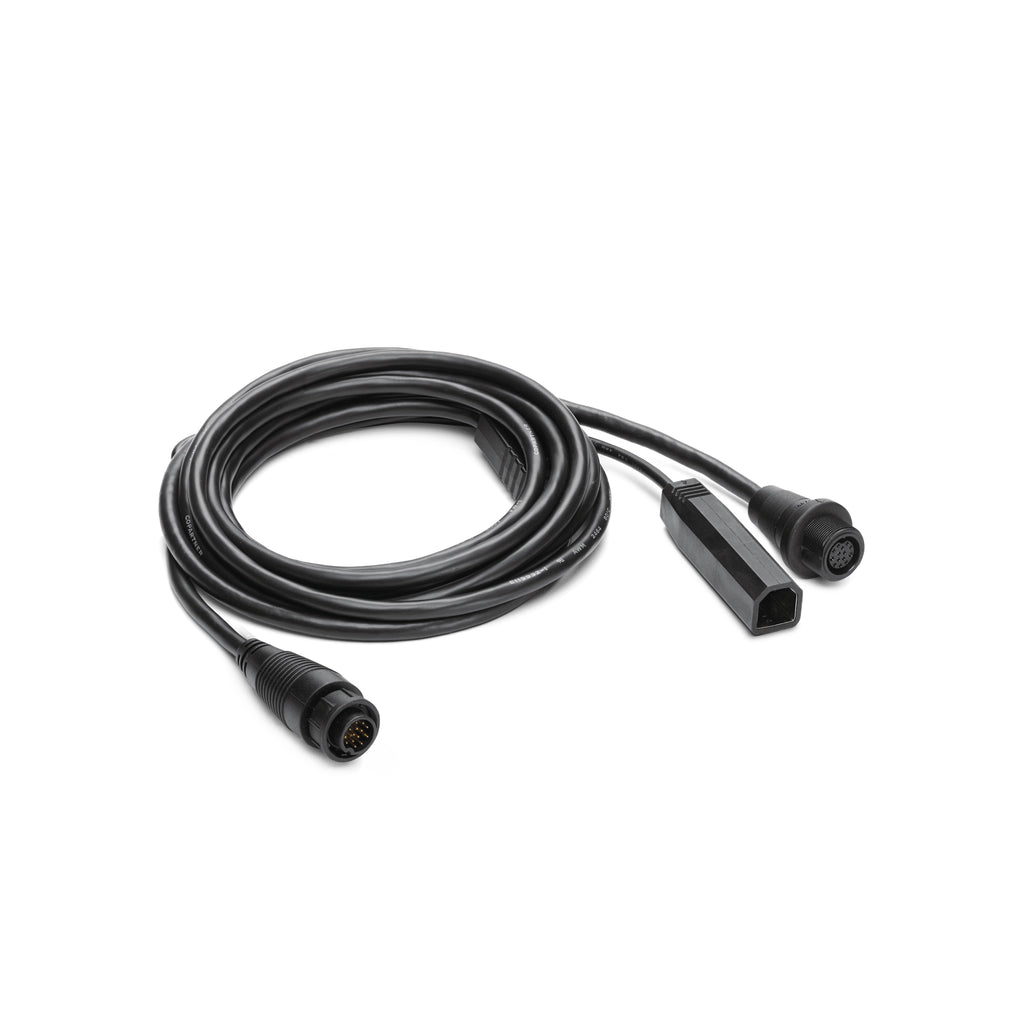

Humminbird 9-M360-2DDI-Y Y-Cable For M360 With Helix HW Transducers

Humminbird 9-M360-2DDI-Y Y-Cable For M360 With Helix HW Transducers

Humminbird 9-M360-2DDI-Y

Y-Cable For M360 With Helix HW Transducers

Model: 720107-1

• Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.


• For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer.


• This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to #720108-1 14 M360 2DDI Y for this specific rigging need.


• Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors


• 30" (76 cm) cable on Dual Sprectrum CHIRP side of cable


• 10' (3 m) cable on the MEGA 360 side


• 1-Year Limited Warranty

This Y cable allows for the connection a MEGA 360 Imaging transducer and an external 7-pin HW / MDI+ transducer to the same compatible HELIX fish finder.

Specifications
Current ModelsHELIX 10, HELIX 12, HELIX 8, HELIX 9LengthLess than 20'TypeTransducer Adapter Cables
