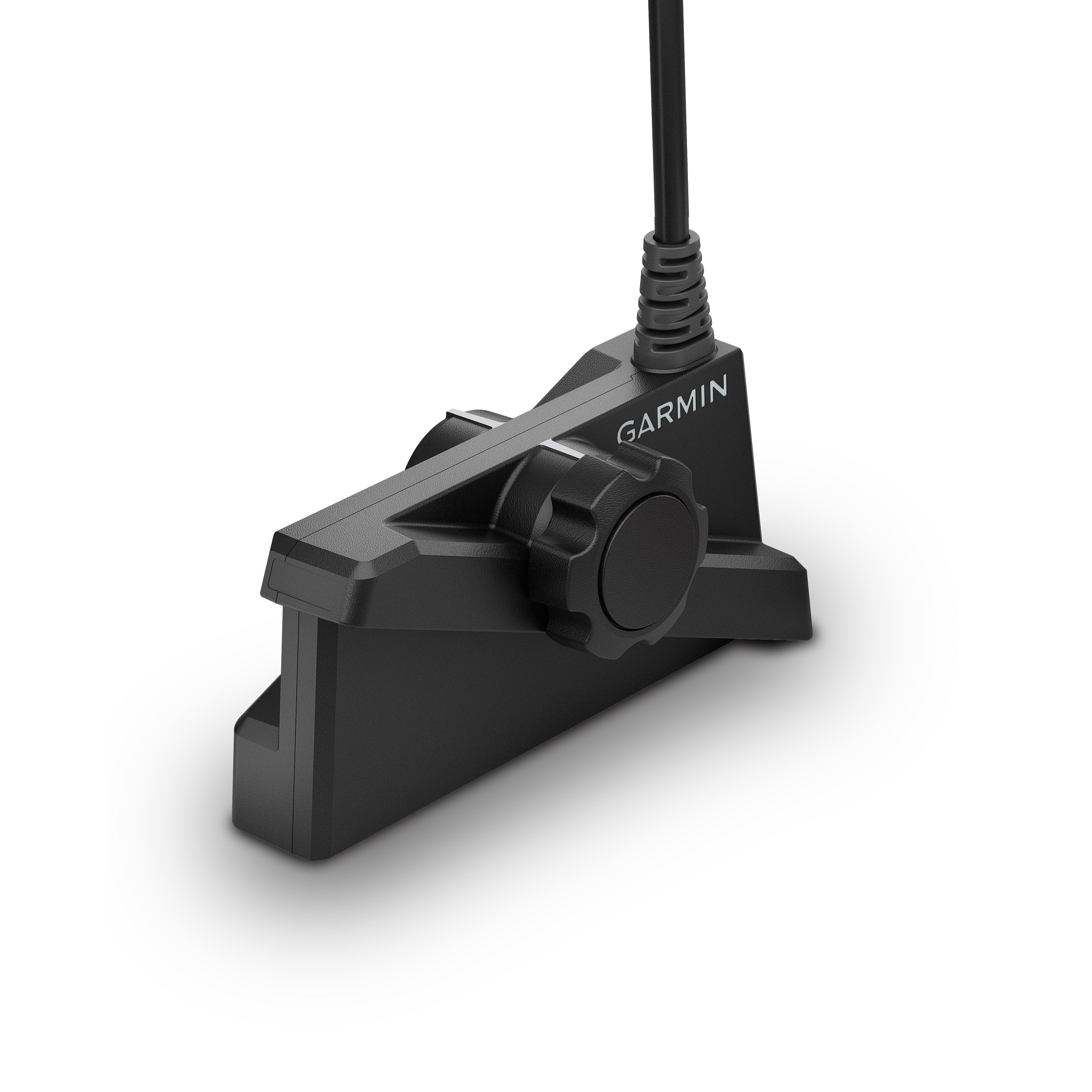

Garmin LVS34 Transducer Replacement for LiveScope Plus Transom/Trolling Motor Mount
Garmin LVS34 Transducer for Panoptix Livescop Plus
Model: 010-02706-10
- See images clearly with improved screen clarity, transducer sensitivity and target separation.
- Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
- Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
- Get maximum contrast and clarity in your images with vivid color palettes.
- Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
REAL-TIME IMAGES - Real-time sonar ensures that your live images are as accurate as possible
CLEAR VISION - See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILIZATION - A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOR PALETTES - Choose from seven vivid color options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.
SpecificationsGeneralDIMENSION6.4" x 3.1" x 1.9" (16.2 x 3.1 x 4.8 cm)WEIGHT2.25 lbs (1.02 kg)WATERPROOFWATERPROOFWATERPROOFOperating: 0 C to 40 C
Sonar Features & SpecificationsFREQUENCY530 - 1,100 kHzMAXDEPTHDown and Forward: 200’ (61.0 m)
ConnectionsCONNECTIONS GARMIN MARINE NETWORK PORTS1 (small connector)
Electrical FeaturesPOWER INPUT10-32 VPOWER USAGE21 W typical, 58 W maxTRANSMIT POWER500 WFUSE7.5 ACOMPASS-SAFE DISTANCE4" (0.1 m)
AdditionalMinimum depth3' (0.91 m)Sonar typeLiveBeamwidth20° x 135°Transducer cable length20 ftTransducer number of pins21
What's in the Box:
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Trolling motor barrel mount
- Documentation
