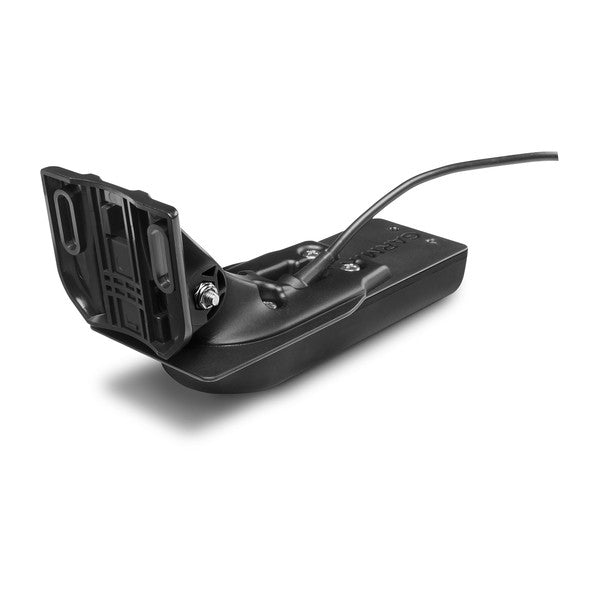

Garmin GT24UHD-TM Ultra HD Transom Mount Transducer

Garmin GT24UHD-TM Ultra HD Transom Mount Transducer

Garmin GT24UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer

Model: 010-12908-00

• One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar


• High wide CHIRP traditional sonar provides remarkably clear target separation and definition


• See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar


• Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

The GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.

Ultra High-Definition scanning sonar shows you incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü scanning sonar. It’s easy to install with included transom and trolling motor mounts so you can start fishing faster.

¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combos

Specifications
FrequencyTraditional CHIRPCHIRP High Wide (150-240 kHz)Ultra High-Definition ClearVü0.8 MHz (800 kHz), CHIRP range: 760-880 kHzUltra High-Definition SideVüNASideVüNAPowerTraditional CHIRP350 WUltra High-Definition ClearVü350 WUltra High-Definition SideVüNASideVüNABeamwidthTraditional CHIRPAdjustable from 16° to 24° in 1° stepsUltra High-Definition ClearVü0.94° x 60°Ultra High-Definition SideVüNASideVüNAMaximum depthTraditional CHIRP800’Ultra High-Definition ClearVü200'Ultra High-Definition SideVüNASideVüNAOtherSensorsDepth and TemperatureNumber of pins8-pin (blue connector)Cable length20 ft.Supported deadrise/Transom angles0°-70° degree transom
What's in the Box:

• GT24UHD-TM transducer


• Transom mount


• Trolling motor mount


• Mounting hardware


• Documentation
