Garmin GPSMAP8410XSV 10" Combo

Garmin GPSMAP8410XSV 10" Combo

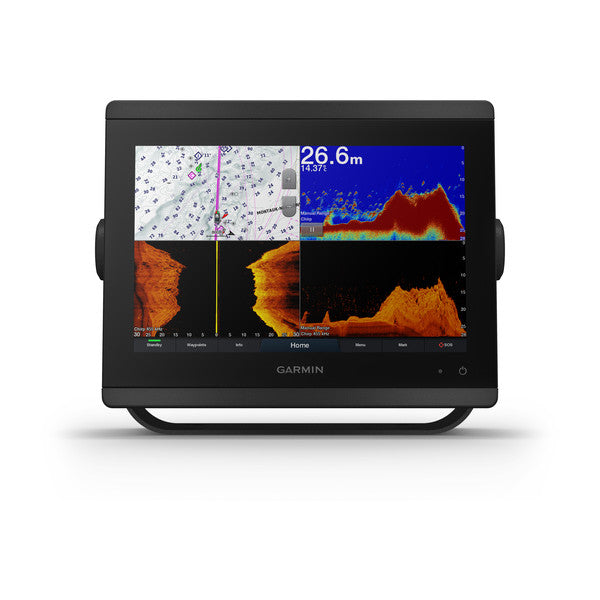

Garmin GPSMAP8410xsv 10" Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen

Model: 010-02091-02

• Features a 10" full HD IPS touchscreen display


• Built-in support for the full suite of Garmin sonar capabilities


• Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network


• Includes Bluetooth® connectivity, ANT® technology and Wi-Fi® networking


• SmartMode™ station controls enable quick, one-touch access to the information you need

Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8410xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 10" full HD in IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.

The GPSMAP 8410xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).

NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.

The GPSMAP 8410xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications , Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.

Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.

The Garmin SailAssist™ feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.

Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.

Specifications
GeneralPhysical dimensions10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)Weight5.2 lbs (2.4kg)Water ratingIPX6 and IPX7Display typetouchscreen IPS display (anti-glare finish)Display size8.6" x 5.4" (21.8 cm x 13.7 cm)Display resolutionWUXGA; 1920 x 1200 pixelsPower consumption2.7 AAntennaInternal or external over NMEA 2000Mounting optionsBail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)Receiver10 Hz GPS/GLONASS/GalileoGarmin Marine Network™ ports2Maps & MemoryAccepts data cards2 microSD cards (on back)Waypoints5,000Routes100 (250 waypoints each)Track log50,000 points; 50 saved trackspre-loaded mapsWorldwide BasemapOutdoor Recreation FeaturesTide tablesYesChartplotter FeaturesGarmin Radar compatibleYesGarmin Sonar compatibleYesGarmin SmartMode compatible (customizable monitor presets)YesSupports AIS (tracks target ships position)YesSupports DSC (displays position data from DSC-capable VHF radio)YesSupports FUSION-Link™ compatible radiosYesGSD™ Black Box sonar supportYesGCV™ Black Box sonar supportYesActiveCaptain compatibleYesGarmin Helm compatibleYesGRID™ (Garmin Remote Input Device) compatibleYesWireless remote compatibleYesSonar Features & SpecificationsDual-frequency (50/200 kHz) sonar capableYesDual-beam (77/200 kHz) sonar capableYesFrequencies supported RegularTraditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250
Dual Channel CHIRP: 40-250
SideVü/ClearVü: CHIRP 260/455/800
(dependent on transducer)Frequencies supported Ultra High DefinitionUltra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
(dependent on transducer)Transmit power1 kW traditional; 1 kW CHIRPCHIRP sonar technologyYes (Built-in)ClearVüYesSideVüYesMaximum depth5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)ConnectionsNMEA 2000® compatibleYesTransducer pin numbers1 — LVS sonar, 1 — 12 pin scanning sonar, 1- 8 pin sonarNMEA 0183 input ports1 differentialNMEA 0183 output ports1 differentialVideo input ports1 - BNC composite
1 - HDMI (HDCP compliant)Video output ports1 HDMIWireless connectivityYes
What's in the Box:

• GPSMAP 8410xsv


• Power cable


• NMEA 2000® drop cable


• NMEA 2000 T-connector


• Bail mount with knobs


• Flush mount kit


• Sun cover


• Trim piece snap covers


• Documentation
