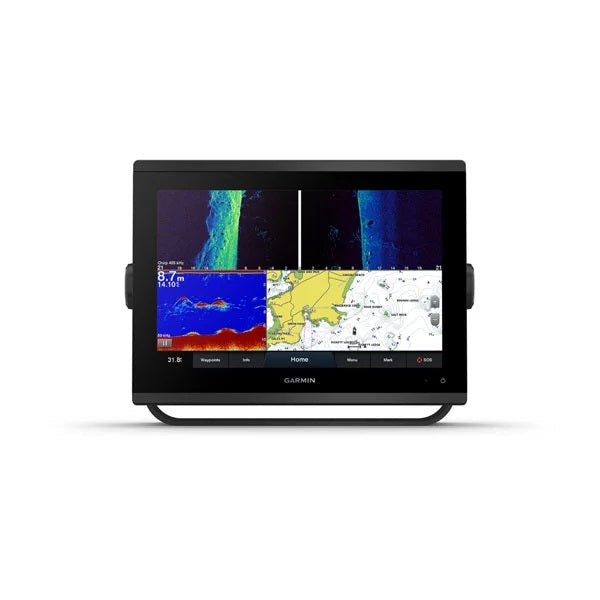

Garmin GPSMAP® 1223xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap

Model: 010-02367-02

• Easily integrate with more engines.


• Connect to compatible third-party devices with OneHelm™ digital switching.


• Easily build your marine system using the best of network connectivity.


• Navigate any waters with preloaded mapping and coastal charts.


• See below your boat with built-in sonar capabilities.


• Manage your marine experience from nearly anywhere.

With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.

Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Specifications
GeneralPHYSICAL DIMENSIONS12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)DISPLAY SIZE10.3" x 6.4"; 12.1" diagonalDISPLAY RESOLUTION1280 x 800 pixelsDISPLAY TYPEWXGA displayWEIGHT6.6 lbs. (3.0 kg)WATER RATINGIPX7POLARIZED SUPPORTYesPOWER CONSUMPTIONMax power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 AANTENNAInternal or external over NMEA 2000MOUNTING OPTIONSBail, flush or flatRECEIVER10 Hz high-sensitivityGARMIN MARINE NETWORK™ PORTS2TRANSMIT POWER1 kW traditional; 1 kW CHIRPMaps & MemoryPRELOADED MAPSworldwide basemapACCEPTS DATA CARDS2 microSD™ cards (back of unit)WAYPOINTS5,000TRACK LOG50,000 points; 50 saved tracksROUTES100Outdoor RecreationTIDE TABLESYesChartplotter FeaturesGARMIN RADAR COMPATIBLEYesGARMIN SONAR COMPATIBLEYes (built-in)GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)YesSUPPORTS AIS (TRACKS TARGET SHIPS POSITION)YesSUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)YesSUPPORTS FUSION-LINK™ COMPATIBLE RADIOSYesGSD™ BLACK BOX SONAR SUPPORTYesGCV™ BLACK BOX SONAR SUPPORTYesACTIVECAPTAIN COMPATIBLEYesGRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLEYesWIRELESS REMOTE COMPATIBLEYesSAILING FEATURESYesSonar Features & SpecificationsDUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLEYesDUAL-BEAM (77/200 KHZ) SONAR CAPABLEYesFREQUENCIES SUPPORTEDTraditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer)CHIRP SONAR TECHNOLOGYYes (Built-in)CLEARVüYes with CHIRP (built-in)SIDEVüYes with CHIRP (built-in)MAXIMUM DEPTH5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)YesWATER TEMPERATURE LOG AND GRAPHYesSONAR RECORDINGYesSONAR HISTORY REWINDYesConnectionsNMEA 2000® COMPATIBLEYesTRANSDUCER PIN NUMBERS12-pin (orange)NMEA 0183 INPUT PORTS1NMEA 0183 OUTPUT PORTS1VIDEO INPUT PORTS1 BNCVIDEO OUTPUT PORTS1 HDMIWIRELESS CONNECTIVITYYesJ1939 COMPATIBLEYes
What's in the Box:

• GPSMAP 1223xsv chartplotter


• microSD™ card preinstalled


• Power cable


• NMEA 2000® T-connector


• NMEA 2000 drop cable (2 meters)


• Bail mount kit with knobs


• Flush mount kit with gasket


• Protective cover


• Trim piece snap covers


• Documentation


• 8-pin transducer to 12-pin sounder adapter cable
