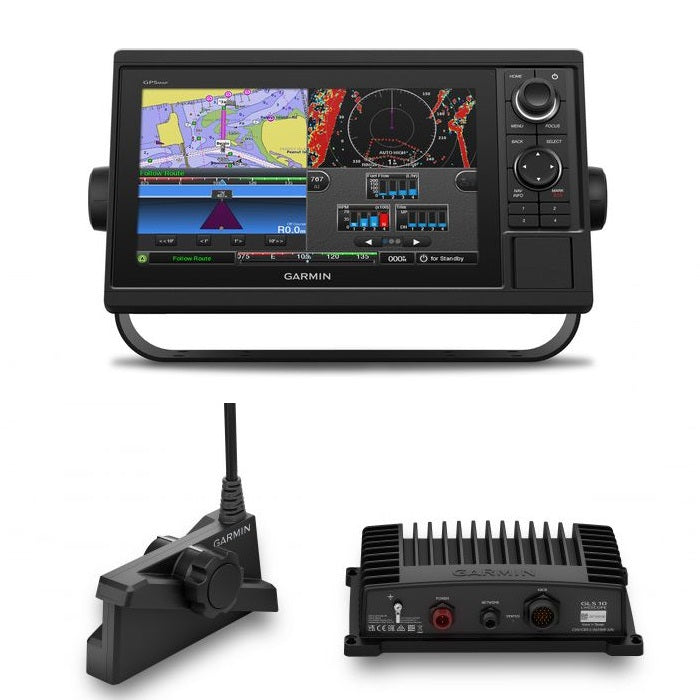

Garmin GPSMAP® 1222 12-inch Chartplotter LIVESCOPE Plus Bundle with Worldwide Basemap

Model: 010-01741-00/LVS34
UPC: 753759168339

• 12-inch color display with keypad interface and multifunction control knob


• High-sensitivity internal 10 Hz GPS and GLONASS receiver


• Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support


• Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features

GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Enjoy built-in Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm allows you to view and control your compatible chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. With BlueChart Mobile, a free app downloaded from the App Store, you can get reliable weather information while you plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. You can even stream and control a VIRB action camera from the chartplotter.

Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix in-view display, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls.

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Two SD card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance and other great features.

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Specifications

Performance and Physical

Dimensions
14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)

Display size
10.3" x 6.4" (26.2 x 16.3 cm)

Display resolution
1280 x 800

Display type
WXGA display

Weight
5.2 lbs

Water rating
IPX7

Antenna
Internal or external over NMEA 2000

NMEA 2000® compatible
Yes

NMEA 0183 compatible
Yes

SiriusXM Weather & Radio compatible
Yes

Power consumption
Max power usage at 10 Vdc: 34.8 W
Typical current draw at 12 Vdc: 2.2 A
Max current draw at 12 Vdc: 2.9 A

Mounting options
Bail or flush

Maps and Memory

Preloaded maps
None

Accepts data card
2 SD cards

Waypoints
5,000

Routes
100

Track log
50,000 points; 50 saved tracks

Outdoor Recreation Features

Tide tables
Yes

Chartplotter Features

Garmin Radar compatible
Yes

Garmin Sonar compatible
Yes (with external black box, sold separately)

Garmin SmartMode compatible (customizable monitor presets)
Yes

Supports AIS (tracks target ships position)
Yes

Supports DSC (displays position data from DSC-capable VHF radio)
Yes

Garmin Meteor Audio System compatible
Yes

Supports FUSION-Link compatible radios
Yes

GSD Black Box sonar support
Yes

GCV Black Box sonar support
Yes

ActiveCaptain compatible
Yes

Garmin Helm compatible
Yes

GRID (Garmin Remote Input Device) compatible
Yes

Wireless remote compatible
Yes

Sonar Features & Specifications

CHIRP sonar technology
Yes (with external black box, sold separately)

ClearVü
Yes (with external black box, sold separately)

SideVü
Yes (with external black box, sold separately)

Connections

NMEA 2000® compatible
Yes

NMEA 0183 input ports
1

NMEA 0183 output ports
1

Video input ports
1 BNC

Video output ports
None

Wireless connectivity
Yes

What's in the Box:

• GPSMAP 1222 chartplotter


• Power/data cable


• NMEA 2000 T-connector


• NMEA 2000 drop cable (2 m)


• Bail mount kit with knobs


• Flush mount kit with gasket


• Protective cover


• Trim piece snap covers


• Documentation


• LIVESCOPE Plus
