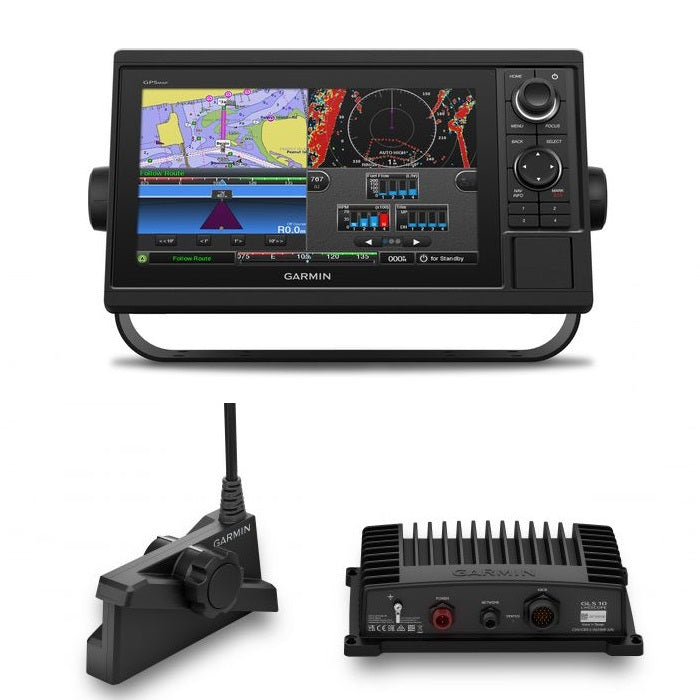

Garmin GPSMAP® 1022 10-inch Chartplotter LIVESCOPE Plus Bundle

Model: 010-01740-00/LVS34
UPC: 753759168308

• 10-inch color display with keypad interface and multifunction control knob


• High-sensitivity internal 10 Hz GPS and GLONASS receiver


• Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support


• Supports optional BlueChart® g3 Vision® premium charts

GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

Specifications

Performance and Physical

Dimensions
12.5" x 7.3" x 2.7" (318 x 185 x 69 cm)

Display size
8.8" x 4.9" (224 x 125 cm)

Display resolution
1024 x 600

Display type
WSVGA display

Weight
4.1lbs

Water rating
IPX7

Power consumption
Max power usage at 10 Vdc: 32.4 W

Antenna
Internal or external over NMEA 2000

Mounting options
Bail or flush

Receiver
10 Hz high-sensitivity

Garmin Marine Network ports
2

Preloaded maps
None

Accepts data cards
2 SD cards

Waypoints
5,000

Routes
100

Track log
50,000 points; 50 saved tracks

Tide tables
Yes

Garmin Radar compatible
Yes

Garmin Sonar compatible
Yes (with external black box, sold separately)

Garmin SmartMode compatible (customizable monitor presets)
Yes

Supports AIS (tracks target ships position)
Yes

Supports DSC (displays position data from DSC-capable VHF radio)
Yes

Garmin Meteor Audio System compatible
Yes

Supports FUSION-Link compatible radios
Yes

GSD Black Box sonar support
Yes

GCV Black Box sonar support
Yes

ActiveCaptain compatible
Yes

Garmin Helm compatible
Yes

GRID (Garmin Remote Input Device) compatible
Yes

Wireless remote compatible
Yes

CHIRP sonar technology
Yes (with external black box, sold separately)

ClearVü
Yes (with external black box, sold separately)

SideVü
Yes (with external black box, sold separately)

NMEA 2000® compatible
Yes

NMEA 0183 input ports
1

NMEA 0183 output ports
1

Video input ports
1 BNC

Video output ports
None

Wireless connectivity
Yes

What's in the Box:

• GPSMAP 1022 chartplotter


• Power/data cable


• NMEA 2000 T-connector


• NMEA 2000 drop cable (2 m)


• Bail mount kit with knobs


• Flush mount kit with gasket


• Protective cover


• Trim piece snap covers


• Documentation


• LIVESCOPE Plus
