Garmin Force Pro Trolling Motor 57in Shaft Built-in GT56UHD-TR

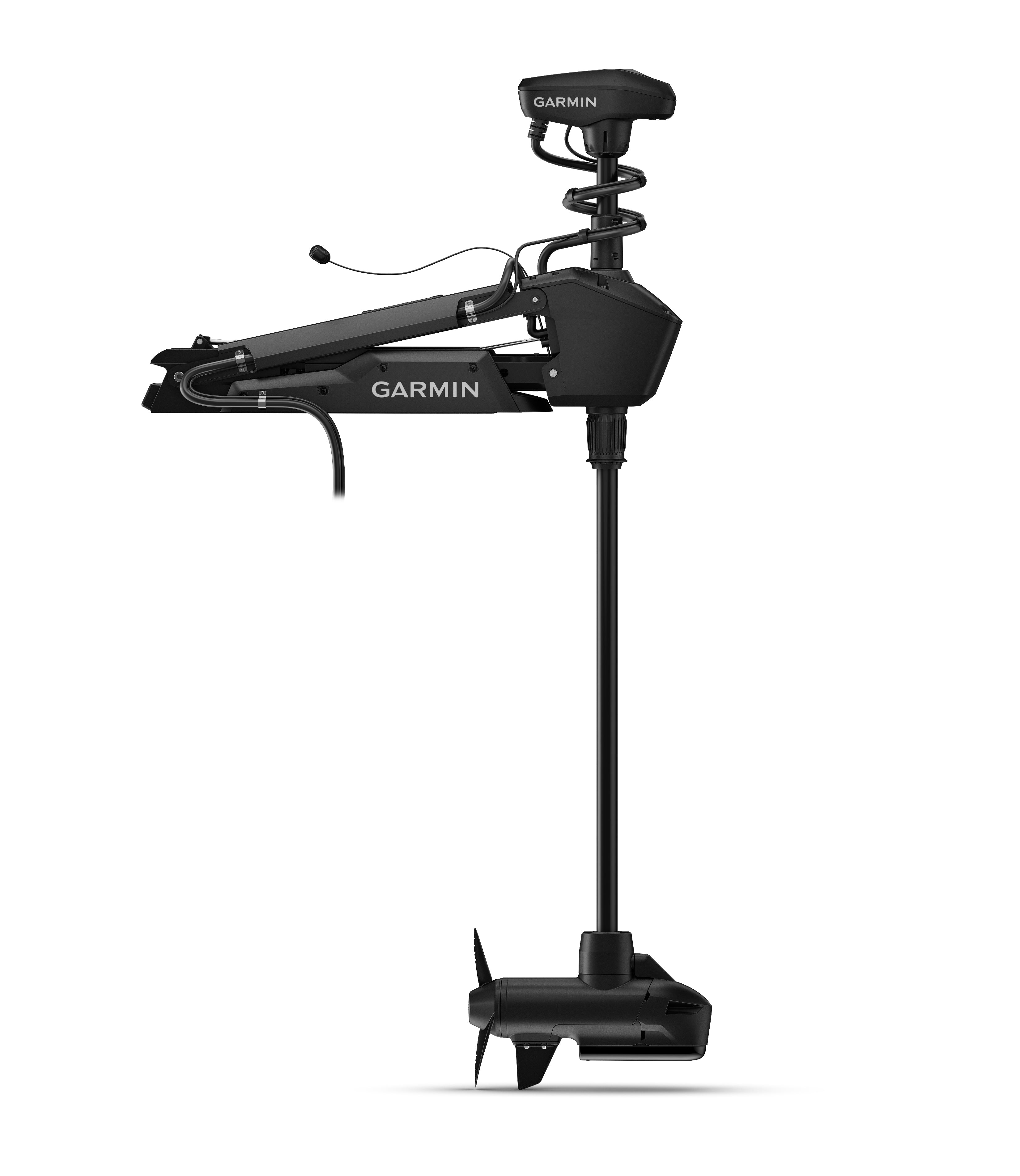

Garmin Force® Pro Trolling Motor Black 57in Trolling Motor with Built-In GT56UHD-TR Transducer
Model: 010-03011-10- Trolling motor with legendary power and performance
- Multiband GPS provides superior positioning accuracy when in anchor lock, heading hold or while following a route
- Includes two props: high efficiency and weedless
- Wireless integration with your Garmin chartplotters allows you to create routes and control steering, thrust level, anchor lock positioning and more
- Easy installation with the scissor-style mount, which includes a durable pull cable and dual gas springs for easy deployment and stowing
- Get brilliant UHD scanning sonar with the included GT56UHD transducer
- Clear sonar returns with extremely low levels of noise
- Don’t spook the fish; motor is extremely quiet above and below the water
- Auto forward feature pre-aligns the motor so it’s forward facing upon deployment
- Lighted indicator on the shaft cap lets you see motor direction in low light
- Manual reverse prop spin lets you easily blow off weeds when necessary
- Saltwater durable with advanced corrosion protection
Fish with force with Force® Pro, the trolling motor with legendary power and performance. With its scissor-style mount and choice of 50" or 57" shaft lengths, it’s designed specifically for bass boats. See everything around your boat with brilliant high-definition scanning sonar with the included all-in-one GT56UHD transducer. And once you’ve found the spot, stay put with our most precise anchor lock technology, now featuring reverse prop spin and calm-water cable unwrap to reduce motor activity. Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control. You can also use your integrated chartplotter to draw a route, and the trolling motor will automatically navigate while you fish. The lighted indicator on the trolling motor shaft cap means you can fish in low light and always know what direction you’re headed.
SpecificationsGeneral
Color
Black
For use in
freshwater, brackish water and saltwater
Mount style
scissor-style mount
Max thrust
100 lbs per ISO 13342 using high efficiency propeller at 36 / 80 lbs per ISO 13342 using high efficiency propeller at 24 V
Voltage
24 V or 36 V
Electric steering
Yes
Lift-assist
dual gas springs
Built-in heading sensor
Yes
Built-in GPS
Yes (dual frequency GPS)
Warranty
3-year, limited lifetime on shaft
Water rating
IPX7
Mounting location
Bow
Wireless remote
Yes (included)
Foot pedal compatible
Yes (included)
Battery indicator
Yes
Variable speed control
Yes (20 steps)
Lighted direction indicator
Yes
Deck stabilizer
Yes (included)
Quatix remote control supported
Yes
Manual reverse control
Yes
Sonar Features
Frequencies supported
Traditional: High-wide CHIRP (150-240 kHz) ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
Transmit power
Traditional: 350 W ClearVu/SideVu: 500 W
Maximum depth
CHIRP sonar: 800' freshwater ClearVu: 400' SideVu: 500'
Depth/speed/temperature
depth and temperature
Number of pins
12-pin (orange connector)
Autopilot Features
Route following
Yes
Anchor lock
Yes
Smart Anchor Lock features
Yes
Anchor lock jog
Yes
Heading hold
Yes
Cruise control
Yes
Gesture features
Yes (manual+, heading hold+, jog+)
Foot Pedal Features
Dimensions
12" L x 9" W x 4 1/2" H
Wireless communication
Yes
Power installation
12 V/24 V/36 V wired or battery powered (2 AA)
AA battery life
1 full season
Water rating
IPX7
Adjustable pedal resistance
Yes
Remote Features
Display size
1.2" (30.2 mm) diameter
Display resolution
240 x 240 pixels
Display type
color, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter user-programmable keys
Yes
Autopilot feature control
Yes
Water rating
IPX7
Battery life
Typical use with backlight at low, 43 weeks
Floats
Yes
What's in the Box:
- Force® Pro Trolling Motor
- High efficiency propeller
- Weedless propeller
- Foot pedal
- Remote
- Stabilizer
- Assembly and mounting hardware
- Documentation
