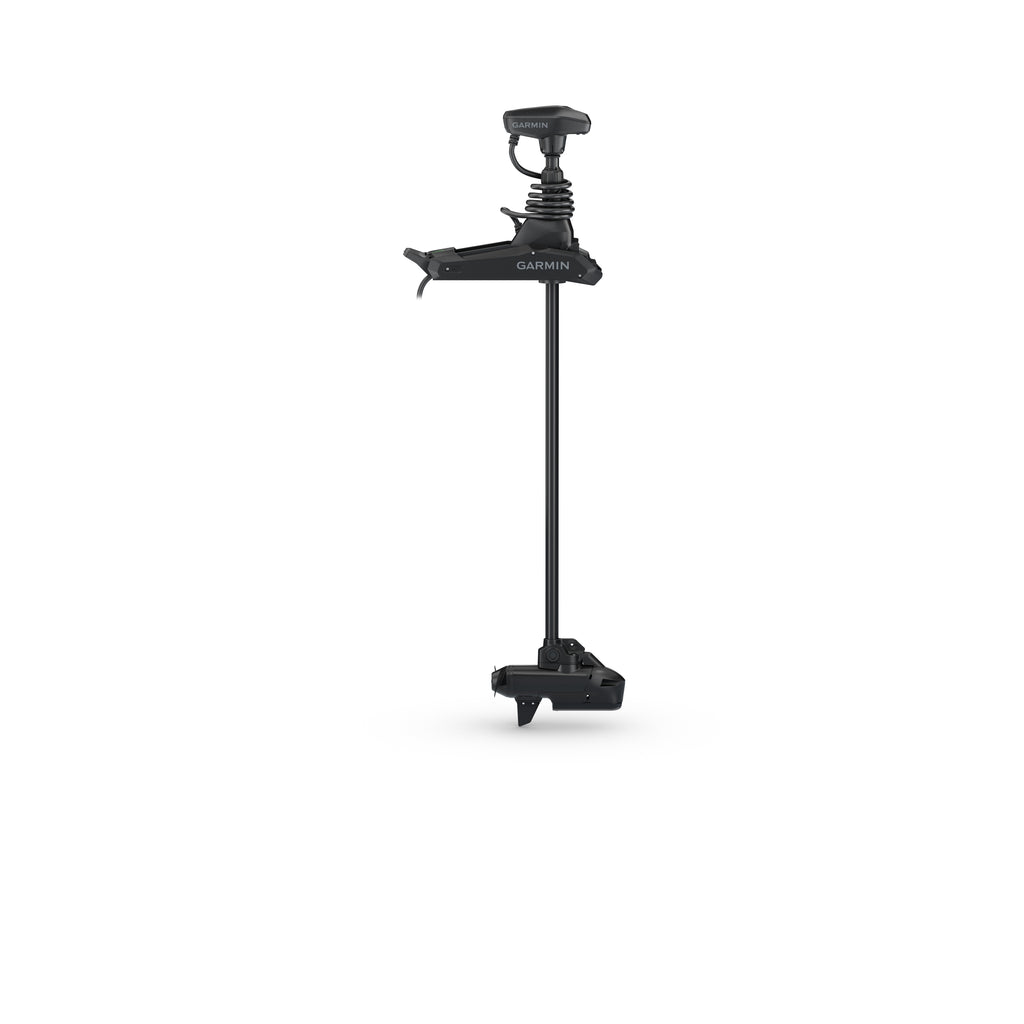

Garmin Force Kraken Trolling Motor Black 75" Shaft with GT56UHD-TR

Garmin Force Kraken Trolling Motor Black 75" Shaft with GT56UHD-TR

Garmin Force Kraken Black trolling Motor 75" Shaft with GT56UHD-TR Transducer

Model: 010-02573-10

• Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342)


• Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold


• Wireless integration with your Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow while you fish


• Easy installation where bow space is limited, thanks to the pivot-style mount


• Sturdy composite shaft is built to endure harsh marine environments


• LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft


• Get brilliant UHD sonar with our leading clarity with the included GT56 transducer


• Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design


• Clear sonar returns with extremely low levels of unwanted noise


• Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery


• Don’t spook the fish; motor is extremely quiet above and below the water


• Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down


• Built with advanced corrosion protection

There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls where bow space is limited. Get a clear view of what’s below your boat with the included GT56 transducer. Once you’ve found the spot, stay put with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat.

Specifications
GeneralCOLORblackFOR USE INfreshwater, brackish water and saltwaterWATER RATINGIPX7MOUNTING LOCATIONbowMOUNT STYLEpivot-style mountMAX THRUST100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 VdcBUILT-IN HEADING SENSORYesBUILT-IN GPSYes (dual frequency GPS)WARRANTY3-year, limited lifetime on shaftWIRELESS REMOTEYes (included)FOOT PEDAL COMPATIBLEYesBATTERY INDICATORYesVARIABLE SPEED CONTROLYes (20 steps)LIGHTED DIRECTION INDICATORYes Sonar Features & SpecificationsFREQUENCIES SUPPORTEDCHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) SideVü:455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)MAXIMUM DEPTHCHIRP sonar: 800 ft freshwater ClearVü: 400 ft; SideVü: 500 ftNUMBER OF PINS12-pin (orange connector)LIVESCOPE CABLE INTEGRATIONYes (LiveScope transducer and Kraken Mounting Bracket purchases required)QUATIX REMOTE CONTROL SUPPORTEDYes
What's in the Box:

• 75" Shaft Black Force Kraken


• GT56UHD-TR transducer


• Remote Control


• High-efficiency Propeller


• Assembly and mounting Hardware


• Documentation
