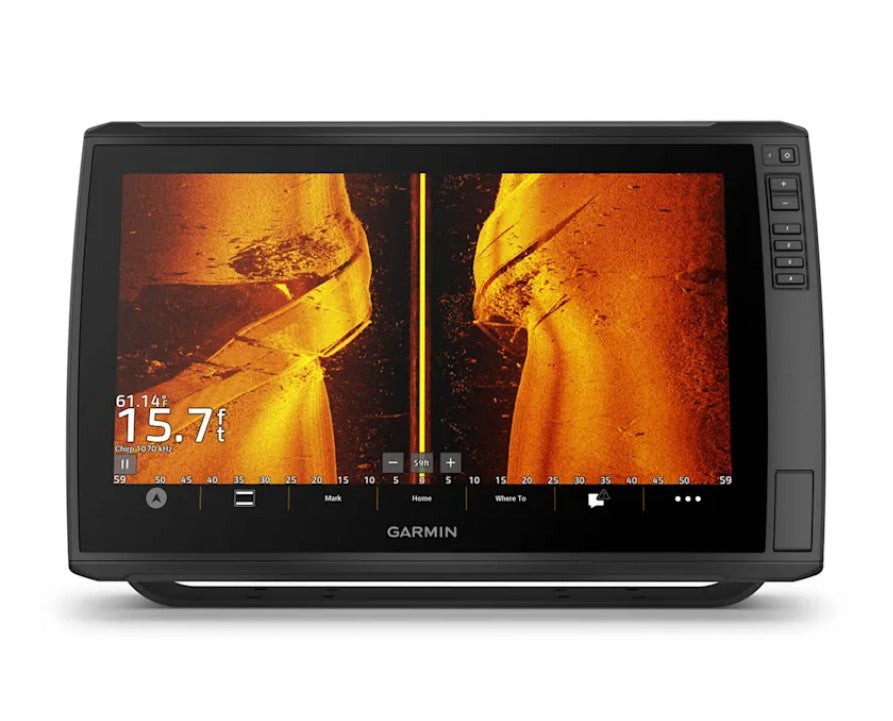

Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ No Transducer

Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ No Transducer

Model: 010-03386-00

• 16-INCH TOUCHSCREEN WITH KEYED ASSIST


• HDMI OUTPUT CONNECTORS FOR SCREEN SHARING


• BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES


• SUPPORTS LIVESCOPE SONAR AND MORE


• WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES


• MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+ mapping. Plus, there’s support for the full line of LiveScope sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.

LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.

PRELOADED CHARTS: Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more. For added features, Garmin Navionics Vision+ premium mapping is optionally available (sold separately).

HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.

VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.

VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Specifications

General

Dimension
16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)

Weight
9.5 lbs (4.31 kg)

Water rating
IPX7

Touchscreen
Yes

Display Type
FHD, IPS

Display Size
13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)

Display resolution
1920 x 1080 pixels

Mounting Options
Bail or flush

Input
Touchscreen with Keyed Assist

Maps & Memory

Accepts Data Cards
2 microSD cards

Waypoints
5000

Track points
50,000

Tracks
50 saved tracks

Navigation Routes
100

Sensors

GPS
Yes

GLONASS
Yes

Galileo
Yes

BeiDou
Yes

Has built-in receiver
Yes

Receiver
10 Hz

NMEA 2000 Compatible
Yes

NMEA 0183 Compatible
Yes

Supports WAAS
Yes

Supports multi-band, multi-constellation GPS
Yes

Optional Map Support

BlueChart g3
Yes

BlueChart g3 Vision
Yes

LakeVü g3
Yes

LakeVü g3 Ultra
Yes

Garmin Navionics Vision+
Yes

TOPO 100K
Yes

Standard Mapping
Yes

Garmin Quickdraw Contours
Yes

Chartplotter Features

AIS
Yes

DSC
Yes

Supports Fusion-Link compatible radios
Yes

ActiveCaptain® compatible
Yes

Supports voice commands
Yes

Sailing Features
Yes

Electrical Features

Power Input
9 to 18 Vdc

Typical current draw at 12 Vdc
3.9 A

Maximum current draw at 12 Vdc
6.6 A

Maximum power usage at 10 Vdc
48 W

Sonar Features

Displays sonar
Yes

Power output
600 W

Traditional sonar (dual frequency/beam)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

ClearVü
Built-in 260/455/800/1000/1200 kHz

SideVü
Built-in 260/455/800/1000/1200 kHz

Panoptix sonar
Yes

LiveScope
Yes

Connections

NMEA 2000® ports
1

Video output ports
1 HDMI

Garmin Marine Network Ports
2 (large connector)

12-pin transducer ports
12-pin scanning sonar

BLUETOOTH® pairing
Yes

What's in the Box:

• ECHOMAP Ultra 166sv with Garmin Navionics+


• GT56UHD-TM transducer


• Power cable


• Bail mount with knobs


• Protective sun cover


• Trim caps


• Hardware


• Documentation
