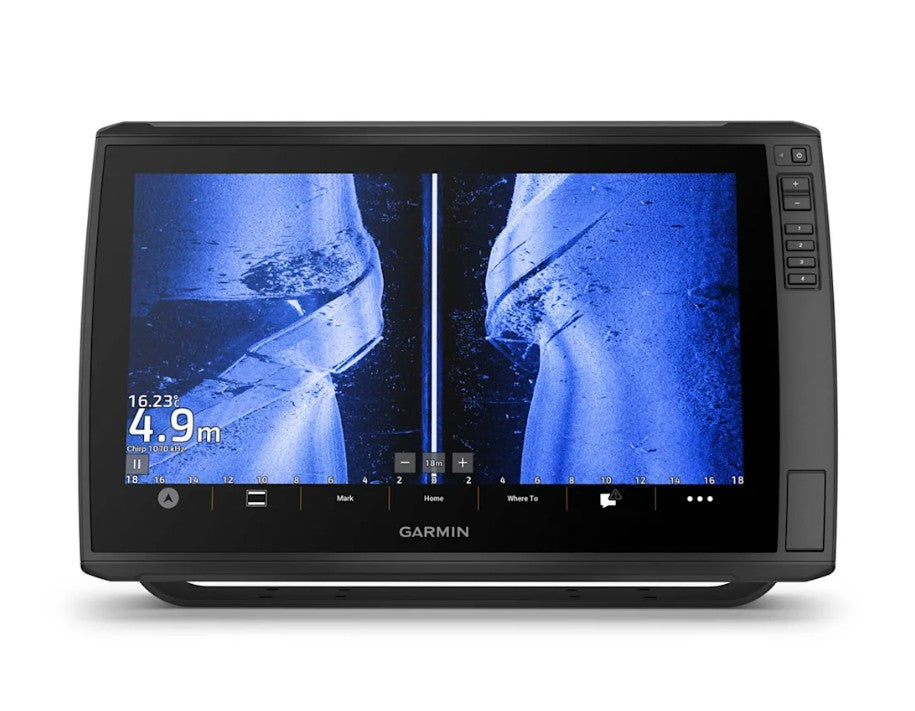

Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap No Transducer
Model: 010-03385-00
- 16-INCH TOUCHSCREEN WITH KEYED ASSIST
- HDMI OUTPUT CONNECTORS FOR SCREEN SHARING
- BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES
- SUPPORTS LIVESCOPE SONAR AND MORE
- WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES
- MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+ mapping. Plus, there’s support for the full line of LiveScope sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.
HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.
VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.
VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Specifications
General
Dimension
16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
Weight
9.5 lbs (4.31 kg)
Water rating
IPX7
Touchscreen
Yes
Display Type
FHD, IPS
Display Size
13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)
Display resolution
1920 x 1080 pixels
Mounting Options
Bail or flush
Input
Touchscreen with Keyed Assist
Maps & Memory
Accepts Data Cards
2 microSD cards
Waypoints
5000
Track points
50,000
Tracks
50 saved tracks
Navigation Routes
100
Sensors
GPS
Yes
GLONASS
Yes
Galileo
Yes
BeiDou
Yes
Has built-in receiver
Yes
Receiver
10 Hz
NMEA 2000 Compatible
Yes
NMEA 0183 Compatible
Yes
Supports WAAS
Yes
Supports multi-band, multi-constellation GPS
Yes
Optional Map Support
BlueChart g3
Yes
BlueChart g3 Vision
Yes
LakeVü g3
Yes
LakeVü g3 Ultra
Yes
Garmin Navionics+
Yes
Garmin Navionics Vision+
Yes
TOPO 100K
Yes
Standard Mapping
Yes
Garmin Quickdraw Contours
Yes
Chartplotter Features
AIS
Yes
DSC
Yes
Supports Fusion-Link compatible radios
Yes
ActiveCaptain® compatible
Yes
Supports voice commands
Yes
Sailing Features
Yes
Electrical Features
Power Input
9 to 18 Vdc
Typical current draw at 12 Vdc
3.9 A
Maximum current draw at 12 Vdc
6.6 A
Maximum power usage at 10 Vdc
48 W
Sonar Features
Displays sonar
Yes
Power output
600 W
Traditional sonar (dual frequency/beam)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü
Built-in 260/455/800/1000/1200 kHz
SideVü
Built-in 260/455/800/1000/1200 kHz
Panoptix sonar
Yes
LiveScope
Yes
Connections
NMEA 2000® ports
1
Video output ports
1 HDMI
Garmin Marine Network Ports
2 (large connector)
12-pin transducer ports
12-pin scanning sonar
What's in the Box:
- ECHOMAP Ultra 162sv
- Power cable
- Bail mount with knobs
- Protective sun cover
- Trim caps
- 8-pin transducer to 12-pin sounder adapter cable
- Hardware
- Documentation
