Garmin ECHOMAP Ultra 2 122sv LIVESCOPE Plus Bundle Worldwide Basemap No Ducer

Garmin ECHOMAP Ultra 2 122sv LIVESCOPE Plus Bundle Worldwide Basemap No Ducer

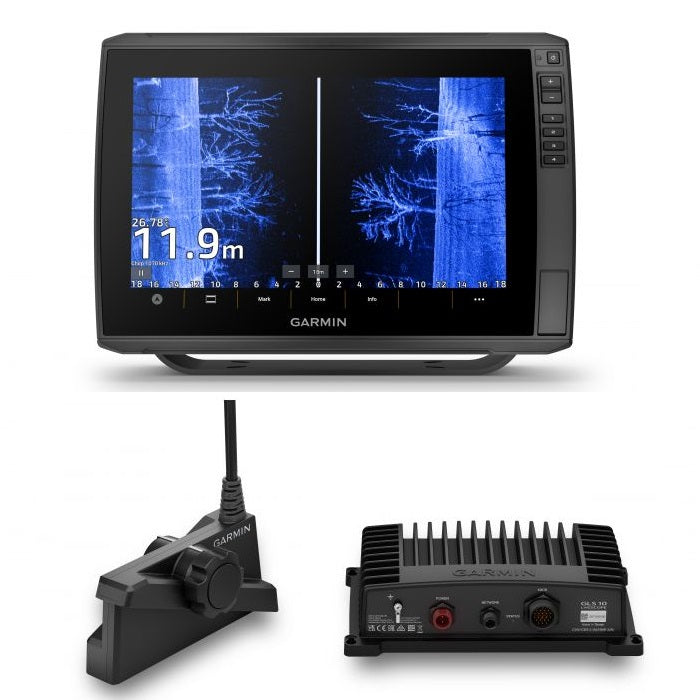

Garmin ECHOMAP™ Ultra 2 122sv 12" Chartplotter LIVESCOPE Plus Bundle without Transducer

Model: 010-02881-00/LIVESCOPE

• SUPPORTS LIVESCOPE™ SONAR1 AND MORE


• WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES²



• CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES


• MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.

If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.

1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

Specifications

General

DIMENSION
13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)

WEIGHT
5.5 lbs (2.5 kg)

WATERPROOF
IPX7

TOUCHSCREEN
Yes

DISPLAY TYPE
WXGA, IPS

DISPLAY SIZE
10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)

DISPLAY RESOLUTION
1280 x 800 pixels

MOUNTING OPTIONS
Bail or flush

INPUT
Touchscreen with Keyed Assist

Maps & Memory

ACCEPTS DATA CARDS
2 microSD cards

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Sensors

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

NMEA 0183 COMPATIBLE
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Built-in Maps

BUILT-IN AUTO GUIDANCE+
Yes

GARMIN NAVIONICS+ INLAND & COASTAL
No

TIDE TABLES
No

Optional Map Support

BLUECHART G3
Yes

BLUECHART G3 VISION
Yes

LAKEVü G3
Yes

LAKEVü G3 ULTRA
Yes

GARMIN NAVIONICS+™
Yes

GARMIN NAVIONICS VISION+™
Yes

TOPO 100K
Yes

STANDARD MAPPING
Yes

GARMIN QUICKDRAW CONTOURS
Yes

Electrical Features

POWER INPUT
9 to 18 Vdc

TYPICAL CURRENT DRAW AT 12 VDC
2.5 A

MAXIMUM CURRENT DRAW AT 12 VDC
5.0 A

MAXIMUM POWER USAGE AT 10 VDC
36 W

Connections

NMEA 2000® PORTS
1

GARMIN MARINE NETWORK PORTS
2 (large connector)

12-PIN TRANSDUCER PORTS
12-pin scanning sonar

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Sonar Features

DISPLAYS SONAR
Yes

POWER OUTPUT
600 watt

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVü
built-in 260/455/800/1000/1200 kHz

SIDEVü
built-in 260/455/800/1000/1200 kHz

PANOPTIX™ SONAR
Yes

LIVESCOPE
Yes

What's in the Box:

• ECHOMAP Ultra 122sv


• Power/data cable


• Bail mount with quick release cradle


• Protective sun cover


• 8-pin transducer to 12-pin sounder adapter cable


• Hardware


• Documentation


• LIVESCOPE Plus
