Fusion SG-F653SPG 6.5 Speaker Signature Series 230 Watts Sport Grille Gray

Fusion SG-F653SPG 6.5 Speaker Signature Series 230 Watts Sport Grille Gray

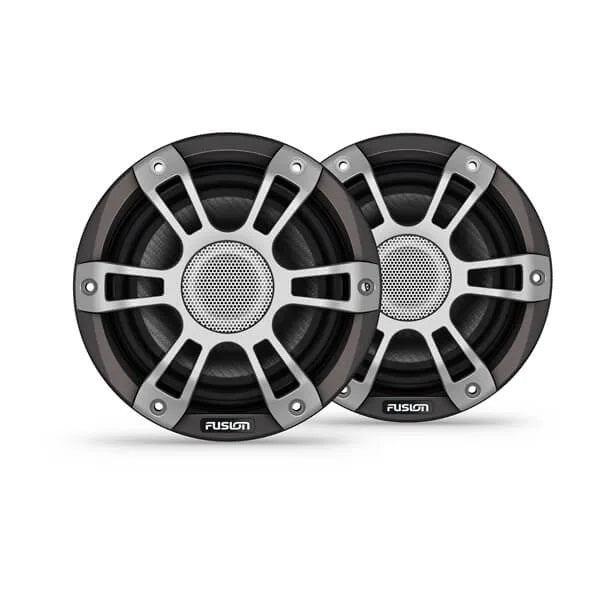

Fusion Signature Series 3i Marine 6.5" 230-watt Coaxial Sports Gray Marine Speakers (Pair)

Model: 010-02771-21

• Crystal-clear premium sound quality is suited for the marine environment.


• Water-resistant connectors provide simplified installation and superior protection.


• The rigorously tested marinized design has an IP65 rating.


• Built to last season after season, the Signature Series 3i coaxial speakers include a supported 3-year warranty.

Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

A lighter and stronger woven fiber composite produces greater sound definition at a higher volume.

These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.

Specifications
GeneralPhysical dimensions (Diameter x Depth)7.87" x 4.06" (200 x 103 mm)Weight6.5" sports speaker: 2.8 lbs (1.29 kg)Water and dust ratingIP65ConfigurationCoaxialPeak power (watts)230 wattsRMS power rating (watts)75 wattsSensitivity (1 watt @ 1 meter)90 dBFrequency response70 Hz—22 kHzNominal impedance4 ohmRecommended amplifier power (watts RMS)30—90 watts/channelLED lightingNALED supply voltageNALED load current @14.4 VDC (max)NAOperating temperature range32—122 degrees F (0—50 degrees C)Voice coil diameter1.2"Cone materialCURV® Cone Technology with rubber surroundTweeter typeSilk domeCompass-safe distance122" (310 cm)Speaker connectionFlying lead with water-resistant 2-way connector, 5.9" (150 mm)LED connection (sports style with LED models only)NAWarranty3 yearsMounting DimensionsMounting diameter clearance5.35" (136 mm)Mounting depth clearance3.11" (79 mm)Optimum Enclosure RecommendationsSealed enclosure volume (fully filled with absorption material)0.64 cubic ft (18 L)Ported (vented) enclosure volume (lined with absorption material)0.88 cubic ft (25 L)Port diameter3" (76 mm)Port length6.4" (162 mm)
What's in the Box:

• 6.5" 230-watt Coaxial Sports Gray Marine Speakers (Pair)


• 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6")


• 2 water-resistant cable assemblies with 2-pin connector (5.9" (150mm))


• Documentation
