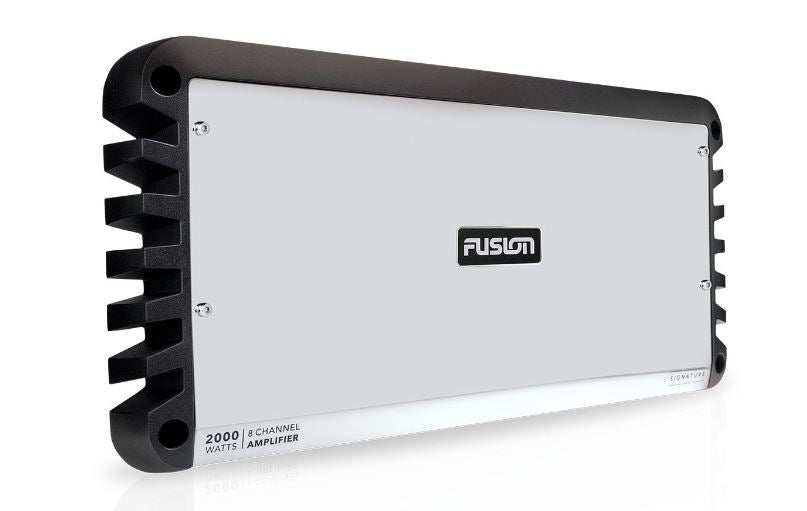

Fusion SG-DA82000 Amplifier Class D 8-Channel 2000 Watt

Fusion SG-DA82000 Amplifier Class D 8-Channel 2000 Watt

Fusion SG-DA8200 Signature Series 8 Channel Marine Amplifier

Model: 010-02162-00

• Class-D Amplifier Technology


• 2000 Watts Peak Power


• Marine-Ready Design with Conformal Coated PCBs


• Rigid Aluminum Alloy Heat Sink


• Stainless Mirror Finish


• Speaker Configuration


• Zone Designation


• True-Marine Design

Introducing an impressive new addition to Fusion’s Signature Series marine amplifier range: the SG-DA82000.

Fusion Signature Series amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver a Signature performance on the water like never before.

Our most efficient, stunning and powerful marine amplifier, the SG-DA82000 also features a True-Marine design that will resist corrosion. Its incredible 2000 Watt peak power will power up to 8 pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in parallel) or up to 4 pairs of speakers at 2 Ohms (2 x 4 Ohm speakers per channel in parallel) and 2 subwoofers. RCA line-level inputs allow for easy connection to new or existing systems.

The SG-DA82000 is Fusion's first 8 channel, Class-D Hi-Fi marine amplifier. The key benefit of a Class-D amplifier is that it has a low battery drain with high output, making this the perfect amplifier for the marine environment. The SG-DA82000 also has conformal coated PCBs for maximum product life and performance, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency.

Undeniably a stand-out piece, the stunning stainless steel mirror control panel cover conceals and protects all cable connections and setting controls, with an attractive finish to complement any installation.

This product is rated True-Marine and carries a 3-year limited consumer warranty.

Specifications
Frequency Response10 Hz to 40 kHz (-3 dB @ 4 Ohm rated power)Peak Power Output2000 WRated Power Output (4 Ohm)100 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)Rated Power Output (2 Ohm)140 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)Rated Power Output (4 Ohm Bridged)280 W rms x 4 @ 14.4 V input < 1% THD+N (EIA/CEA-490A)Input Sensitivity0.3 V to 8 V rms, user adjustableInput Impedance7k Ohm nominalHigh-Pass/Low-Pass Full Range FilterYes, user selectableFilter Cross-Over Frequency32 Hz to 320 Hz, user adjustableFilter Cross-Over Slope12 db/octaveBass-Boost0 to 9 dB, user adjustable (zone 2/4 only)Operating Voltage10.8 V to 16 V dcRemote Switch-OnYes - 6 V thresholdCurrent Consumption (Standby)< 1 mA @ 14.4 V inputCurrent Consumption (Idle)< 2.5 A @ 14.4 V inputCurrent Consumption (Max)100 A @ 14.4 V inputFuse Rating4 x 40 A ATC Blade-Type (SAE J1171 Compliant)Protection CircuitsReverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-CircuitOperating Temperature Range0 to 50°C (32 to 122°F)Ingress Protection RatingDry area installation onlyDry area installation only420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9/16" (L) x 8-1/4" (W) x 2-1/4" (H)Warranty3 years
What's in the Box:

• DA-82000 Amplifier


• Four 8-gauge, self-tapping screws


• 3 mm hex key (for the top cover and power terminals)


• 2.5 mm hex key (for the speaker terminals)


• Polishing cloth


• Spare J1171 compliant 40 A blade-type fuses
