⚡ Monster Marine Lithium™ Dynamic Charge System
Power Smarter. Fish Longer.
Overview

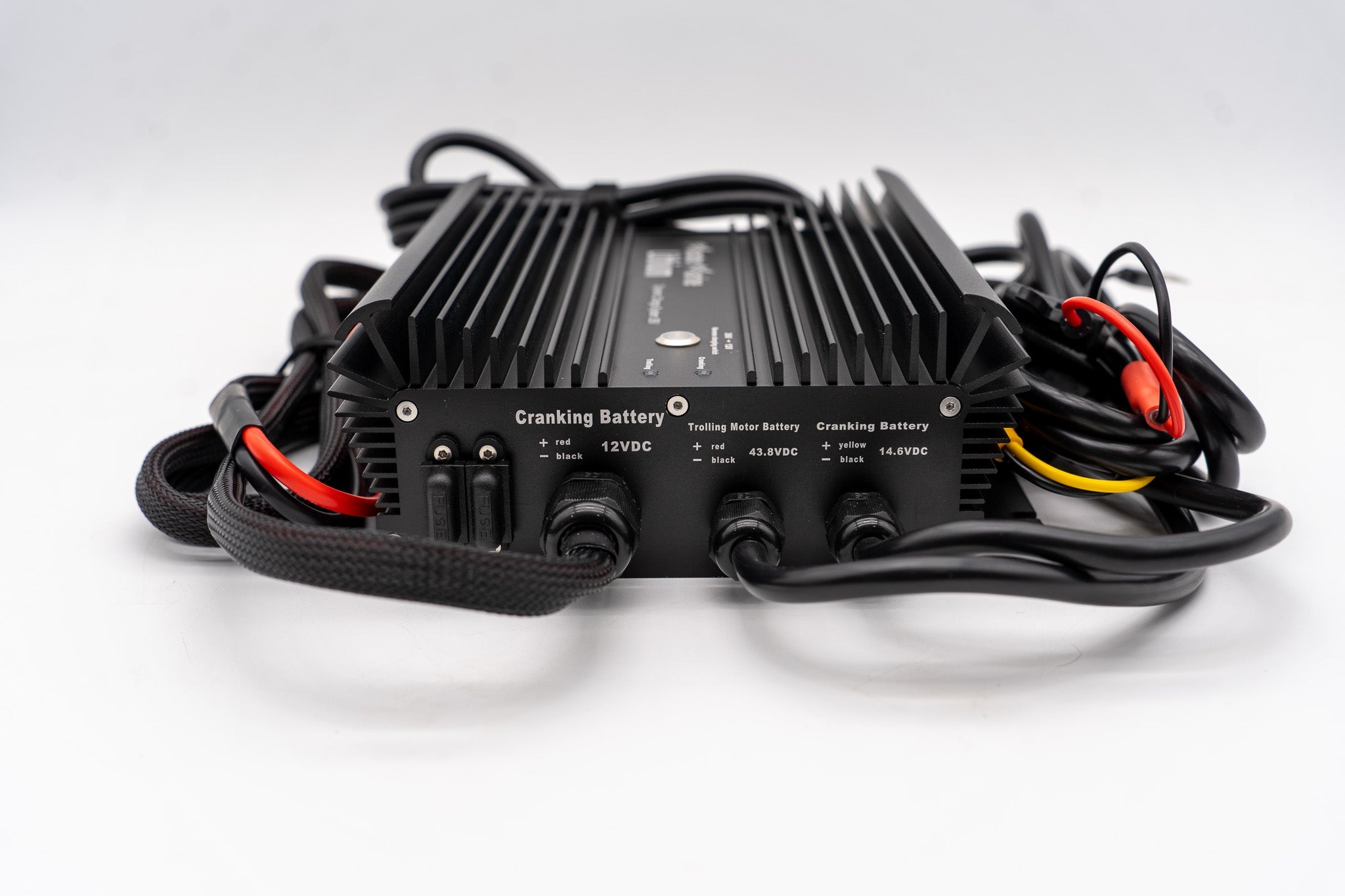

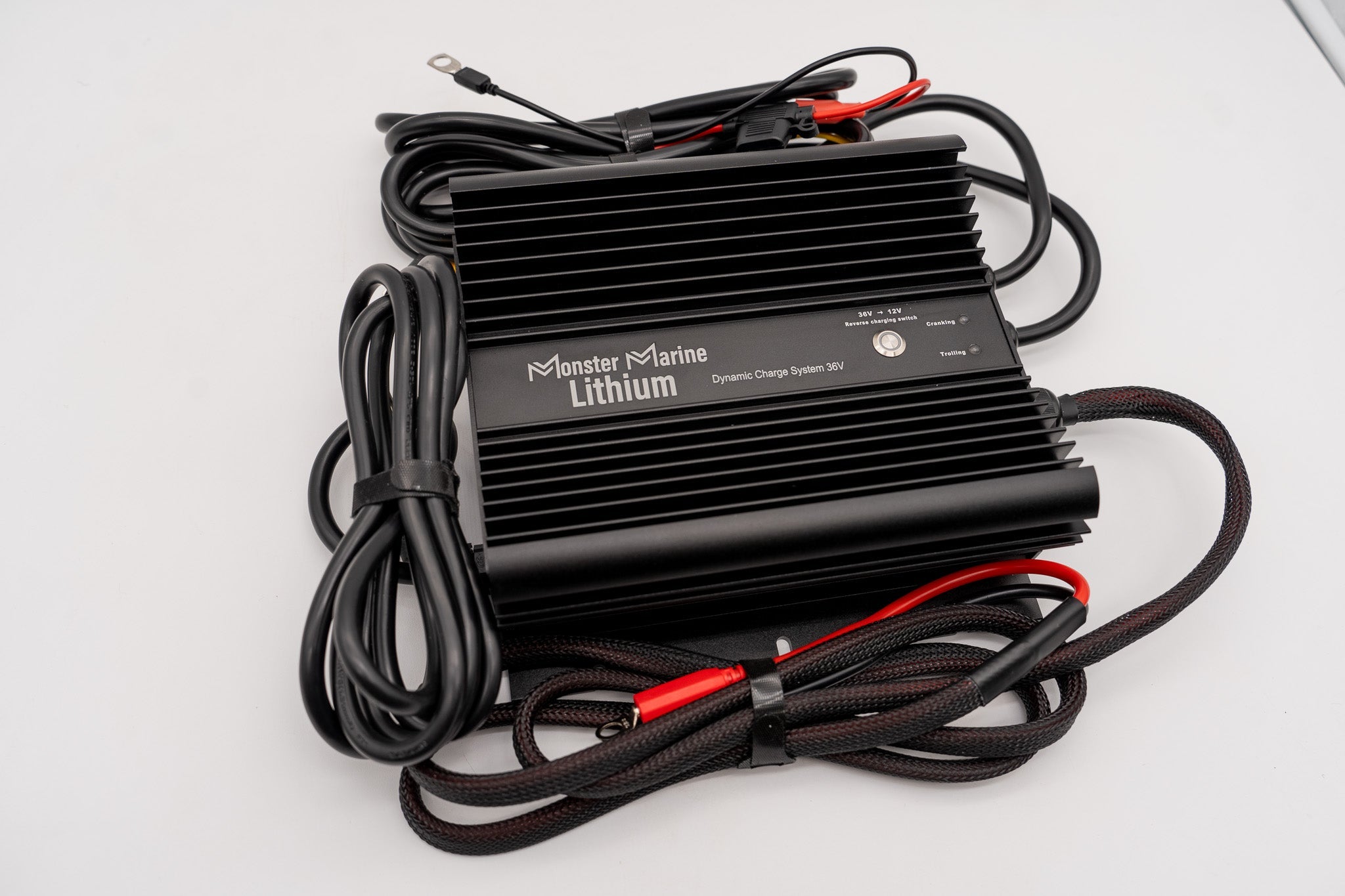

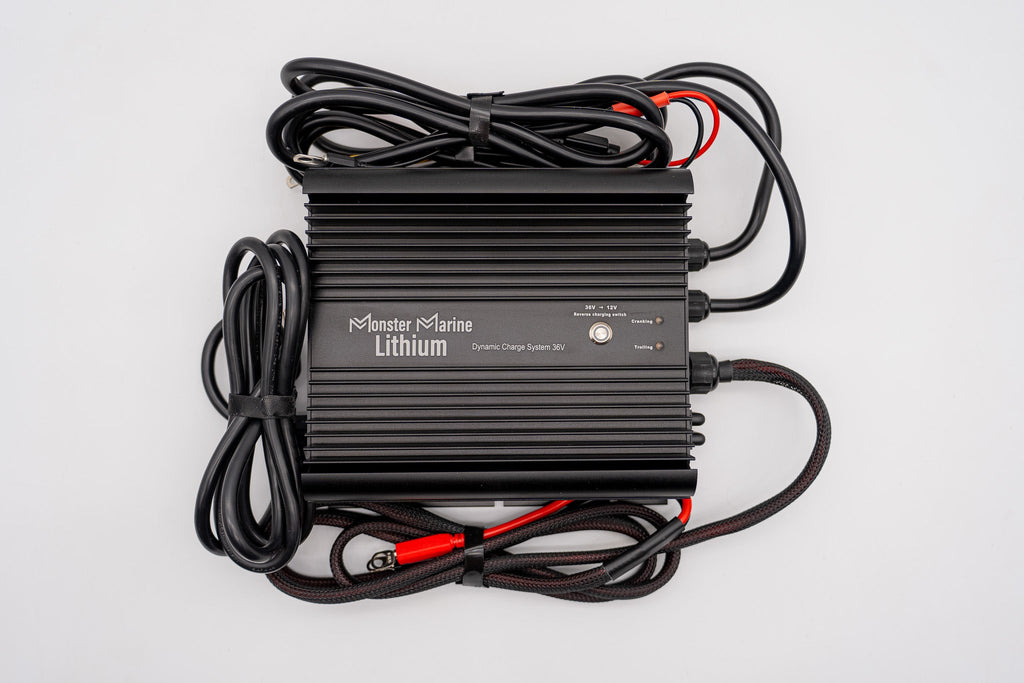

The Dynamic Charge System is Monster Marine Lithium’s newest marine charging innovation — custom-designed, custom-built, and tested with thousands of on-the-water hours to deliver unmatched reliability and control.
Built to become the most intelligent and efficient charging system on your boat, it manages every battery in your setup — both at home and while running — for total power balance and confidence on the water.
Key Features
1. Dual Simultaneous Charging
Charge both your 12V and 36V systems simultaneously while docked.
Perfect for setups with parallel battery banks on either side (12V or 36V).
2. Integrated MML Smart Battery Monitoring
Monster Marine Lithium’s Smart Battery Monitoring & Maintenance System continuously tracks battery health and maintains optimal charge balance while plugged into AC power.
3. On-the-Run Charging
While your motor runs, the system prioritizes your cranking battery first. Once it’s charged, it automatically diverts excess alternator current to your 24V or 36V trolling system, keeping everything topped off while you fish.

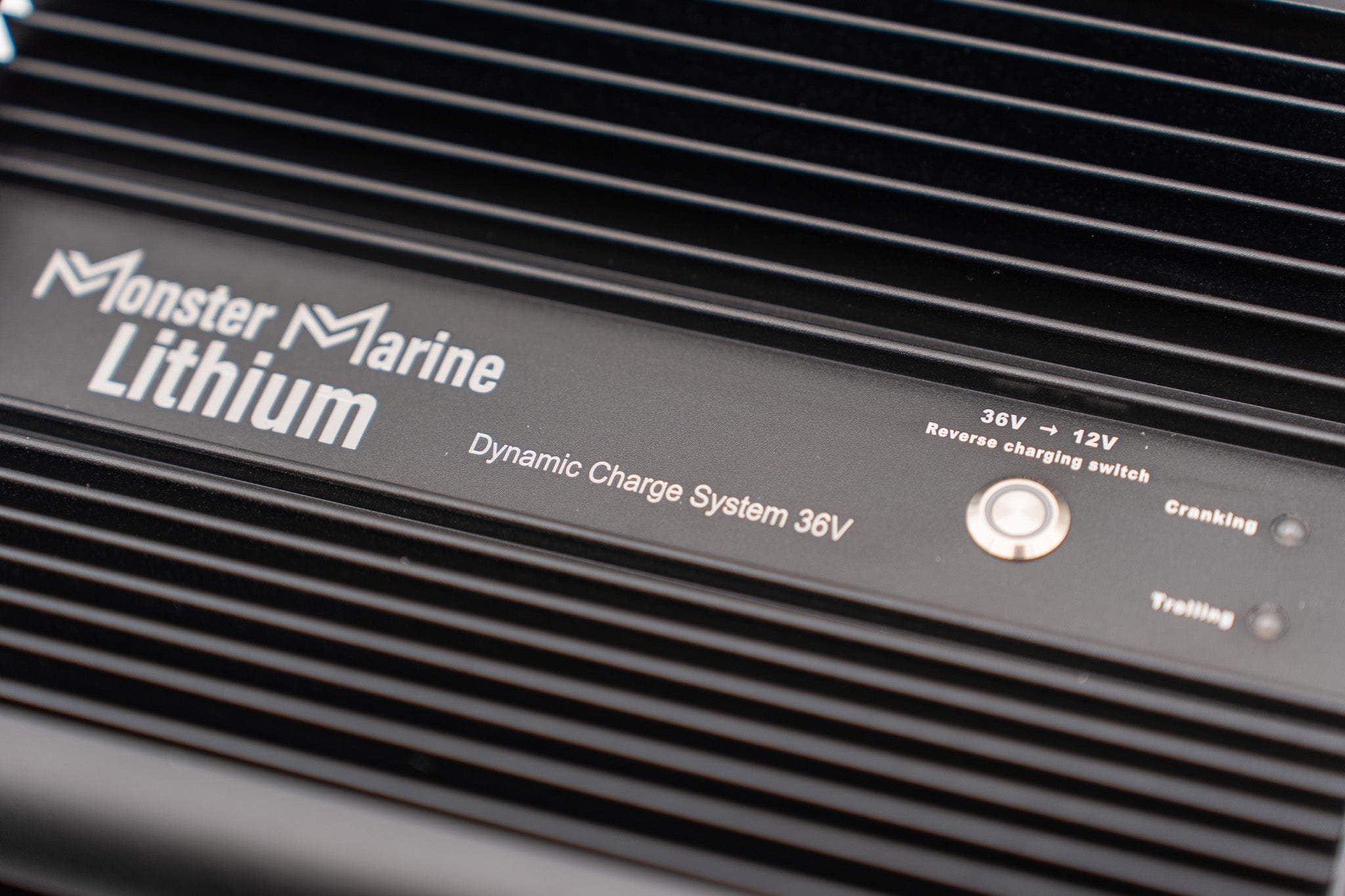

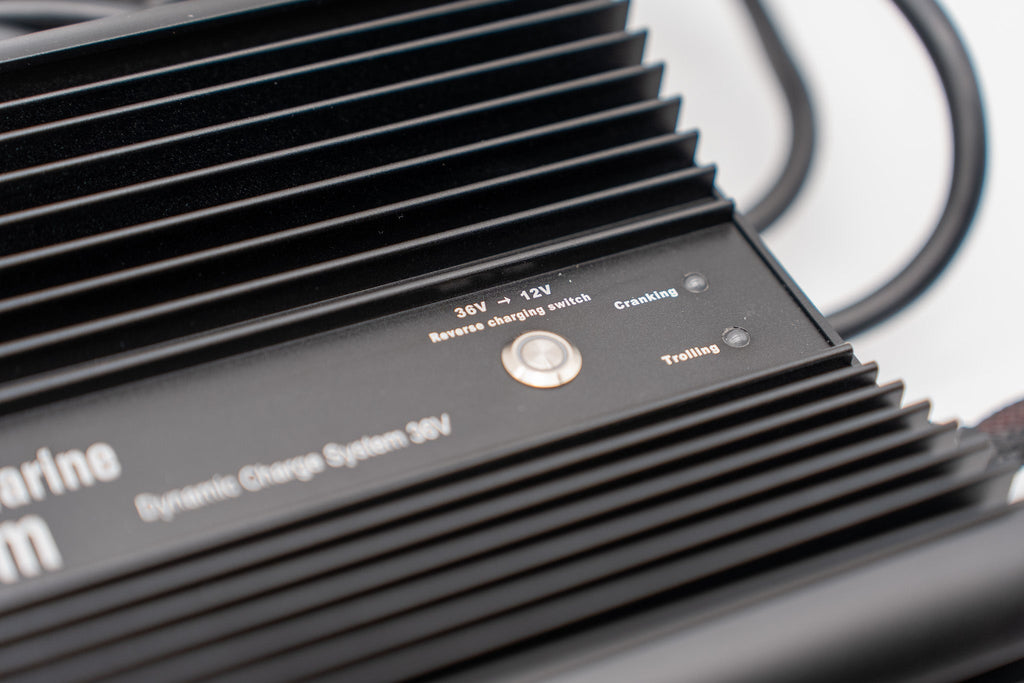

4. Emergency Jump Start
A single button activates reverse charging, converting power from your 36V bank back down to 14V @ 30A — giving your cranking battery a rapid boost.
This can be used for a 30-minute timed assist or in a true emergency.
5. Automatic Lithium Battery Wake-Up
If your lithium batteries go into low-voltage cutoff, the Dynamic Charge automatically wakes the BMS and begins charging — no extra steps or tools required.
⚙️ Specifications
| Category |
Details |
| Dimensions (L × W × H) |
8.75" × 8.75" × 2.25" |
| Weight |
16 lbs |
| Housing |
Custom-coated aluminum |
| Indicator Lights |
Charge status LEDs on top of charger |
🔋 Electrical Specifications
| Parameter |
Specification |
| AC Power Input |
100–120 V AC |
| DC Output (Charging) |
1 × 14.4-14.6 V DC @ 10 A • 1 × 43.8 V DC @ 10 A |
| On-the-Run Output |
43.8 V DC @ 10 A |
| Reverse-Charge Output |
14.6 V DC @ 30 A (to 12V cranking battery) |
| Battery Compatibility |
LiFePO₄, AGM |
| Monitoring System |
Integrated MML Smart Battery Monitoring |
🛠️ What’s Included
| Item |
Description |
| Dynamic Charge System |
Smart Marine Charger |
| AC Power Cable |
6ft marine-grade cord |
| DC Output Leads |
Pre-terminated ring connectors |
| Mounting Kit |
U hole shaped mounted holes |
| User Manual |
Setup, safety, and troubleshooting guide |
💪 Why Choose Monster Marine Lithium™
-
Engineered for Anglers – Designed and tested by professionals all over the nation.
-
Smart Efficiency – Prioritizes charging dynamically for maximum performance.
-
All-in-One Integration – One system to charge, balance, and monitor everything.
-
Rugged Marine Build – Salt-resistant, vibration-tested, and sealed for harsh conditions.
-
Backed by Warranty – 3-Year Full Replacement.
