Blue Sea Short Stop 25 Amp Circuit Breaker Marine Grade

Blue Sea Short Stop 25 Amp Circuit Breaker Marine Grade

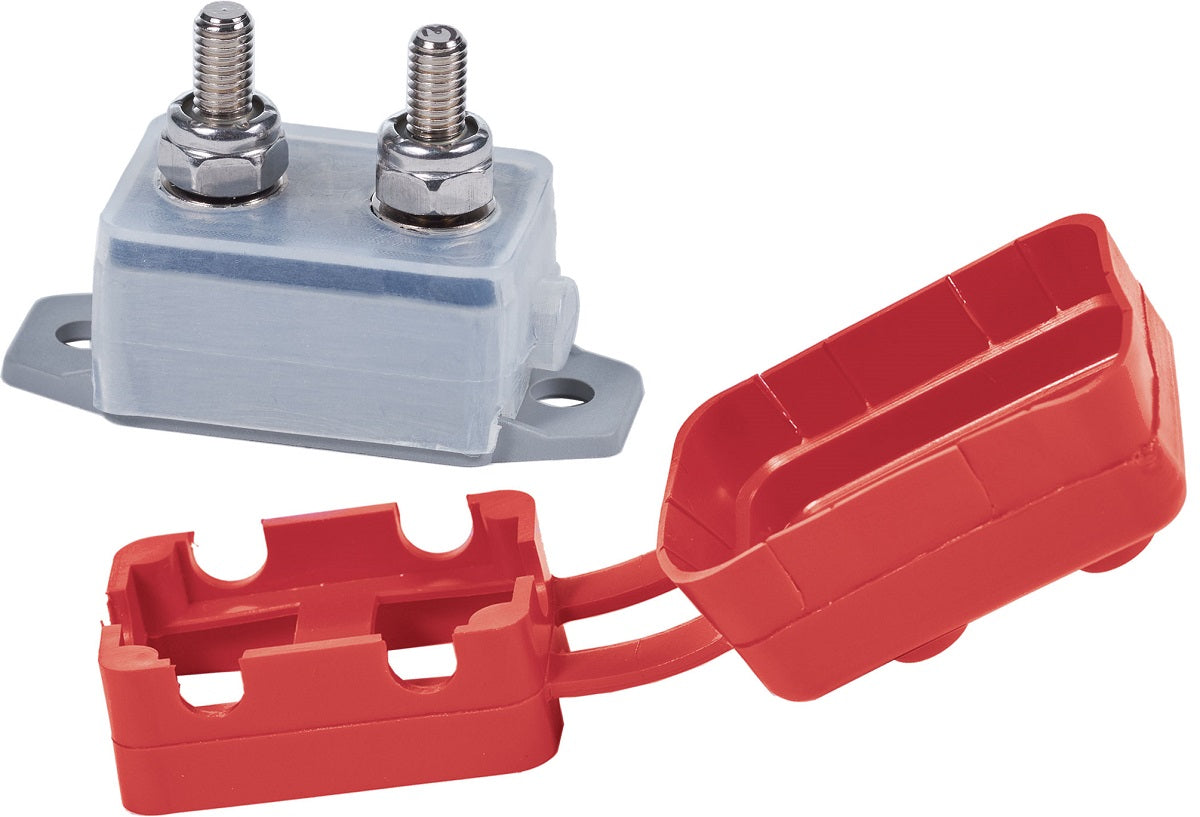

Blue Sea Systems Marine Grade Short Stop Circuit Breakers - 25A

Model: 7154-BSS

• Corrosion resistant materials to withstand harsh environments


• IP64 water resistant boot protects against dust and splashing water


• Push-to-reset operation only disconnects when tripped


• Stainless steel lock nuts for secure connections


• Red insulating boot included (retail product only)

Specifications
Amperage25A DCMaximum Voltage28vDCCircuit Breaker TypeThermal trip, manual resetTerminal Stud#10-32Terminal Stud Torque20 in-lb (2.26 Nm)Interrupt Capacity2500A @ 28V DCMinimum Operating Temperature-10° CMaximum Operating Temperature60° C
What's in the Box:

• 25A Short Stop Circuit Breaker


• Short Stop Circuit Breaker Boot
