Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus Black

Blue Sea M-Series Battery Switch On/Off Dual Circuit Plus Black

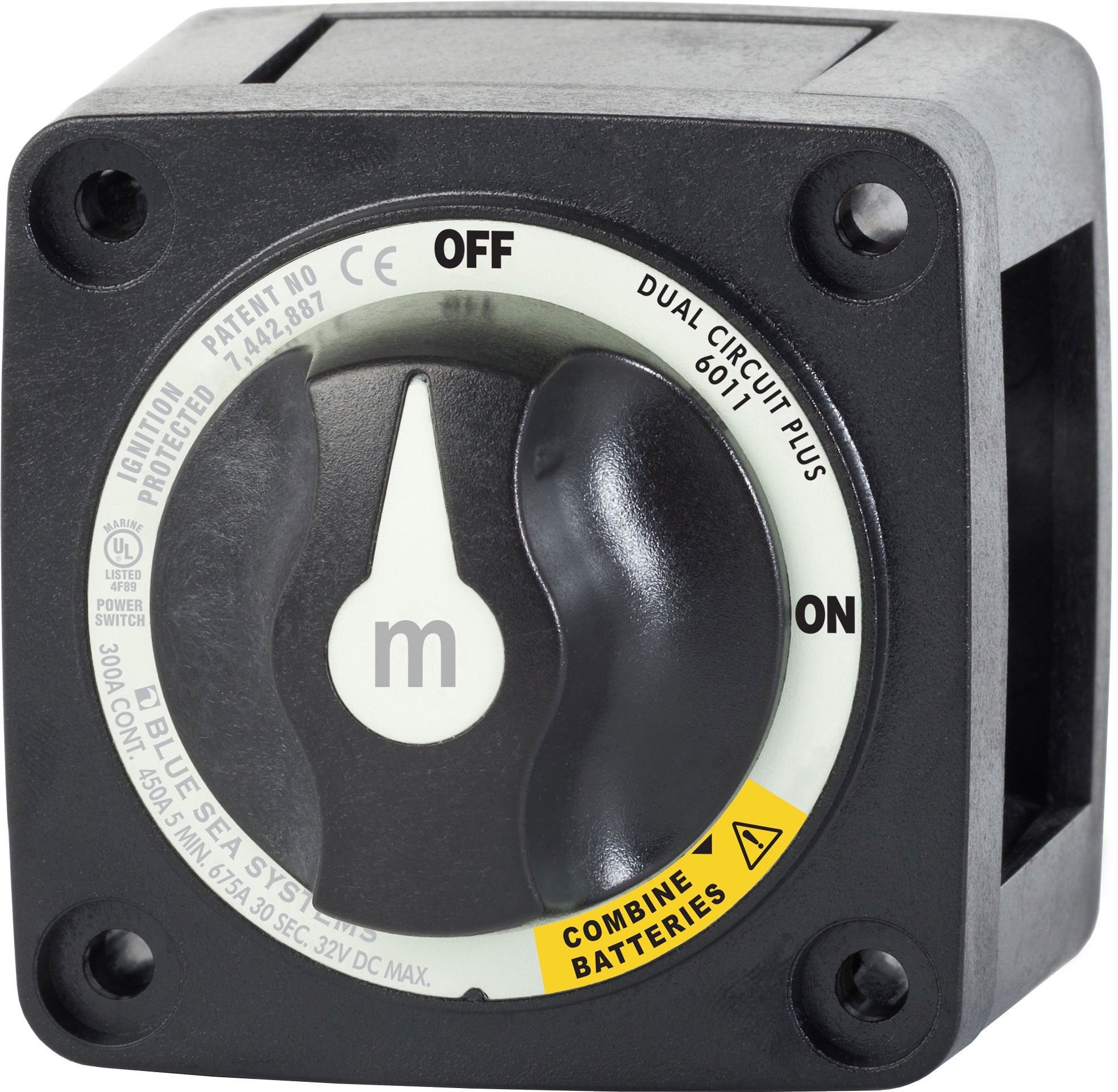

Blue Sea Systems m-Series Mini Dual Circuit Plus Battery Switch - Black

Model: 6011200-BSS

• Tin-plated copper studs for maximum conductivity and corrosion resistance


• Studs accept 3/8" (M10) ring terminals


• 7/8" (22mm) stud length accepts multiple cable terminals


• Blue Sea Systems one-piece terminal stud design never loosens over time


• Isolating cover with snap-on sections protects rear contacts


• Case design allows surface or rear panel mounting


• Waterproof — rated IP66 from water projected in powerful jets


• One-piece stainless flange nuts ensure safe and secure connections


• Breakout tabs allow wire access in any direction


• Make before break contact design allows switching between battery banks without power interruption

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Specifications
Switch TypeDual Circuit PlusColorBlackSwitch Positions3Battery CombineYesAlternator Field DisconnectNoMaximum Voltage32vDCStud Size3/8"Terminal Stud Torque120 in-lb (13.56 Nm)Continuous Rating300AIntermittent Rating450A (5 min)Cranking Rating 30 sec675ABattery Inputs2Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)Cable Size to Meet Ratings4/0 AWG (120mm )Mounting HolesAccept #10 ScrewStud MaterialTinned CopperStud Torque120 in-lb (13.56 Nm)Terminal Stud Size3/8" - 16 (M10)
