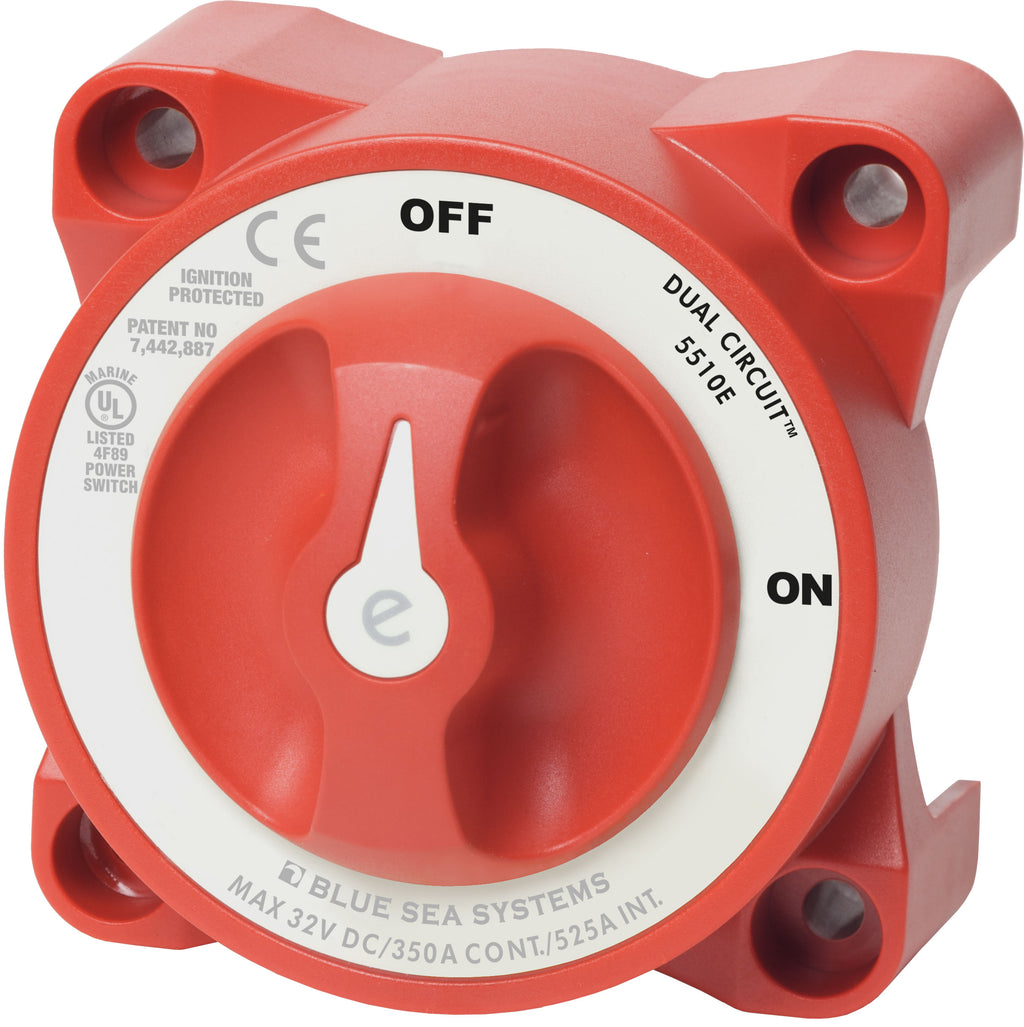

Blue Sea E-Series Battery Switch On-Off Dual Circuit
Blue Sea Systems e-Series Dual Circuit Battery Switch
Model: 5510E-BSS
- 350 Amps continuous rating for inboard gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface, rear, or front panel mounting options
- Tactile indicator conveys knob position by feel
- Waterproof — rated IP66 from water projected in powerful jets
- Ignition protected—safe for installation aboard gasoline powered boats
SpecificationsSwitch TypeDual CircuitColorRedSwitch Positions2Battery CombineNoAlternator Field DisconnectNoMaximum Voltage32V DCTerminal Stud Torque140 in-lb (15.82 Nm)Continuous Rating350AIntermittent Rating525A (5 min)Cranking Rating 30 sec700A per circuitBattery Inputs2Cable Clearance For 4/0 AWG Cables1.10in (27.94 mm)Cable Size to Meet Ratings4/0 AWG (120mm )Mounting HolesAccept 1/4" (M6) ScrewStud MaterialTinned CopperTerminal Stud Size3/8" - 16 (M10)
