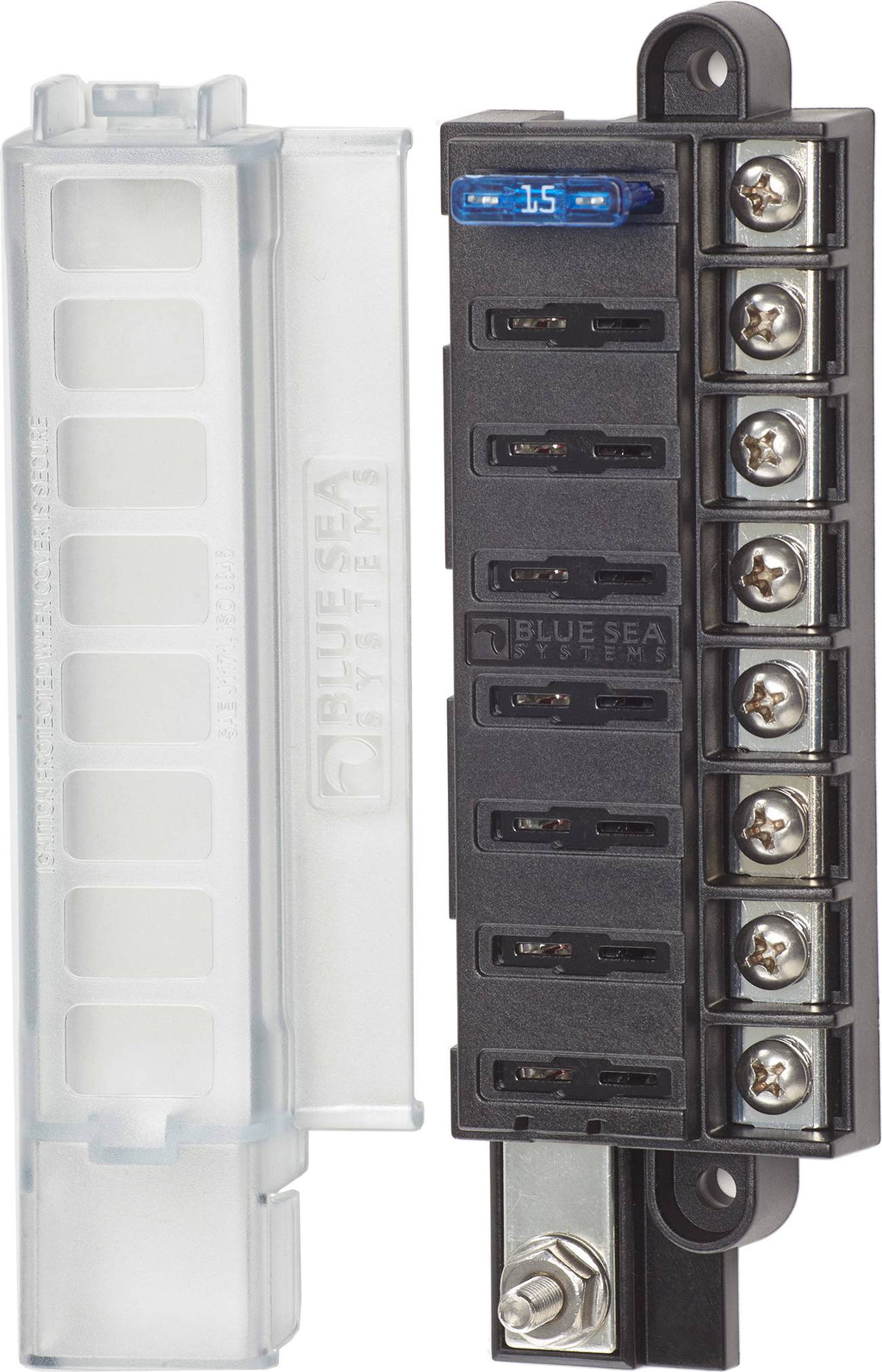

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover

Blue Sea Systems ST Blade Compact Fuse Blocks - 8 Circuits

Model: 5046-BSS

• Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment


• Single side design allows wire entry from one side to minimize footprint


• Insulating cover meets ABYC/USCG insulation requirements


• Tin-plated copper buses and fuse clips


• Accepts ring or snap fork type terminals


• Includes 8 write-on circuit labels


• Fuses sold separately

Specifications
Circuits8Maximum Amperage100A per block
30A per circuitMaximum Voltage32V DCMounting#8 Screw (M4)Terminal Stud Torque24 in-lb (2.71 Nm)Screw Terminal Torque18 in-lb (2.03 Nm)Screw Terminal Type#8-32 Scews with captive star lock washerTerminal Stud Size#10-32
