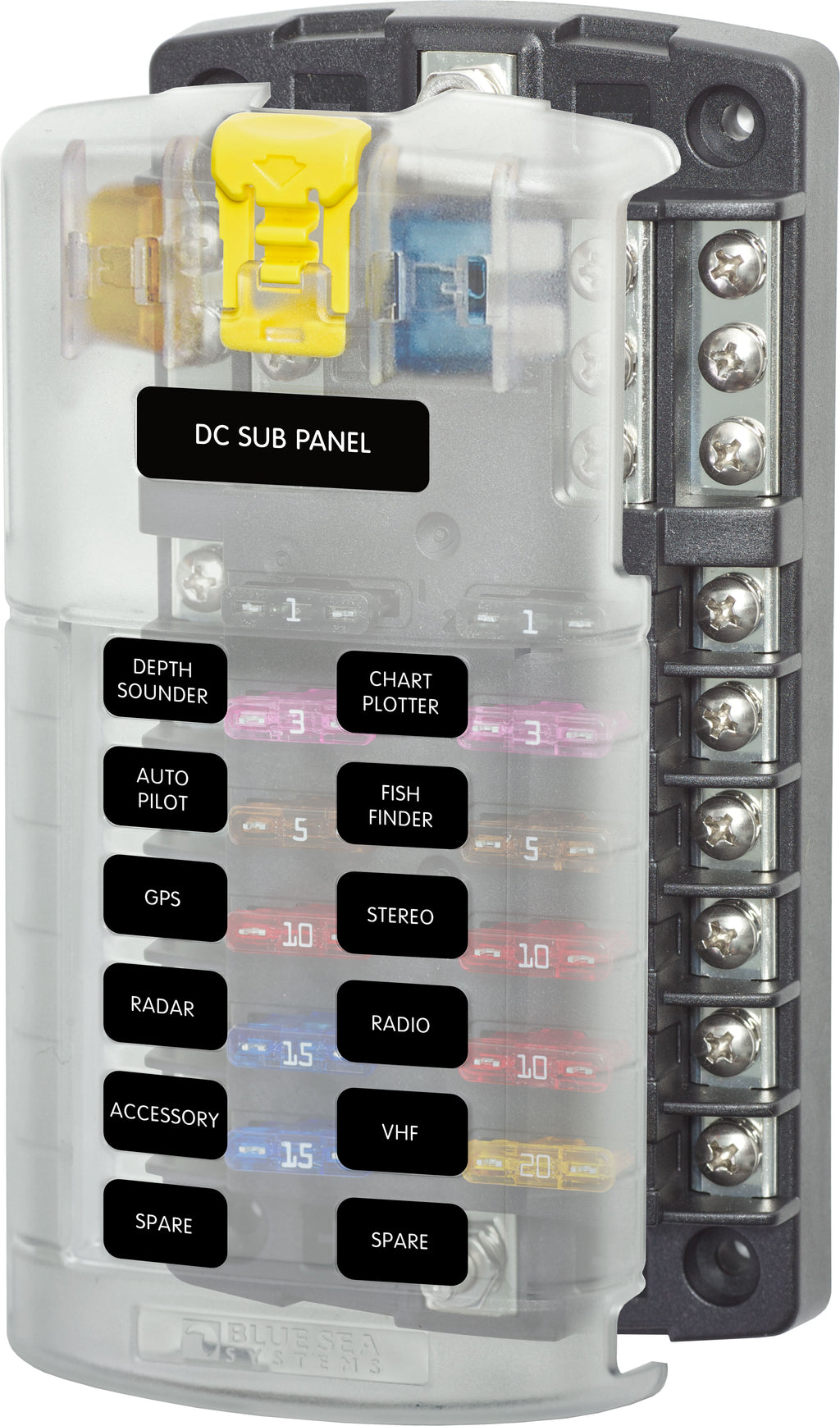

Blue Sea 5026 12-Gang Fuse Block ST ATO/ATC Negative Bus and Cover
Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover
Model: 5026
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
- Fuse blocks with covers include 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.
SpecificationsCircuits12Maximum Amperage100A per block
30A per circuitMaximum Voltage32V DCMounting#8 Screw (M4)Negative Bus#10-32 StudPositive Bus#10-32 StudRecommended Torque24 in-lb (2.71 N m)Screw Terminal Torque18 in-lb (2.03 Nm)Screw Terminal Type#8-32 Screws with captive star lock washerWeight0.75lb (0.25 kg)Dimensions6.472" h x 3.315" w x 1.518" d
