Blue Sea 4162 10A Push Button LED Ring Switch Off-On Red

Blue Sea 4162 10A Push Button LED Ring Switch Off-On Red

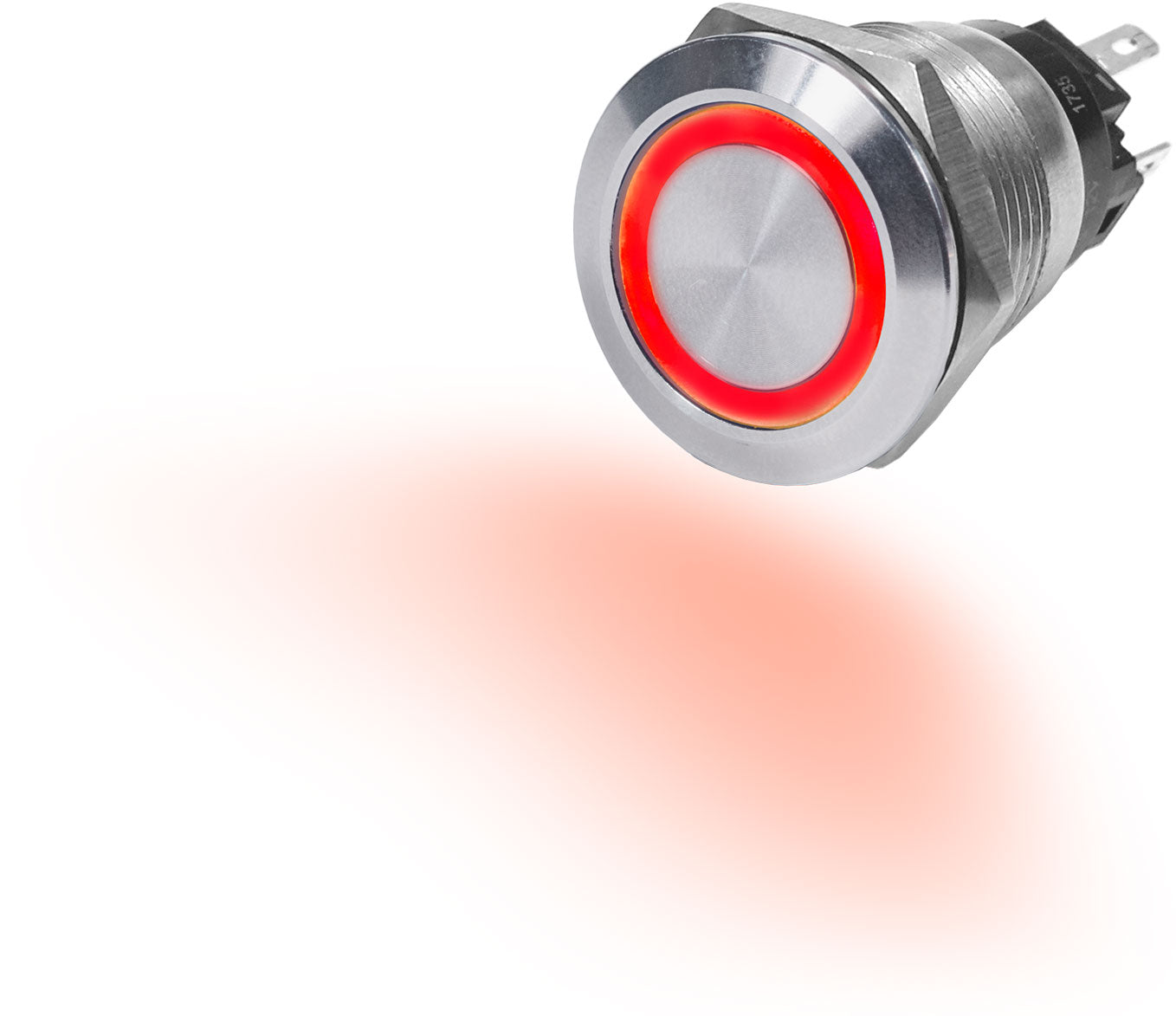

Blue Sea 10A Push Button LED Ring Switch Off-On Red

Model: 4162-BSS

• 10A continuous


• Can be wired for normally open or normally closed


• Installs with .110inch quick connects (included in retail package)

Specifications
ActionOFF-ONAmperage10A @ 12V DC Resistive
3A @ 12V InductiveNominal Voltage12V DCMaximum LED Operating Current20mAMinimum Operating Temperature-10° CMaximum Operating Temperature70° CMinimum Storage Temperature-55° CMaximum Storage Temperature85° CIlluminationIndependent — Separate contacts for LED powerMax Panel Thickness0.31in (7.87 mm)Mounting Hole¾" (19mm)Switching Cycles40,000Termination5 — 0.110inch Quick Connect terminals
