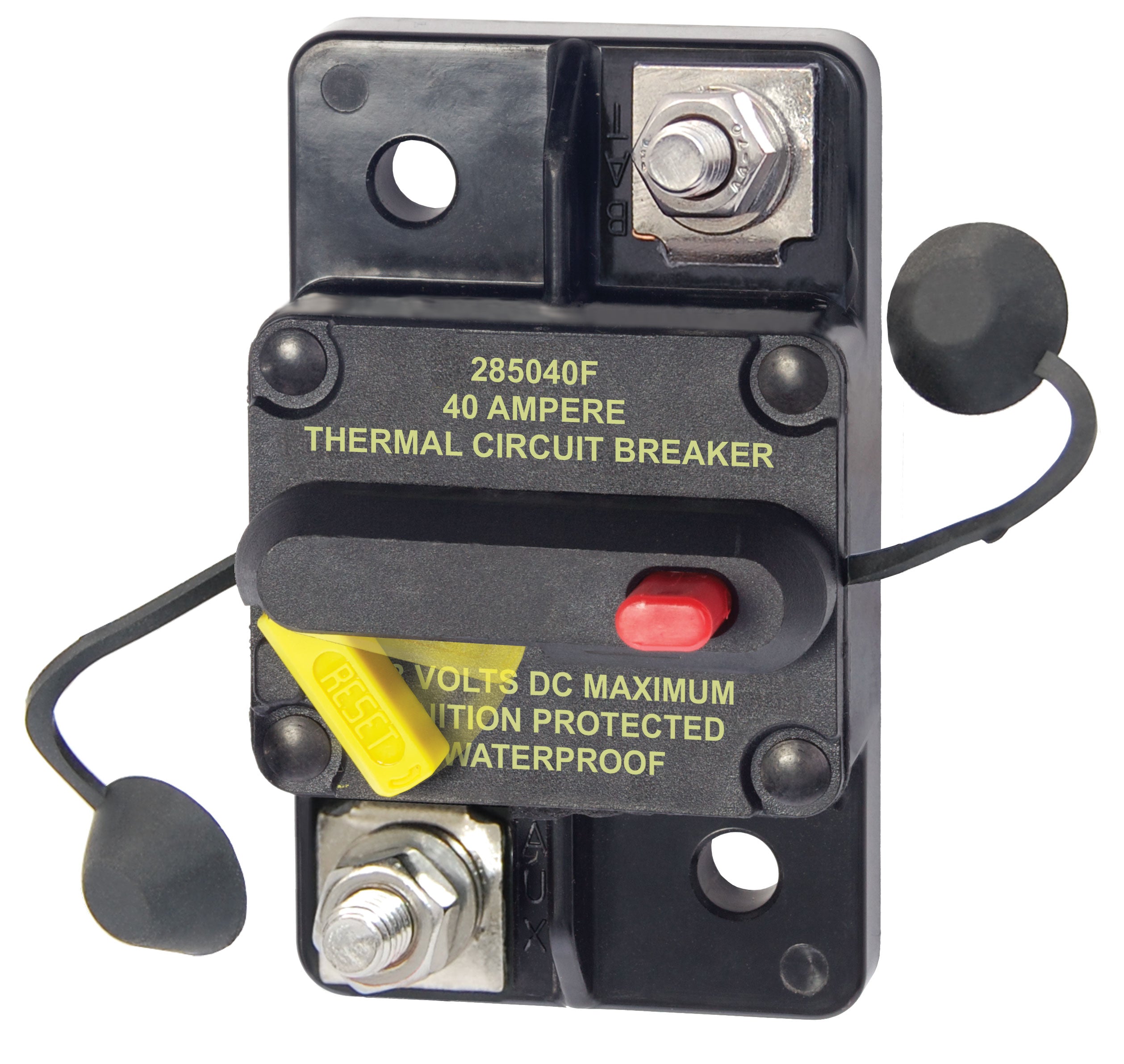

Blue Sea 285-Series 40 Amp Circuit Breaker Surface Mount

Blue Sea 285-Series 40 Amp Circuit Breaker Surface Mount

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 40A

Model: 7182-BSS

• Drop in replacement for 185-Series Circuit Breakers


• Visible reset lever shows open condition


• Ignition protected - Safe for installation aboard gasoline powered boats


• Meets SAE J1171 external ignition protection requirements


• Weather Resistant


• Combines switching and circuit breaker function into one unit*


• "Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage40AMaximum Voltage48V DCMountingSurface MountCircuit Breaker TypeThermally responsive Bi-metal bladeTerminal Stud Torque50 in-lb (5.65 Nm)Interrupt Capacity3000A @ 48VMinimum Operating Temperature-40° CMaximum Operating Temperature85° CCircuit Breaker ClassType III - switchable/manual reset - trip freeTerminal StudM6 (accepts 1/4" Ring Terminal)
