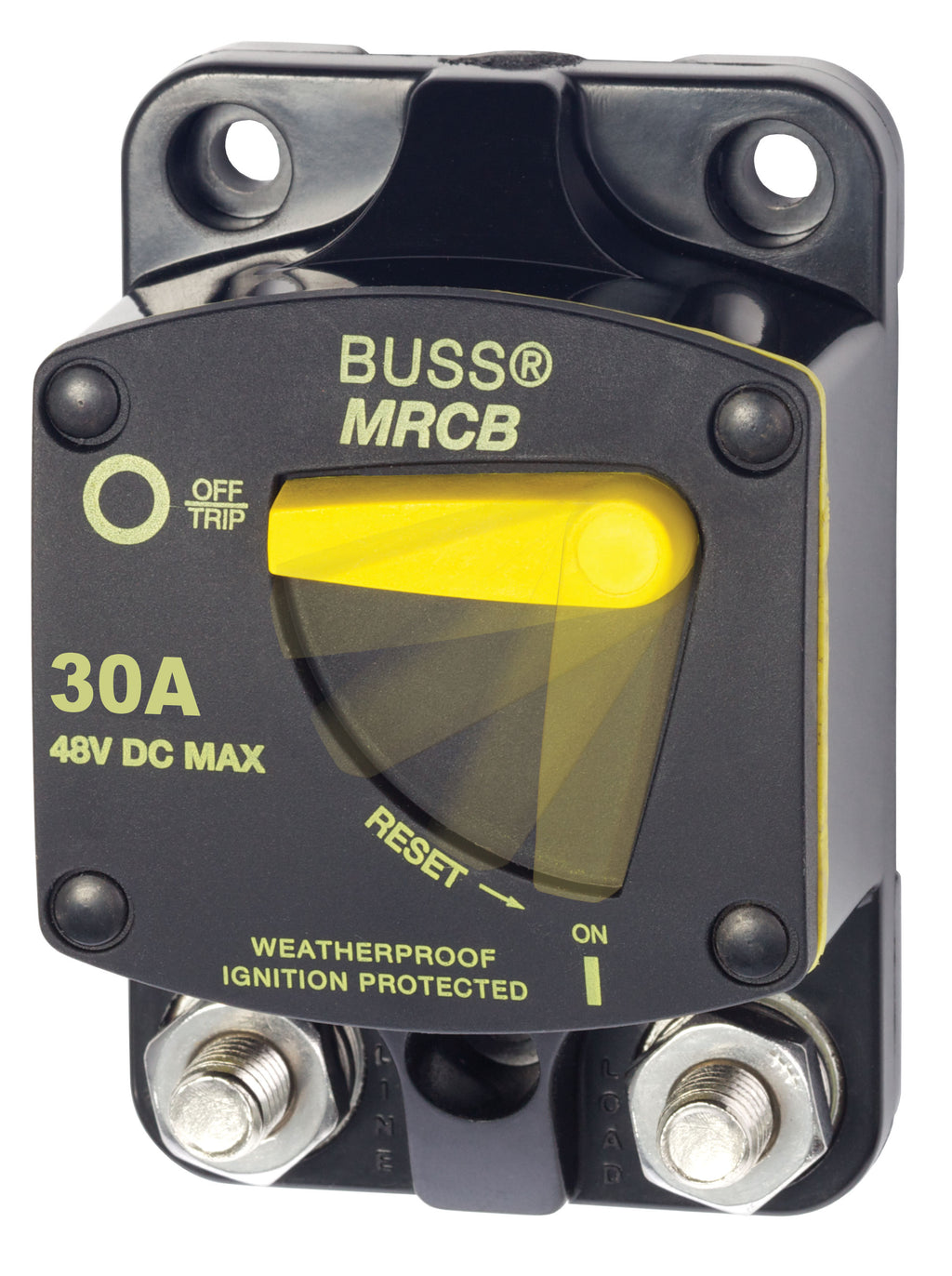

Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 30A

Model: 7136-BSS

• Combines switching and circuit protection into a single device*


• Clear, single lever operation


• "Trip Free" design cannot be held "ON" during fault current condition


• Waterproof


• Recessed mounting holes for clean appearance


• Large Clearance around terminal studs accept heavy gauge wire lugs


• Robust 5/16 M8 terminals provide high torque connections


• Large lever with vertical/horizontal orientation provides indication of trip status


• Ignition protected - Safe for installation aboard gasoline powered boats


• Meets SAE J1171 external ignition protection requirements

* Do not use as a switch where high inrush currents are expected.

Specifications
Amperage30AMaximum Voltage48vDCMountingSurface MountCircuit Breaker TypeThermally responsive Bi-metal bladeTerminal Stud Torque75 in-lb (8.47 Nm)Interrupt Capacity5000A @ 12V
3000A @ 24V
1500A @ 42VMinimum Operating Temperature-40° CMaximum Operating Temperature85° CCase MaterialThermoset PolyesterCircuit Breaker ClassType III - switchable/manual reset - trip freeMounting HoleAccept #10 (M5) ScrewTerminal Stud Size5/16" - 18
