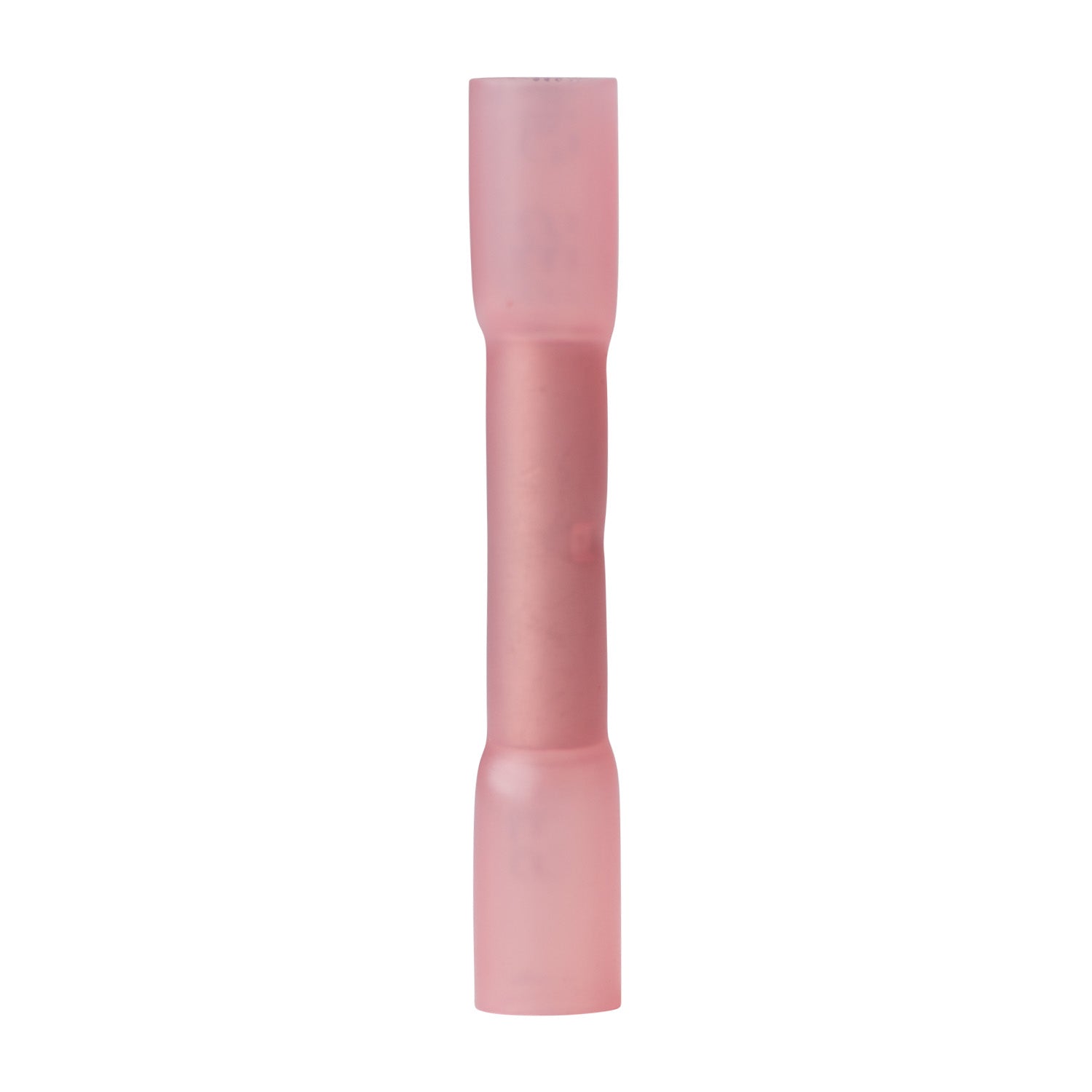

Ancor 22-18 Butt Connector Heat Shrink Red 500 Pack
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257° F/125° C.
- Operating temperature range 40° C to 110° C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
Wire Range mm Qty/Pkg Part No 12-10 3-5 500 309202 12-10 3-5 100 309299 16 - 14 1-2 100 309199 16 - 14 1-2 500 309102 22 - 18 0.3-0.8 500 309002 22 - 18 0.3-0.8 100 309099
