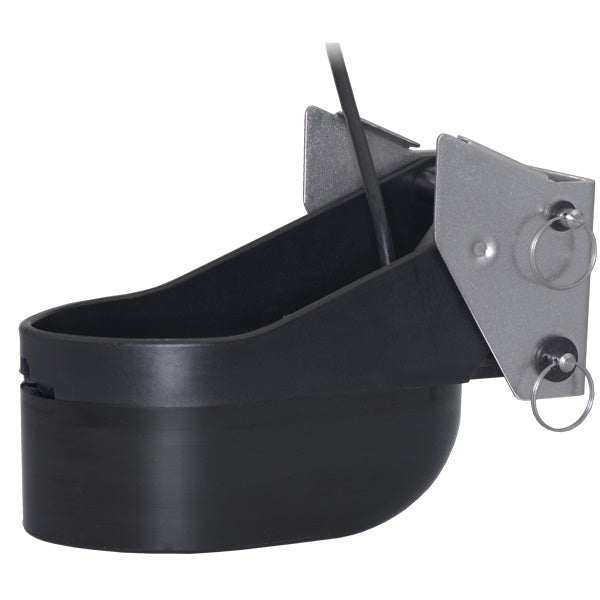

Airmar TM265C-LH Transducer With Garmin 12-Pin MMC

Airmar TM265C-LH Transducer With Garmin 12-Pin MMC

Airmar TM265C Low/High CHIRP Transom Mount Transducer with Garmin 12-Pin Mix-N-Match Cable

Model: TM265C-LH-12G

• 8 Internal Broadband Ceramics


• Depth & fast response water temperature sensor


• Urethane housing and stainless steel mounting bracket


• Can retrofit to existing TM258 & TM260 bracket


• Exclusive Xducer ID® technology

Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.

Specifically designed for small boats (25'-40'), the TM265LH Chirps across the following bandwidths:

LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz

Specifications
Low frequency42-65 kHz (25° to 16° beamwidth)High frequency130-210 kHz (10° to 6° beamwidth)Boat Size8 m to 12 m (25’ to 40’)Boat typeOutboards, I/OHull typeFiberglass, Wood, MetalHull DeadriseUp to 28°Acoustic WindowUrethane
What's in the Box:

• TM265CLH-MM


• Transom Mount Hardware


• MMC-12G
