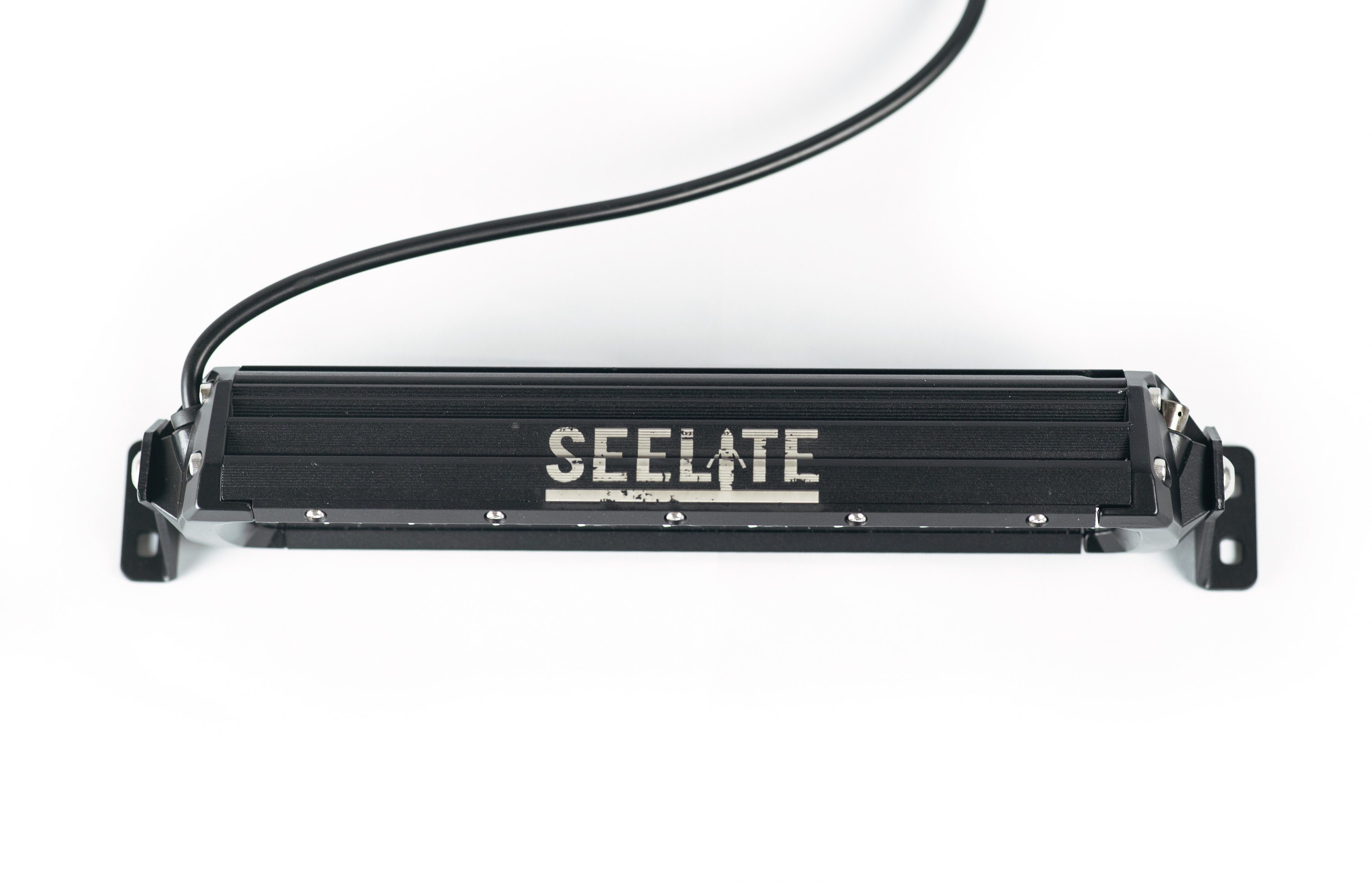

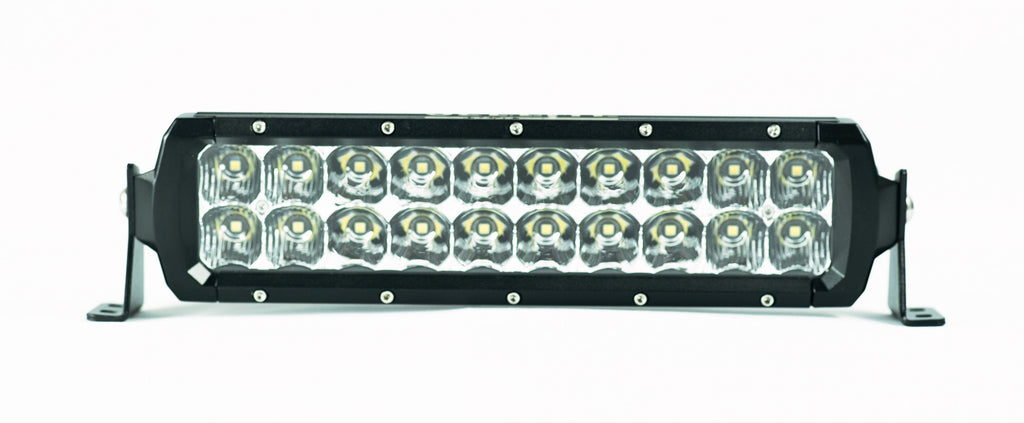

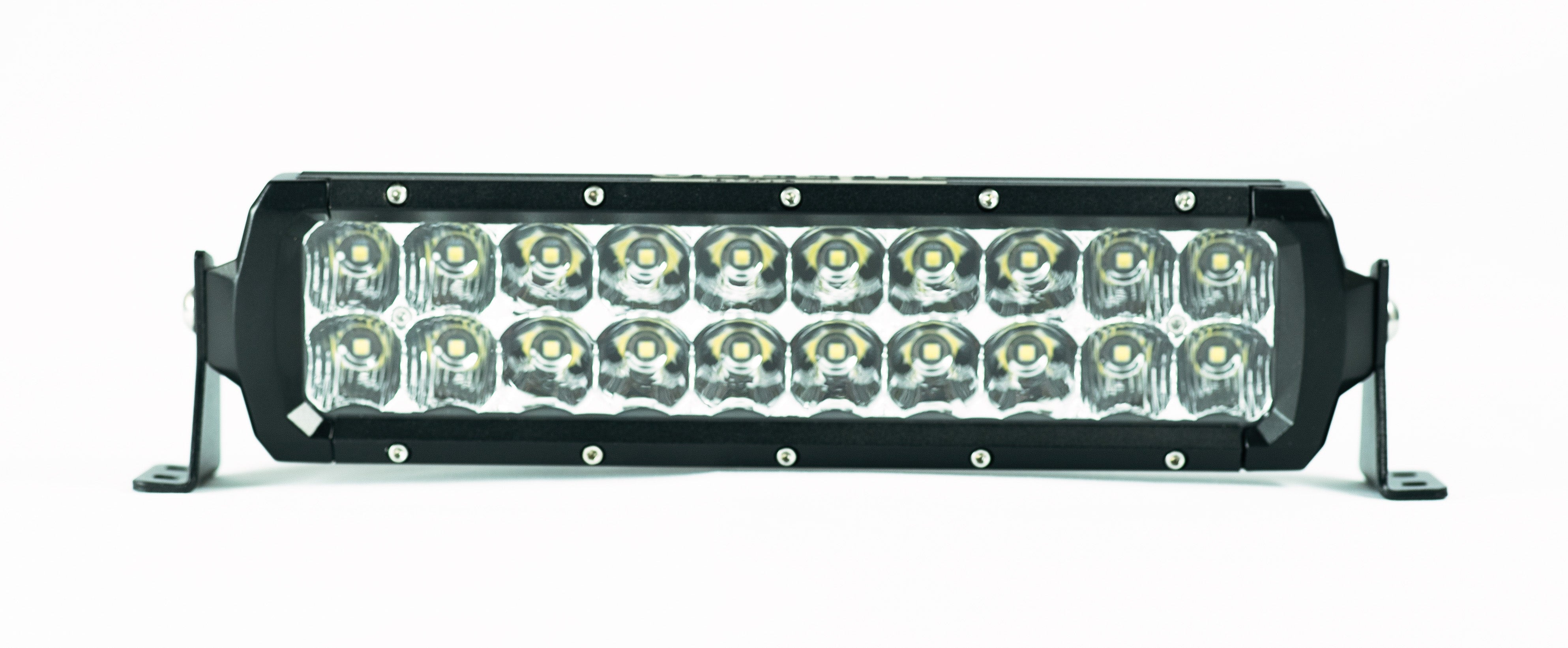

This is our new line of slimmer, lighter and lower profile light bars. 2.0 means it is a double row light. We use some of the highest quality 5W chips in these bars. They are a combo pattern meaning they have both spot and flood light patterns. They sit much lower and are much thinner and about half the weight of our other light bars.
LED Light Bar Technical Specifications
- LED Type: Osram P8 5W Lumens: 10,500/PC
- 9.1amp draw @ 12vdc
- 10-30VDC Operating Voltage
- 50,000 Hours Life Span
- Black Housing
- Overall Height when mounted: 2.95"
LED LIGHT BAR TESTING
-
Salt & Fog Testing: A highly corrosive testing measure involving a high saline environment. The purpose of this test is to allow the LED Light Bar to retain its coating from salt spayed on the roads in the winter seasons which also means the product can withstand sea water.
-
Lens Impact Test: A 17-ounce iron ball is dropped onto the glass from a height of 40 inches to mimic the impact of a rock or other foreign debris coming into contact with the LED light.
-
Vibration Test: Ensures the LED Light bar is stable enough to remain on the vehicle during extreme driving conditions like trail riding, off roading, rock climbing, etc.
-
UV Test: The LED Light Bar is placed in a special UV emitting machine for two days which simulates an environment equal to 5 years of direct UV lighting exposure.
-
Temperature Test: The LED light bar undergoes both extreme high and low temperature conditions to make ensure the housing will not discolor.
LED LIGHT BAR EXTERIOR
- Outdoor Dupont painting coats the LED light bar housing, guaranteeing the housing will remain unchanged for 5 years.
- To prevent unwanted wind noise Wind Reducers are equipped to ensure a quiet experience during high speed travel.

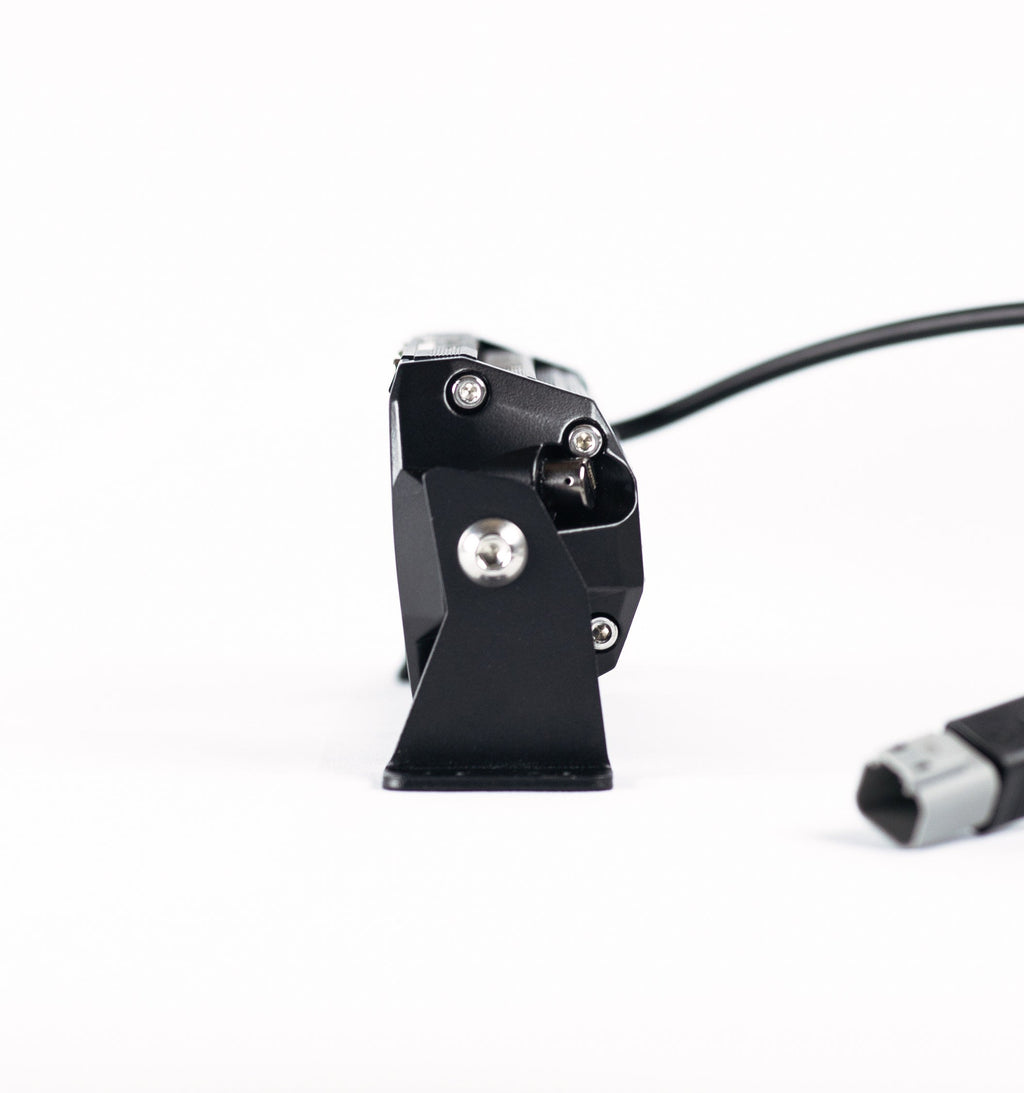

- All LED light bars Equipped with a Deutsch connector which is globally renowned for its ability to be waterproof and its ease of use.
- The LED Light Bar is equipped with a special breather apparatus that is uniquely designed to prevent condensation and water intrusion.
- The lens is crafted from high quality GE Lexan which is 300 times stronger than glass plus its resistant to corrosive acids and other chemicals such as gasoline. The lens is also manufactured to be scratch resistant and UV resistant.
LED LIGHT BAR INTERIOR
- The PCBA (Printed Circuit Board Assembly) is engineered with unique temperature protection, voltage protection and current protection designs to maximize efficiency and increase durability. This unique design means no electromagnetic interference with other nearby electronics on your vehicle.
- Over voltage protection is installed prevent premature failure from accidental voltage fluctuations.
