Garmin GPSMAP8610XSV 10" Combo With USand Canada GN+

Garmin GPSMAP8610XSV 10" Combo With USand Canada GN+

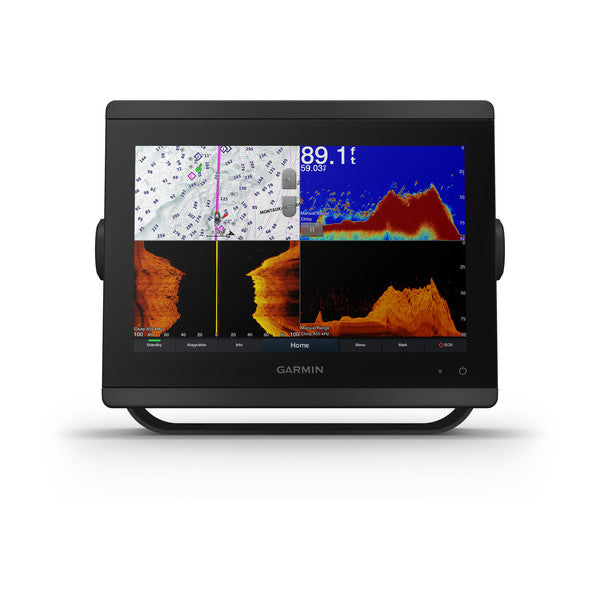

Garmin GPSMAP8610xsv 10" Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen and Garmin Navionics+ coastal and inland water charts for the U.S. and Canada

Model: 010-02091-51

• Features a 10" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses


• Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), the LiveScope™ System and the full-line of live sonar products (transducers sold separately)


• Adds a stunning appearance with ability to install multiple displays either flat mounted edge-to- edge to create a sleek glass helm look or mounted flush


• Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia


• ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more


• See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway


• For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices


• Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.


• SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more


• Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge


• Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more.


• Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and cartography cards

The GPSMAP® 8610xsv chartplotter features a 10" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. It offers built-in support for our industry-leading sonar , including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars plus built-in support for Ultra High-Definition scanning (no black box required). It also supports Panoptix™ and LiveScope™ sonar products and a wide range of other transducers (sold separately). The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for confidence in helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use the OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays and prerace guidance to help you gain a competitive edge. Download the ActiveCaptain® app to your compatible smartphone or tablet to manage your marine experience--from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway.

Specifications
GeneralPhysical dimensions10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)Weight5.2 lbs (2.4kg)Water ratingIPX6 and IPX7Display typetouchscreen IPS display (anti-glare finish)Display size8.6" x 5.4" (21.8 cm x 13.7 cm)Display resolutionWUXGA; 1920 x 1200 pixelsPower consumption2.7 AAntennaInternal or external over NMEA 2000Mounting optionsBail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)Receiver10 Hz GPS/GLONASS/GalileoGarmin Marine Network™ ports2Maps & MemoryAccepts data cards2 microSD cards (on back)Waypoints5,000Routes100 (250 waypoints each)Track log50,000 points; 50 saved trackspre-loaded mapsGarmin Navionics+ coastal and inland water charts for the U.S. and CanadaOutdoor Recreation FeaturesTide tablesYesChartplotter FeaturesGarmin Radar compatibleYesGarmin Sonar compatibleYesGarmin SmartMode compatible (customizable monitor presets)YesSupports AIS (tracks target ships position)YesSupports DSC (displays position data from DSC-capable VHF radio)YesSupports FUSION-Link™ compatible radiosYesGSD™ Black Box sonar supportYesGCV™ Black Box sonar supportYesActiveCaptain compatibleYesGarmin Helm compatibleYesGRID™ (Garmin Remote Input Device) compatibleYesWireless remote compatibleYesSonar Features & SpecificationsDual-frequency (50/200 kHz) sonar capableYesDual-beam (77/200 kHz) sonar capableYesFrequencies supported RegularTraditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250
Dual Channel CHIRP: 40-250
SideVü/ClearVü: CHIRP 260/455/800
(dependent on transducer)Frequencies supported Ultra High DefinitionUltra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
(dependent on transducer)Transmit power1 kW traditional; 1 kW CHIRPCHIRP sonar technologyYes (Built-in)ClearVüYesSideVüYesMaximum depth5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)ConnectionsNMEA 2000® compatibleYesTransducer pin numbers1 — LVS sonar, 1 — 12 pin scanning sonar, 1- 8 pin sonarNMEA 0183 input ports1 differentialNMEA 0183 output ports1 differentialVideo input ports1 - BNC composite
1 - HDMI (HDCP compliant)Video output ports1 HDMIWireless connectivityYes
What's in the Box:

• GPSMAP 8610xsv Garmin Navionics+ coastal and inland water charts for the U.S. and Canada


• Power cable


• NMEA 2000® drop cable


• NMEA 2000 T-connector


• Bail mount with knobs


• Flush mount kit


• Sun cover


• Trim piece snap covers


• Documentation
