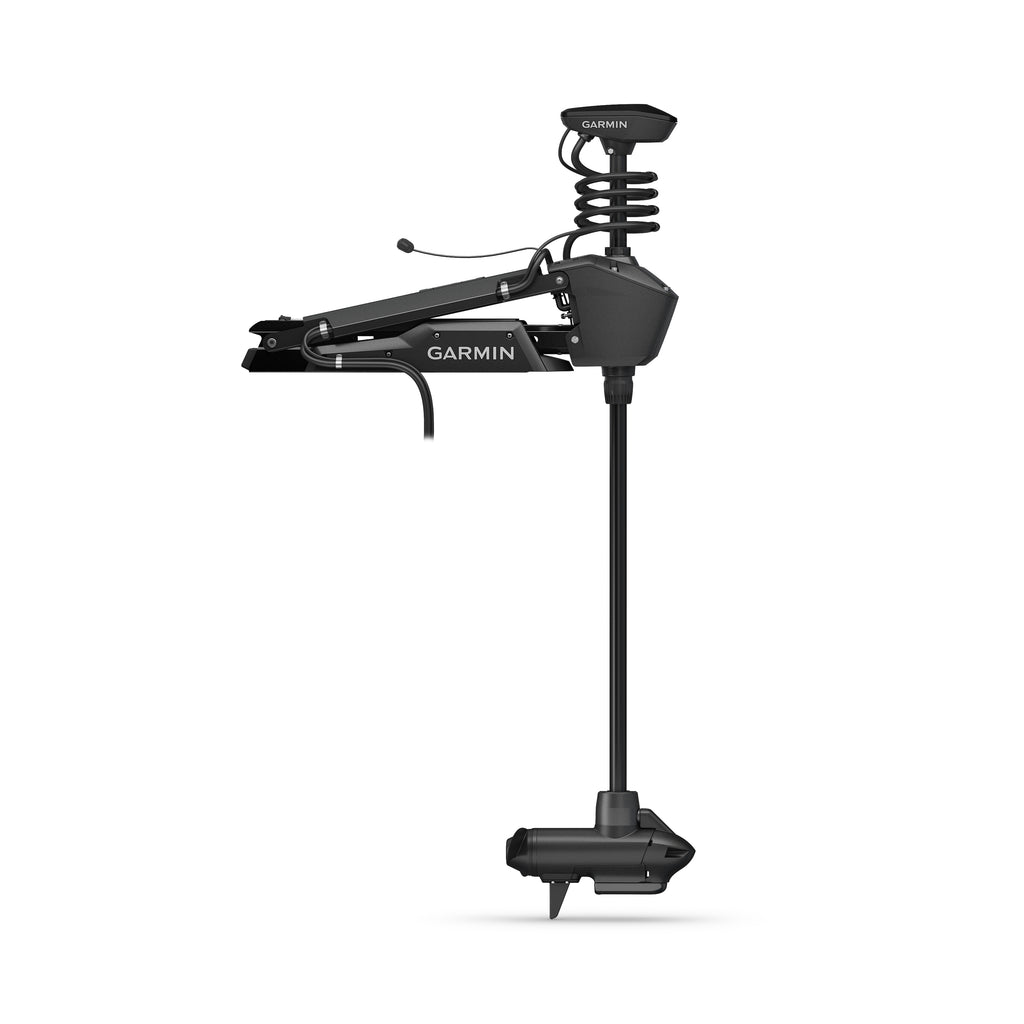

Garmin Force Trolling Motor 50" Shaft

Garmin Force Trolling Motor 50" Shaft

Garmin Force Trolling Motor

50" Shaft

Model: 010-02024-00

• With more power1 than its competition, it’s the most powerful trolling motor to get you on fish faster and counter the winds and current to stay on them


• Extremely quiet high-efficiency brushless motor operates at 36 V or 24 V to keep you on the water longer


• Simple chartplotter integration via wireless connection makes it easy to create routes to waypoints and to follow tracks


• Precise anchor lock holds your boat in the same location while you fish via integrated heading sensor and GPS


• Integrated high-wide CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars with nearly imperceitble sonar noise from interference


• Wireless foot pedal provides instant control and responsiveness; it feels and steers like a cable-steered pedal


• Handheld remote control features full-color, sunlight-readable transflective display and gesture steering for point-and-go navigation — and it floats


• Robust design is built for long-lasting quality and reliability; limited lifetime warranty on the shaft


• Quiet steering and overall operation

Fish with force using the 50" Force™ trolling motor. It’s the most powerful, most efficient trolling motor available yet still extremely quiet. Wireless chartplotter connectivity provides navigation, autopilot and anchor lock capabilities. Use the precise anchor lock to hold your boat in the same location while you fish. The Force motor also includes high-wide CHIRP traditional sonar and built-in Ultra High-Definition sonar that provides exceptionally clear images with nearly imperceptible sonar noise interference from the motor. The highly efficient brushless motor operates at either 36 V or 24 V to use less energy, so you can fish longer. It includes a wireless foot pedal that provides instant control and responsiveness — yet feels and steers like a cable-steered pedal. The handheld remote control allows you to navigate with simple point-and-go gesture steering.

Specifications
Trolling Motor SpecsShaft length50"For use inFresh and SaltwaterMounting locationBowMount styleScissor-style mountMax thrust100 lbs per ISO 13342 using high-efficiency propeller at 36 Vdc; 80 lbs per ISO 13342 using high-efficiency propeller at 24 VdcVoltage24 Vdc or 36 VdcElectric steeringYesLift-assistDual gas springsBuilt-in heading sensorYesBuilt-In GPSYes, high-sensitivity GPSWarranty3-year limited lifetime on shaftWater rating (components above water)IPX7Wireless remote includedYesFoot pedal includedYesBattery indicatorYesVariable speed controlYesSonar SpecsFrequencies supportedCHIRP sonarHigh wide CHIRP 150-240 kHzClearVüUltra-high definition 800 kHzSideVüUltra-high definition 1,200 kHz and 455 kHzPartial frequencies supportedCHIRP sonarHigh wide CHIRP 150-240 kHzClearVü800 kHzSideVü455 kHzTransmit power350 WMaximum depthCHIRP sonar800’ClearVü200’SideVü (1,200 kHz)125’ to each side; 250’ total at a max depth of 30'SideVü (455 kHz)500’ to each side; 1,000’ totalDepth/speed/temperatureDepth and temperatureNumber of pins12-pin (orange connector)Autopilot FeaturesYesRoute followingYesAnchor lockYesHeading holdYesCruise controlYesGesture featuresYes, manual+, heading hold+, jog+FOOT PEDAL SPECIFICATIONSDimensions12" L x 9" W x 4 1/2" HWireless communicationYesPower installation12 V wired or battery powered (2 AA)AA battery life1 full seasonWaterproof ratingIPX7Adjustable pedal resistanceYesREMOTE CONTROL SPECIFICATIONSDisplay size1.2" (30.4 mm) diameterDisplay resolution240 x 240 pixelsDisplay typeColor, sunlight-visible, transflective memory-in-pixel (MIP)Chartplotter userprogrammable keysYesAutopilot feature controlYesWater ratingIPX7Battery lifeTypical use with backlight at low — 43 weeksFloatsYesPACKAGING SPECIFICATIONSGift box dimensions (W x H x D):65.5" x 12.2" x 20.5" (166.3 x 31.0 x 52.0 cm)Gift box weight:90.0 lbs (40.8 kg)Master carton quantity:1
What's in the Box:

• Trolling motor, foot pedal, remote control, high-efficiency prop, assembly and mounting hardware and documentation
