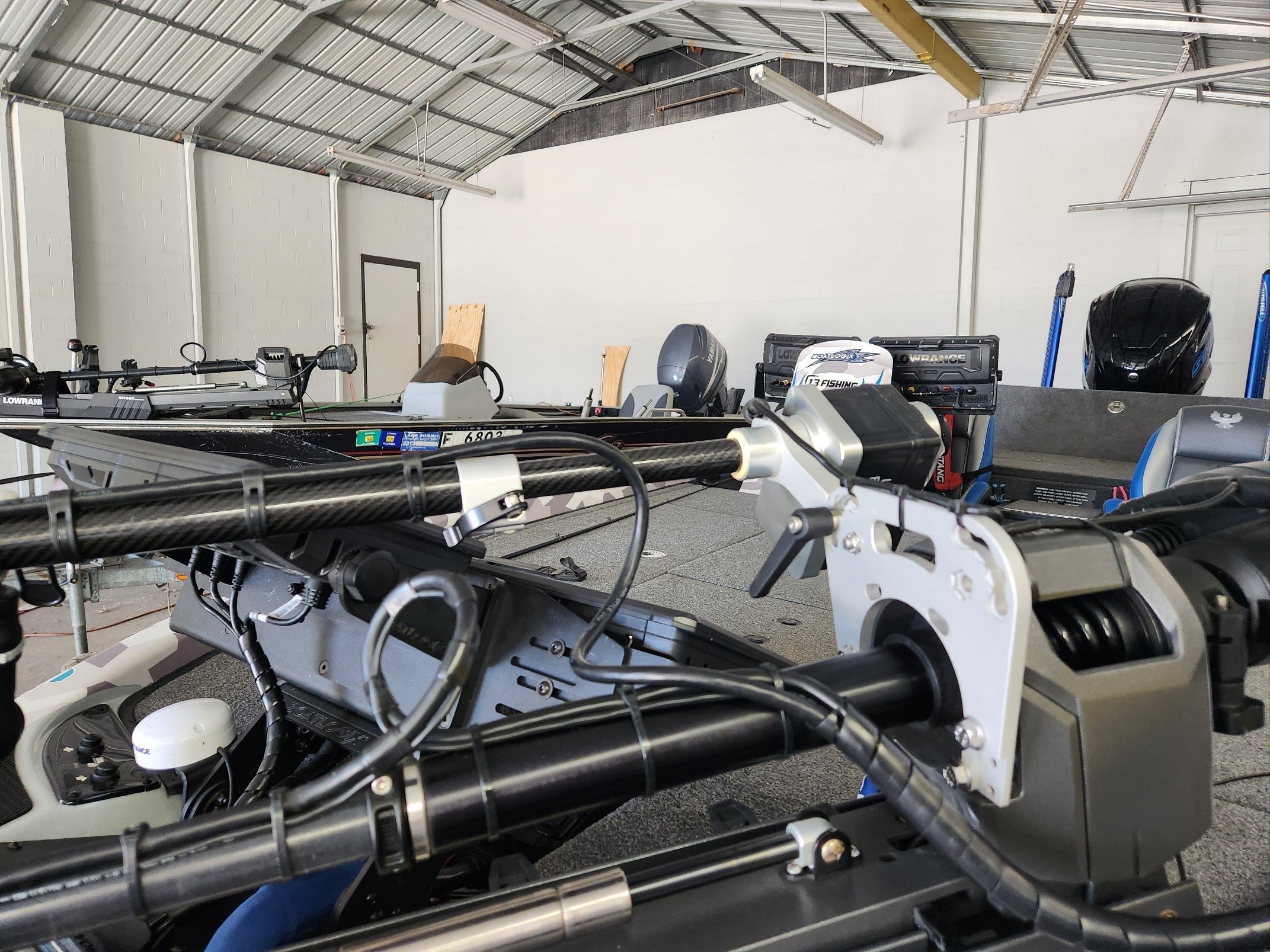

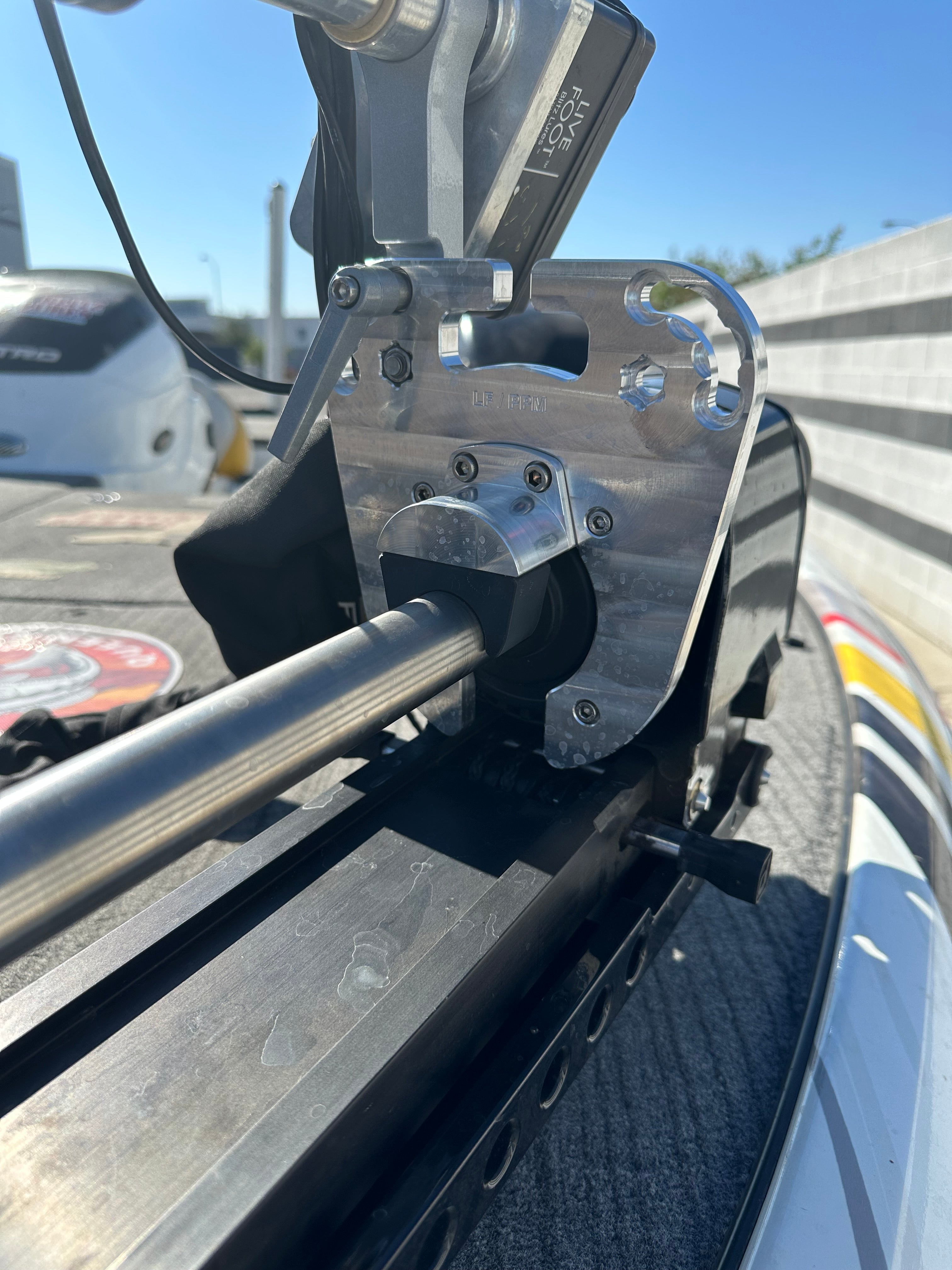

Blitz Lures is offering a new way to ensure you are locked on a school of fish with your fish finder. It is called the Live Foot™. This is a motorized transducer mount that you can mount to your existing MinnKota Ultrex, Lowrance Ghost or Garmin Force trolling motor. We also offer a MinnKota Quest option and a Power Pole Move ZR option.
THIS IS A 12 Volt SYSTEM! Please make sure you correctly provide a safe operating voltage of 10-15vlts to ensure proper functioning!
Please email LIVEFOOT@DD26Fishing.com for any questions or support
IT IS HIGHLEY RECOMMENDED TO USE THE DD26 ADJUSTABLE DOG BONE STABILIZER!!!!!!

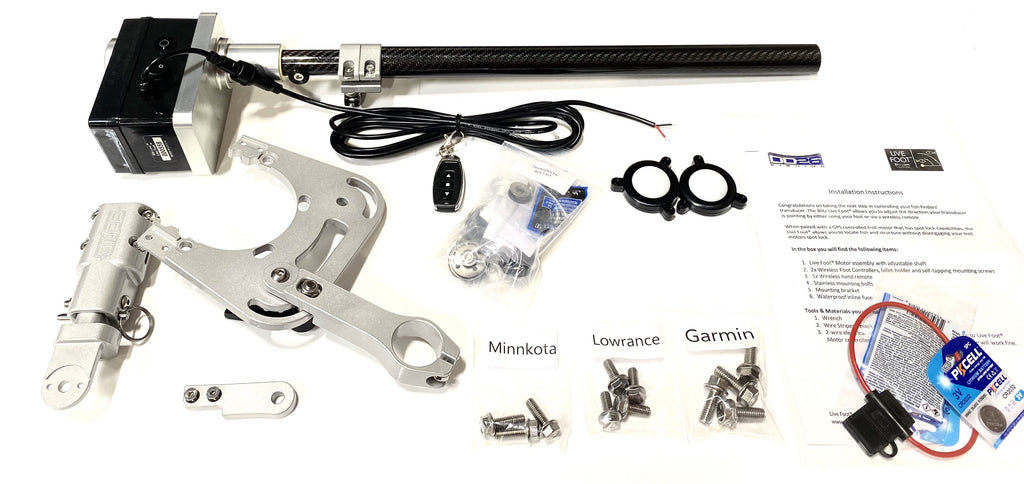

YOU ASKED WE UPGRADED, AGAIN!! NEW FEATURES INCLUDE:

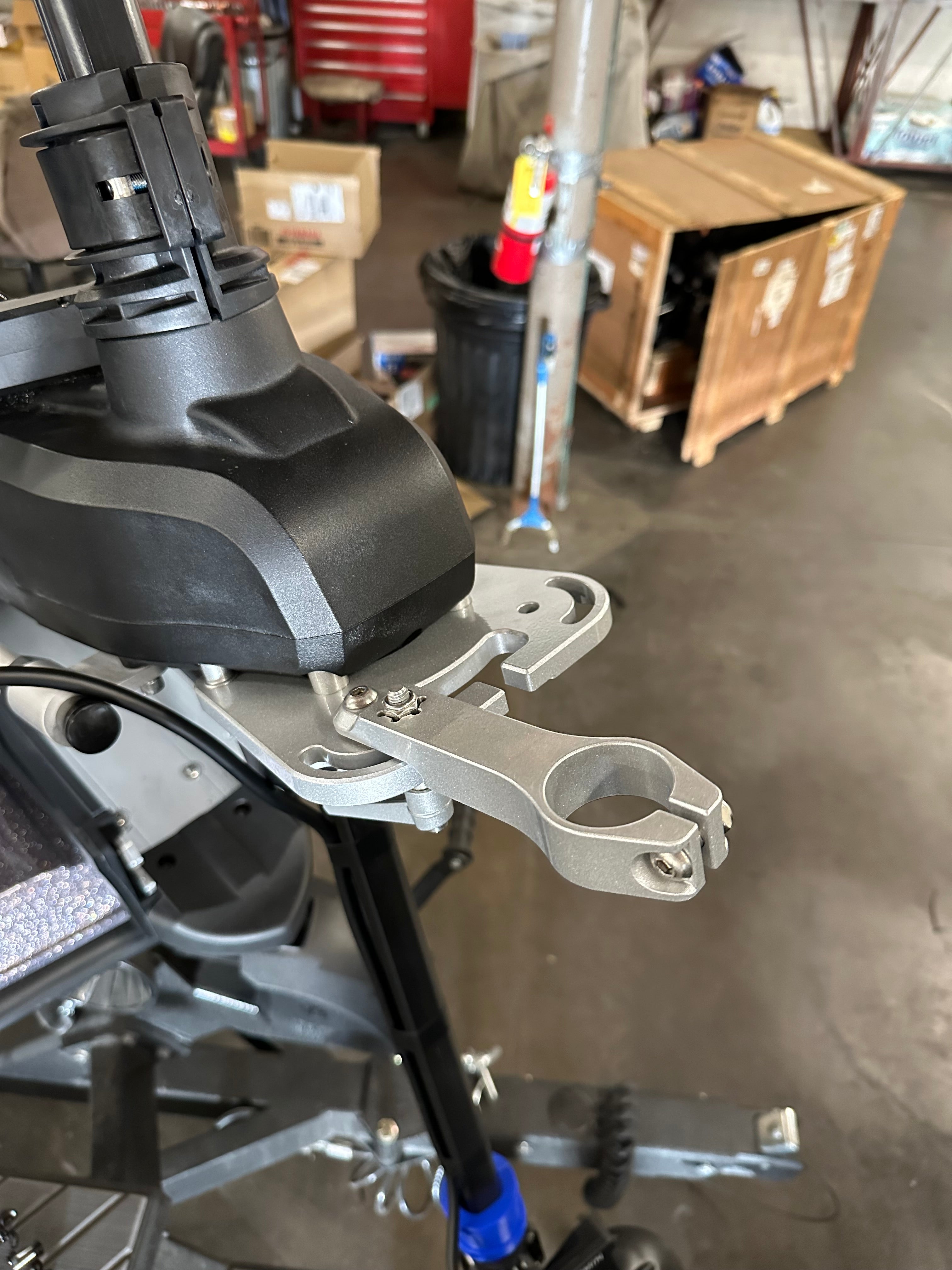

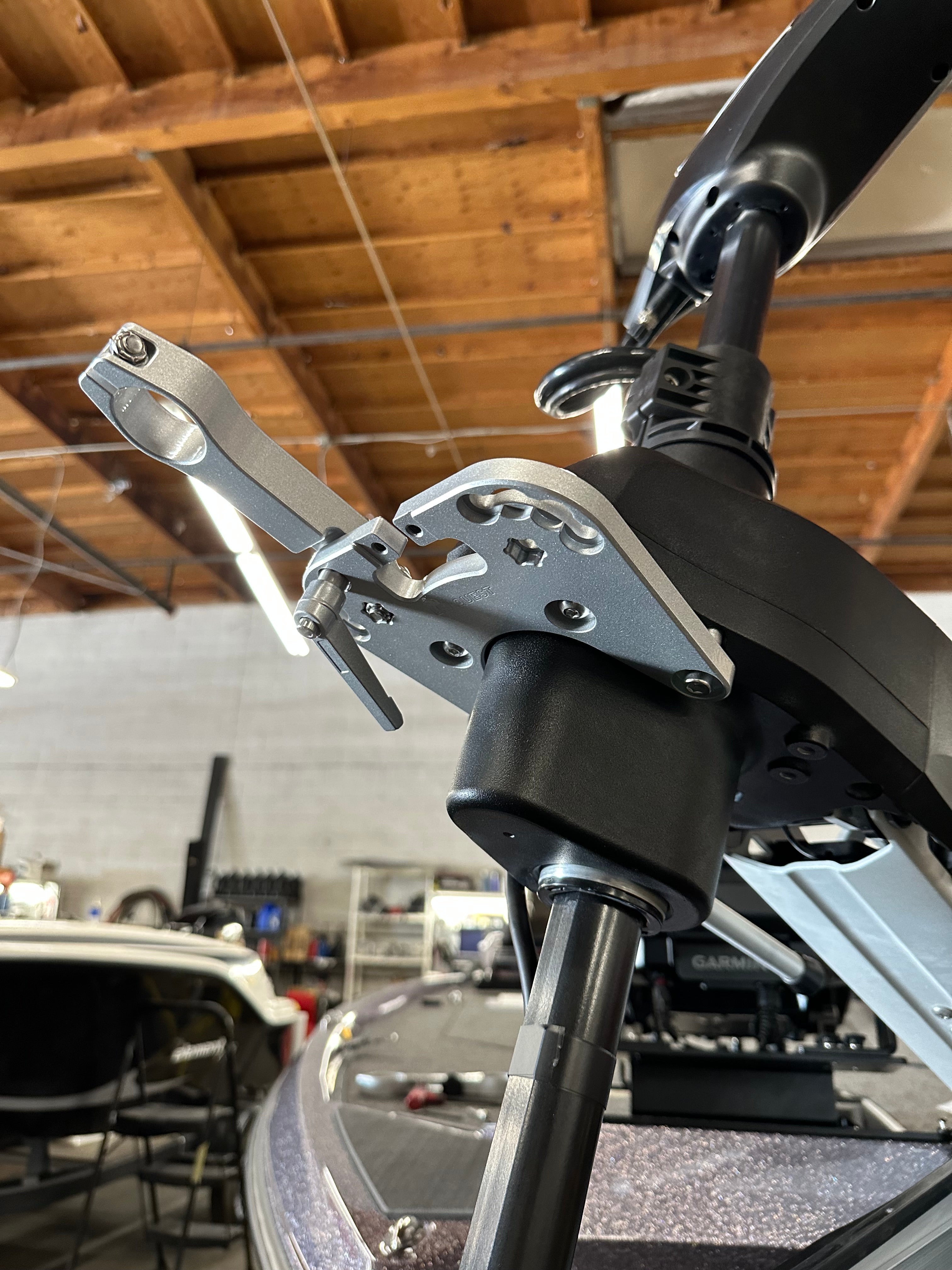

Adjustable Mounting Bracket fits Ultrex, Force and Ghost all with ONE bracket! There are separate SKU's for the Quest and for the Power Pole Move trolling motors. Be sure to select the proper one for your set up.
Adjustable Position Trolling Motor Mount with Option for HB360 (360 Arm Kit purchased separately)!
4 Position Mount that allows you to position the Live Foot where YOU want!
Carbon Fiber Shaft!

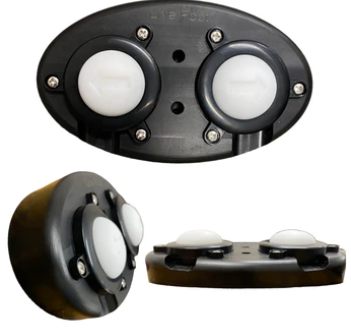

Water Proof Foot Switches and NEW Holder!

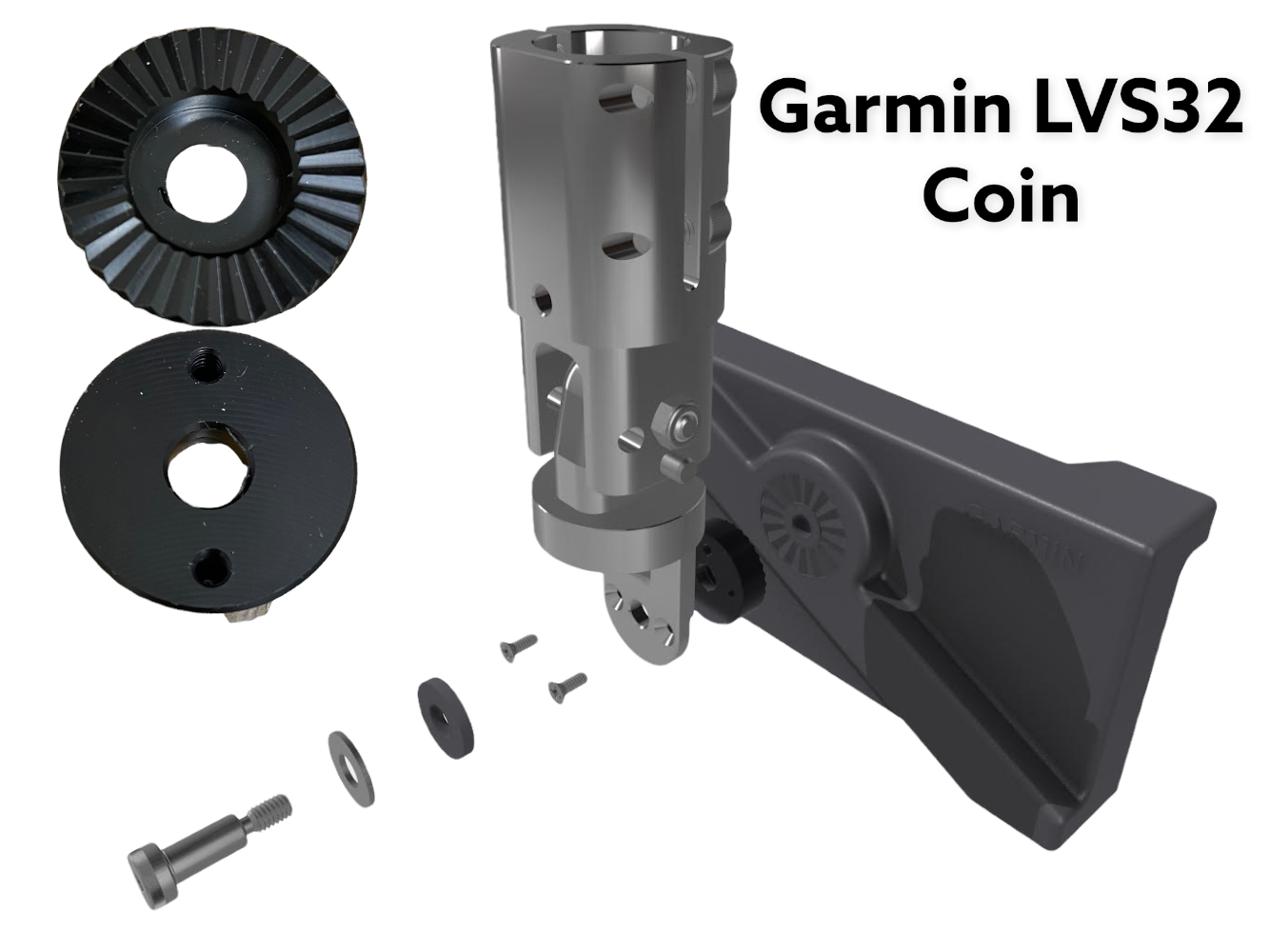

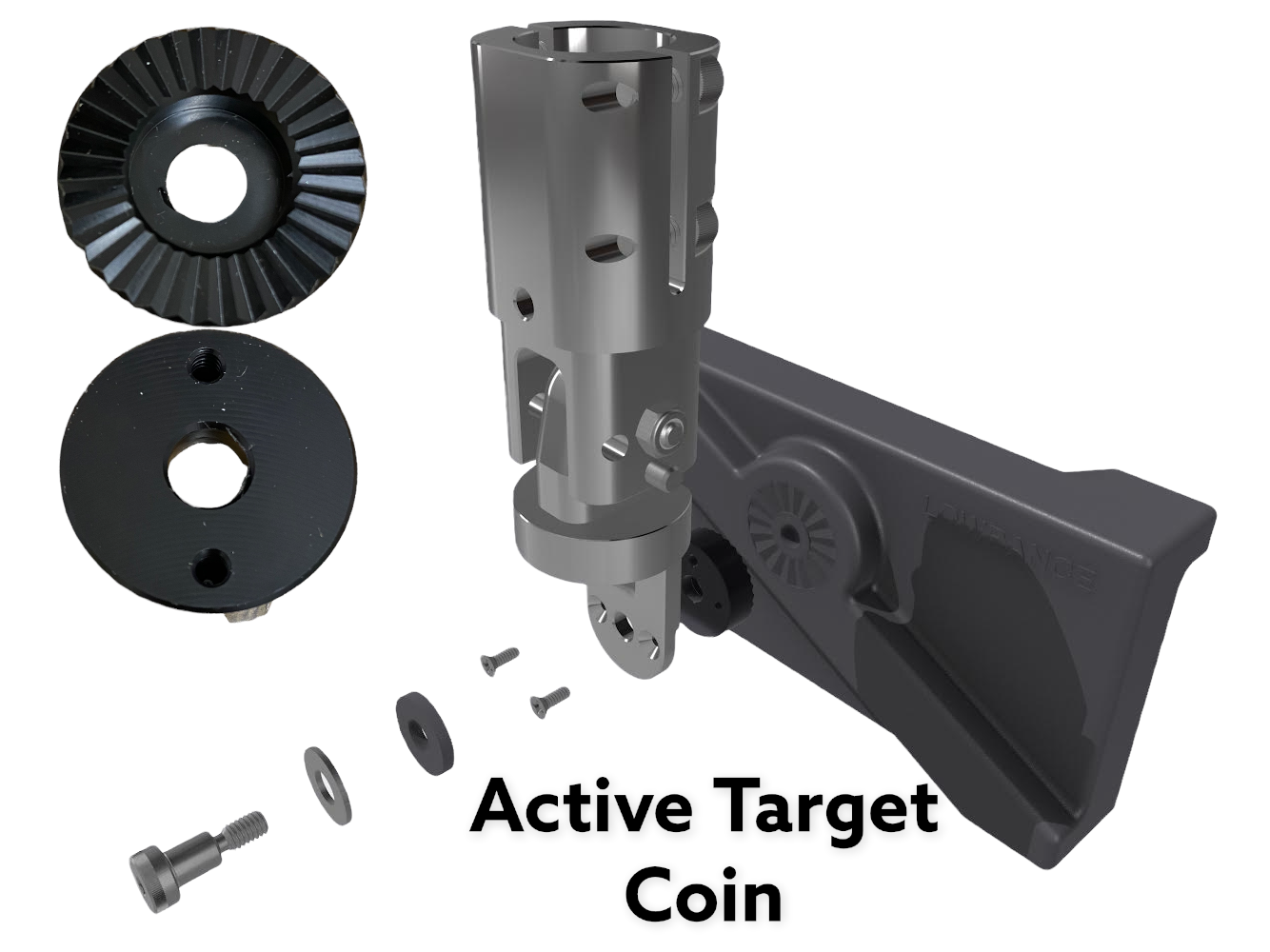

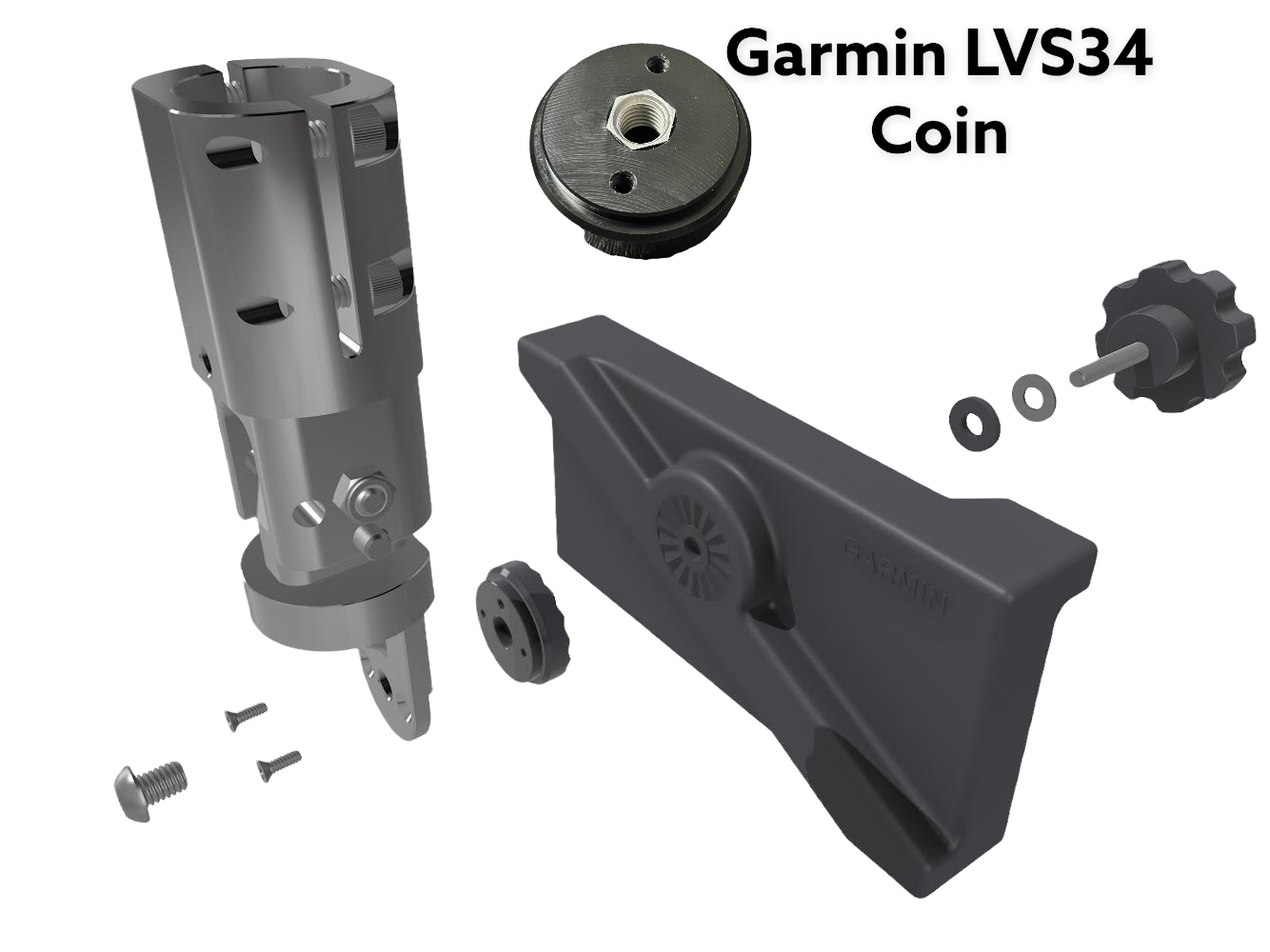

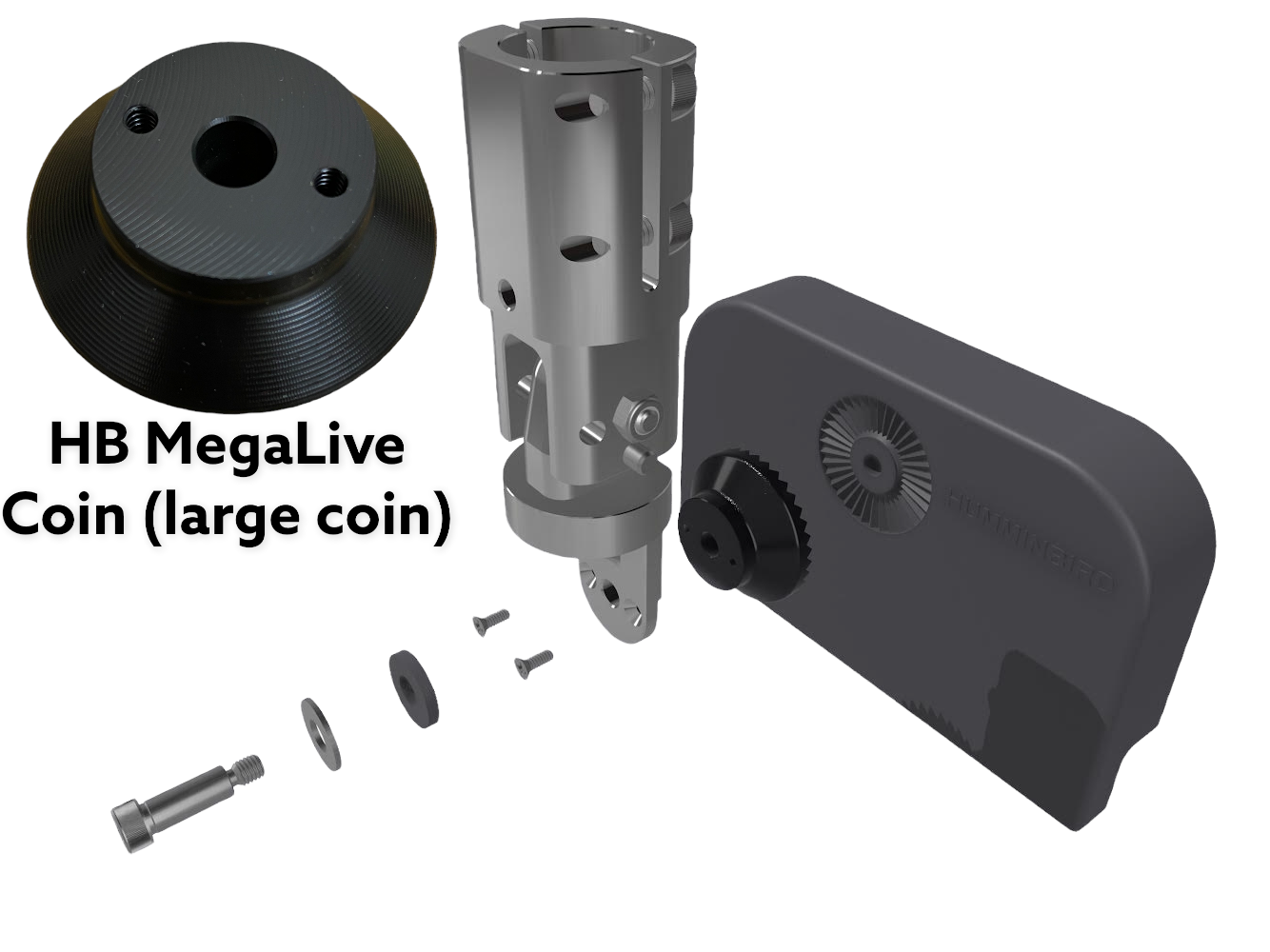

Comes with a DD26 Billet Transducer Mount that fits Mega Live, Garmin LVS32 & LVS34 and Lowrance Active Target transducers all in one rock solid mount!
DD26 Billet Aluminum Slider Bracket allowing easy length adjustment and as durable as it could possibly be!
Extended Power Cord!
Fully removable shaft!
ONLY WEIGHS 7LBS!
You have a 4 foot pole with a 2-3 pound $1200+ transducer hanging on it above your $2000+ graphs, BE SMART and get a DD26 Stabilizer Bracket and protect your equipment!
Comes with a DD26 Fishing Universal Billet Transducer Mount that fits Garmin LVS32 & LVS34, Lowrance Active Target and Humminbird Mega Live! This mount is unlike any other allowing quick transitions between Foward, Down and Scout/Perspective Modes! It only weighs 12 ounces yet built like a tank!!
DD26 Fishing is proud to support the distribution of this product including sales and customer service for Blitz Lures regarding the Live Foot™ products!
Keep your eye on the fish no matter what the conditions are!
Control your forward looking sonar while still allow your trolling motor to be on spot lock!
If you are using the 360 as well, please look for the HB360 Arm Kit and add that to your cart!
The key feature of this patented invention is the ability to control where your transducer is looking even when you have your trolling motor on spot lock or pointed in a different direction. You can do this with your foot via wireless remote foot switches or the key fab remote. This works great with your Garmin™ Panoptix, Humminbird Mega Live and Lowrance Active Target transducers.
The Live Foot™ runs off your 12 volt battery, drawing less than 1amp, and utilizes a high torque motor, ridged carbon fiber tubing, high grade aluminum mount with adjustable length. If you are running a specialized graph harness, it's suggested to wire the Live Foot directly to your power source separate from that harness to minimize any possible interference.
The mount will ship with a 18 inch to 19 inch main shaft and the extension shaft will be an additional 18 inches. This is measured from the mounting holes on bottom of the main body of the troll motor. Combined length using the DD26 Transducer Bracket can be up to 43" which give you clearance for your prop.
Wireless foot switches take 2 CR2032 Batteries each.
We highly recommend a stabilizer of some sort for the end of the turret shaft while in rough water or trailering. Intended for Fresh Water use!
Product comes with a 1 year warranty.
The Details and Performance are second to none! DD26 Fishing is a manufacture of aftermarket products. Mention of any other brand name is for aftermarket fitment purposes only. Use of product pictures is for descriptive fitment purposes of our products only. DD26 Fishing manufactured in house including the Blitz Lures Live Foot are not endorsed by or affiliated with Garmin, Lowrance, Power-Pole, Motorguide or MinnKota brands.
