Simrad NSS16 evo3s Combo MFD With C-Map US Enhanced Map

Simrad NSS16 evo3s Combo MFD With C-Map US Enhanced Map

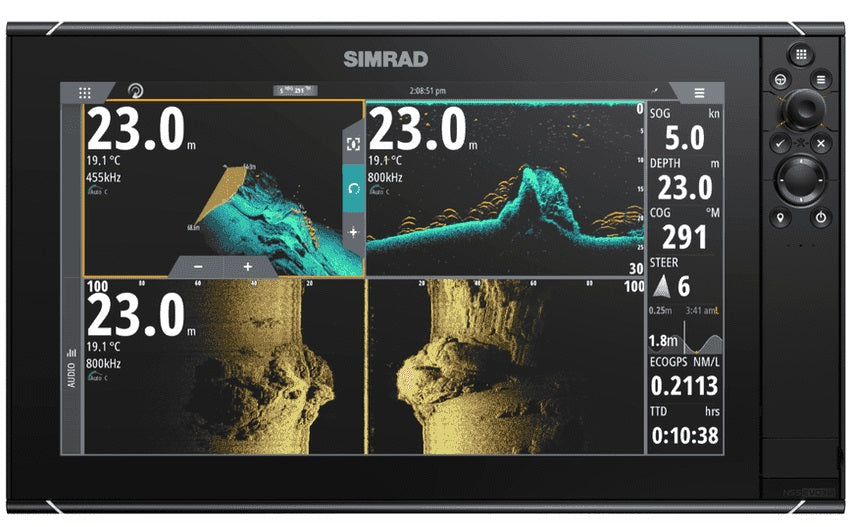

Simrad NSS evo3S 16in Display

Model: 000-15404-001

• High Resolution, High Bright, SolarMax IPS Displays


• Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions


• Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images


• Take another step forward with Simrad’s premium network modules for the ultimate offshore performance


• Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control


• Low profile glass dash styling


• Built in Wi-Fi connectivity


• Next Generation Processor


• SolarMAX IPS Display Technology


• Multi-touch screen and keypad hybrid control


• Built-in Advanced Echosounder

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved

Specifications
PhysicalDimensions437 x 256 x 98 mm (17.19 x 10.08 x 3.82") with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80")Weight4.65kg/10.25lbEnvironmentalOperating temperature range-15°C to +55°C (5° F to 131° F)Environment Shock Vibration100,000 cycles of 20GStorage temperature range-20°C to +60°C (4°F to 140°F)Water resitanceIPX6 and 7PowerSupply voltage10 - 31.2 V DCFuse rating7.5APower consumption (Max)40WDisplayDisplay backlight colorWhiteDisplay resolution1080 x 1920Display screen brightness1200 nitsDisplay size and typeHigh Visibility SolarMax HD® IPS 7" optically bonded TFTDisplay viewing angles80° top/bottom, 80° left/rightConnectivityEthernet2 x 5 pin yellow connector x 1 MbitBluetoothInternalNMEA2000 connectivity1 x NMEA 2000 Micro-C port, 1 LENNMEA 0183 connectivity1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)Video connectivity2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).WiFi connectivityInternalSonarSonar frequencies40-250kHz 455-800kHzSonar max depth3000’+ (tested with B175L)Sonar output power1kW RMSComplianceComplianceGPSGPSInternalGPS update rate10 HzGPS channels34GPS correctionWASS, EGNOS, MSAS, GLONASSGPS position accuracyHorizontal Accuracy 3 m (9.8 ft)GPS time to first fixCold start 50 sec, Satellite Reacquisition 5 sec
What's in the Box:

• NSS evo3S 16" Display


• Power Cable


• NSS16 EVO3 & ZEUS3 — 16 EDGE BEZELS


• NSS16 evo3 Sun cover


• NSS16 EVO3 & ZEUS3 - 16 DASH MOUNT KIT
