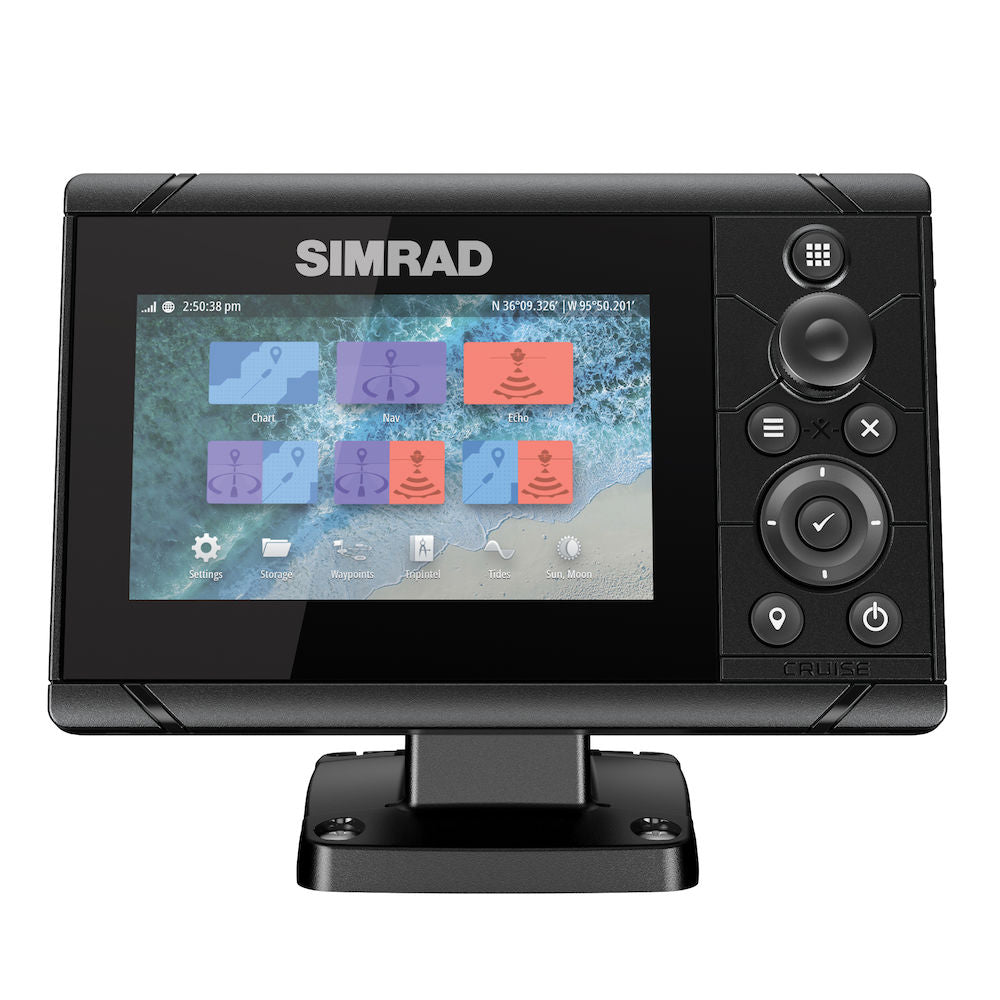

Simrad Cruise-5 Combo With US Coastal Charts and 83/200kHz Transom Mount

Simrad Cruise-5 Combo With US Coastal Charts and 83/200kHz Transom Mount

Simrad CRUISE 5 US COASTAL, 83/200 XDCR

Model: 000-14995-001

• Cruise confidently with simple menus plus easy-to-use rotary dial and keypad controls


• Always know where you are and where you are going with pre-loaded US Coastal map or worldwide basemap, plus C-MAP® and Navionics® upgrade options


• Keep important data in view with pre-seleced split screens


• Monitor depth readings, position, battery voltage and other critical boat information


• CHIRP sonar

The new Simrad Cruise is the most intuitive chartplotter available. Taking ease of use to a new level, Simrad Cruise is a chartplotter first and depth finder second — offering reliable GPS navigation at an affordable price. Free from complicated fishing-specific sonar and networking features, with Simrad Cruise you won’t need to master complex electronics -- simply turn on your display and go.

Pre-loaded with U.S. coastal charts and a worldwide basemap, the sunlight viewable display comes with a mounting bracket and transducer. Installation is easy, requiring only a power and sonar cable — eliminating the hassles of networking multiple modules and pulling miles of cable. The user interface is controlled with a rotary dial and keypad, ensuring smooth navigation through menus and provides the vital information needed for a safe and enjoyable time on the water — speed, depth, GPS location, course, battery level and temperature information. The included CHIRP Sonar transducer provides excellent automatic depth tracking for worry-free operation without the need for fine tuning or pre-programming. Pre-selected display views consist of: chart, sonar, navigation, chart/sonar, chart/navigation and sonar/navigation.

Available in 5-, 7- and 9-inch versions, Simrad Cruise can be dash-mounted or bracket-mounted to fit any boat’s helm station. Take your charts to the next level with a wide selection from C-MAP® and Navionics® for increased level of detail and C-MAP® Easy Routing. The display is ideal for installation in open air vessels such as bay, deck, ski and wakeboard boats, bow riders and tenders.

1

Specifications
ConnectivityNMEA 0183 Sentences supportedNoBluetoothNoneEthernetNoneN2K PGNsN/ANMEA 0183NoneNMEA 2000NonePC ConnectivityNoneVideoNoneWiFiNoneDisplayBacklight ColorWhiteResolution800x480Screen Brightness800 nitsViewing Angles70° top/bottom, 70° left/rightElectricalPower Consumption, max.12.2 WRecommended Fuse Rating3ASupply Voltage10 - 17 V DCEnvironmentOperating Temperature Range-15°C to +55°C (5° F to 131° F)Waterproof ratingIPX 6 and 7MFDAISN/AAutopilotN/ACartography includedC-MAPDigital SwitchingN/AExternal Storage1 Micro SD slot, max. 32GB each. >32 GB format to NTFSGPSInternal, 10Hz, WASS, MSAS, EGNOSMultimediaN/ARadar (inc. compatibility)N/ASonar (inc. compatibility)Integrated CHIRP. 9 Pin push fit connectorWeatherN/AWaypoints, Routes, Tracks4000 waypoints, 200 Routes with 100 max route points, 50 tracks with up to 12,000 track points.PhysicalDimensions (W x H x D)184.5 mm x 142.3 x 117.9 mm (7.26" x 5.6" x 4.64") (with bracket)Mounting TypeBracket or PanelOtherWarranty Period2 YearsInterfaceDirectional cursor button and rotary knob
What's in the Box:

• Cruise 5


• Power Cable


• Bracket


• Skimmer transducer 83/200kHz
