Description

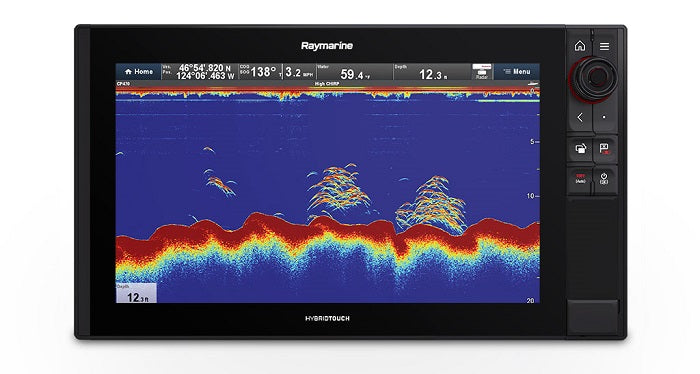

Raymarine Axiom Pro 16S MFD No Transducer Navionics Plus North America
Raymarine Axiom Pro 16S 15.6" MFD With Single Channel CHIRP and Navionics Plus North America Charts
Model: E70483-00-NAG- High CHIRP
- NMEA2000 & NMEA0183
- Sonar Scroll Back
- HybridTouch™
- Quad Core Processor
- Optical Bonding Technology & IPS Displays
- IP & Analog Video
- Clear Cruise™
- Quantum CHIRP, HD & SHD
- NMEA2000 & NMEA0183
Display Size15.6" IPS Optically Bonded LCD Display Resolution1920 x 1080 FHD Display TypeMultitouch Brightness1,200 nits Viewing AngleDegrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) MountingTop, Front, and optional RAM ball mount adapter Waterproof RatingIPX6 / IPX7 Operating Tempminus 13deg F to 131deg F (-25deg C to +55deg C) Storage Tempminus 22deg F to 158deg F (-30deg C to +70deg C) Sensors Sonar Type - Built-inHigh CHIRP Sonar Connections25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. Sonar DepthCHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m) External SonarYes - CP100, CP200, CP370, CP470, CP570 via RayNet RadarYes - Quantum, Digital, HD Color and Super HD Color Radars AISYes - N2K compatible GNSS / GPSBuilt-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) Autopilot ControlYes - Evolution Autopilot Thermal Night VisionYes - IP or Analogue Video / Camera1 x Analogue input (BNC) Up to 10 IP Cameras WeatherGRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only AudioN2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] Digital SwitchingYes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] Remote ControlRMK-10 (A80438) & RCU-3 (E62351) Networking Ethernet2 x 10/100/1000 Mbits/ Network (RayNet) NMEA01831 Transmit / 2 Receive NMEA20001 x NMEA2000 port (DeviceNet microC) SeaTalkNGRequires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) USB1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) Wi-FiWiFi - 802.11 a / b / g / n BlueToothBluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] Navigation CartographyLighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] Waypoint/Routes/Tracks (Wpts/Rts/Trk)10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts MEMORY Internal16GB Solid State 16GB Solid State2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) Input Voltage12V and 24V DC (8 V to 32 DC) Input Draw ~45W Dimensions17.8" x 10.2" x2.72" (452 x 258 x 69 mm)
What's in the Box:
- Axiom Pro 16S
- Trim Kit
- Suncover
- Trunnion Kit
- PWR/VIDEO/NMEA0183 CBL, STRT 1.5M
- Mounting Hardware
- Mounting Template
- Quick Start Guide
- Warranty Card
- Raymarine window decal
- Navionics Plus North America Charts
