Humminbird XTM-9-HW-MSI-150-T Transducer W/Temp

Humminbird XTM-9-HW-MSI-150-T Transducer W/Temp

Humminbird XTM-9-HW-MSI-150-T

Model: 710298-1

• This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA SI GPS G3, HELIX 7 CHIRP MEGA SI GPS G3N.


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)


• MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 480ft (146m), MEGA SI: 1075-1150 kHz - 250ft (76m)


• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 125ft (38m), MEGA DI: 1075-1150 kHz - 75ft (23m)

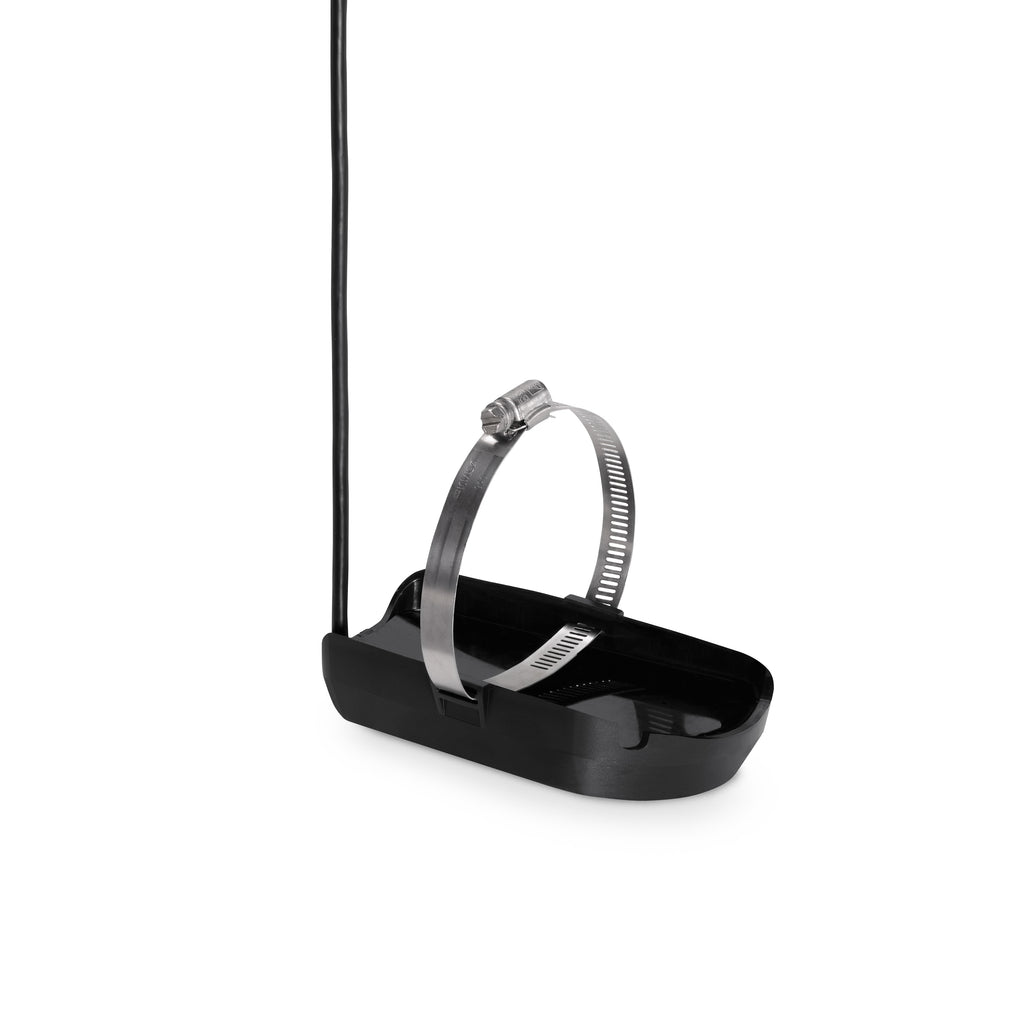

MEGA Side Imaging Trolling Motor Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.

Specifications
Mount TypeTrolling MotorSonar TypeMEGA Imaging, Dual SpectrumCurrent ModelsHELIX 7, HELIX 8
