Humminbird XTM-14-HW-MDI-T Transducer W/Temp

Humminbird XTM-14-HW-MDI-T Transducer W/Temp

Humminbird XTM-14-HW-MDI-T

Model: 710291-1

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2.


• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz


• Dual Spectrum CHIRP Max Depth: 1200ft (365m)


• MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

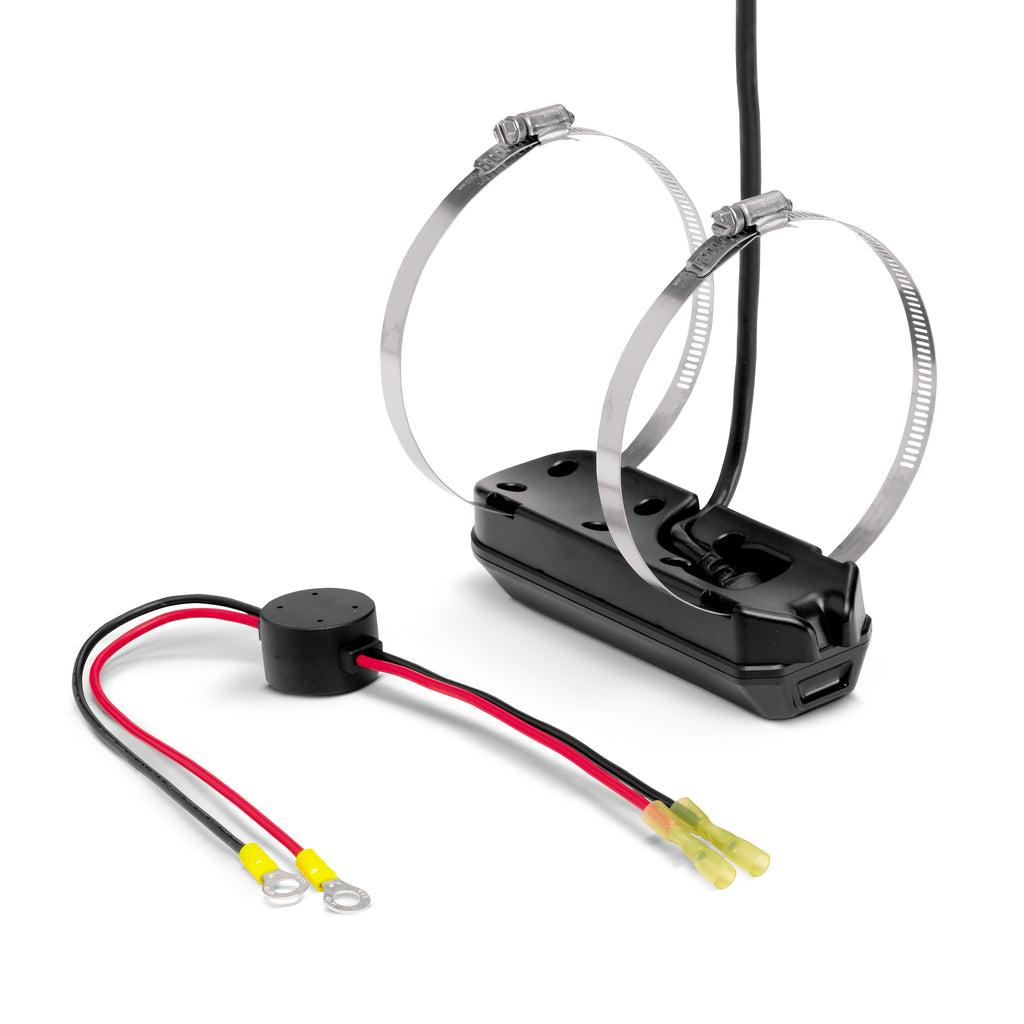

MEGA Down Imaging+ Trolling Motor Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, trolling motor mounting hardware and 20’ cable.

Specifications
Mount TypeTrolling MotorSonar TypeMEGA Imaging, Dual SpectrumCurrent ModelsSOLIX 10, SOLIX 12, SOLIX 15
